4-5.2.4 Cylinder and Valve Installation Diagrams

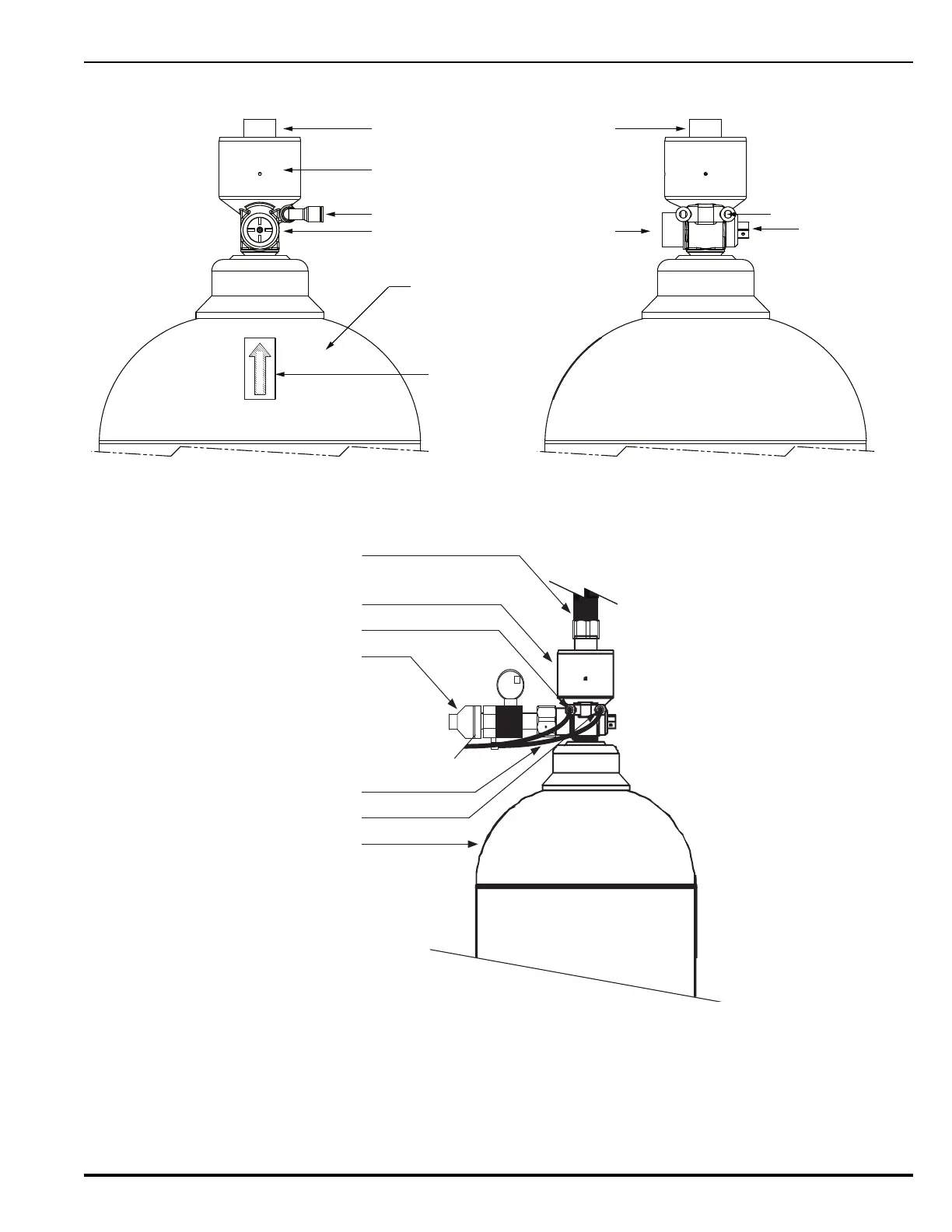

Figure 4-8. Cylinder Components
Figure 4-9. Typical Primary Cylinder/Valve Assembly (Rear View)
Safety Burst Disc Vent
Discharge Outlet
Actuation Hose Connections
Discharge Outlet
Actuation Hose Connections
Valve
Cylinder
Gauge PortGauge Port
GAUGE PORT
Side View Rear View
Gauge Port Indictator
Used to locate Gauge
Port when Transport
Cap is installed.
Discharge Hose
Valve
Release Unit
Actuation Hose
Cylinder
Release Outlet
Release Inlet
