Kidde IG-55 - Back-Plate Manifold Hose; Back-Plate Manifold Spare Solenoids

Component Descriptions
April 2020 2-20 06-237619-001
2-5.1.2 Back-Plate Manifold Hose
Use the hose (P/N 01-3273-1200) to connect the solenoid to the selector valves.

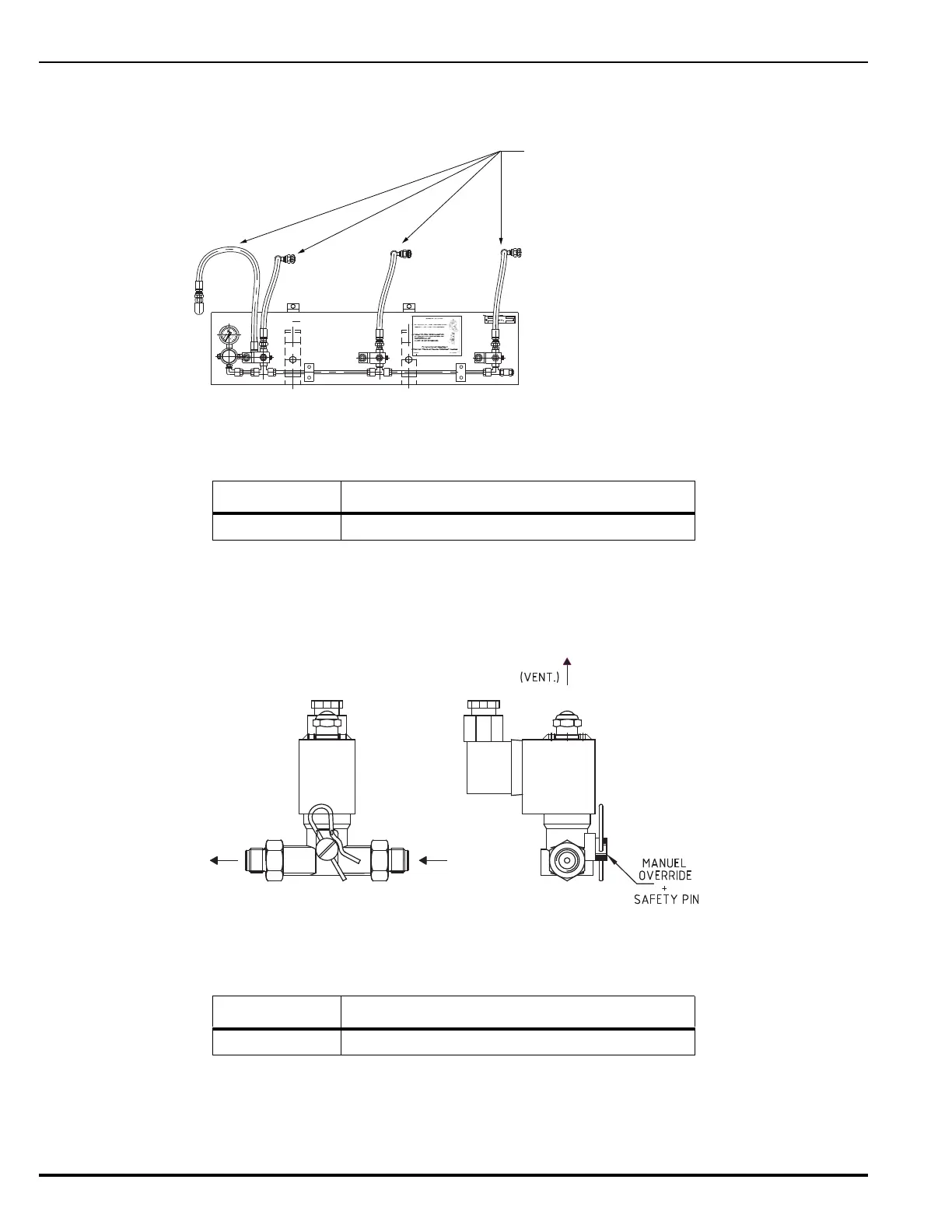

Figure 2-25. Back-Plate Manifold Hose
2-5.1.3 Back-Plate Manifold Spare Solenoids
If necessary, the solenoids on the back-plate manifold can be replaced using the spare solenoid
P/N: 38-350800-001.
Figure 2-26. Back-Plate Manifold Spare Solenoid
Table 2-15. Kidde Fire Protection IGS Back-Plate Manifold Hose Part Numbers
Part Number Description
01-3273-1200 Back-Plate Manifold Hose
Table 2-16. Kidde Fire Protection IGS Back-Plate Manifold Spare Solenoid Part Numbers
Part Number Description
38-350800-001 Back-Plate Manifold Spare Solenoid
-Kerr
Back-Plate Manifold Hose
(P/N 01-3273-1200)
Note: One hose is included
with Back-Plate Manifold
