2-4.10 Main and Reserve Nameplates

The main and reserve nameplates, Part Nos. WK-310330-000 and WK-310340-000 respective-

ly (Figure 2-21), are used to identify the primary and backup agent cylinders.

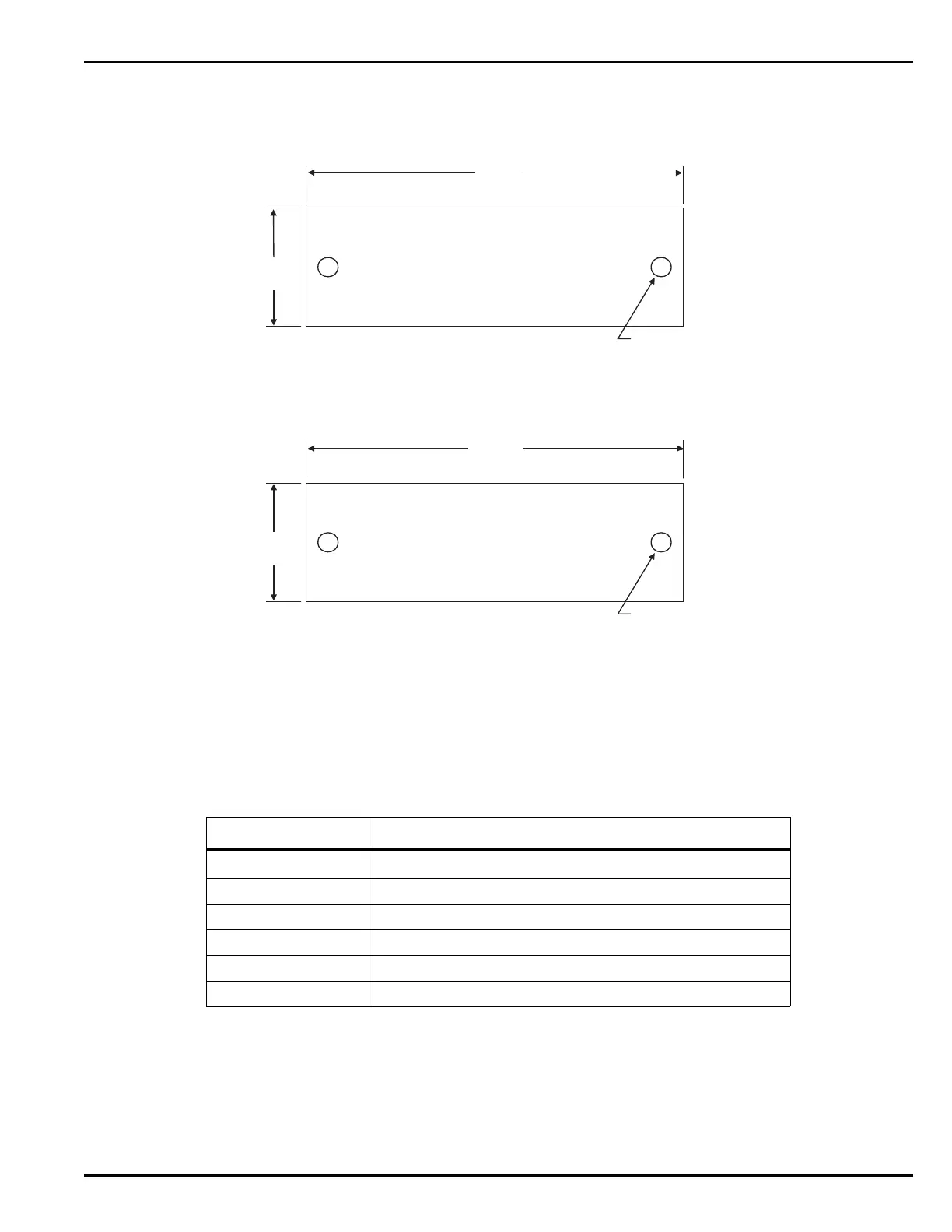

Figure 2-21. Main and Reserve Nameplates

2-4.11 Caution Signs

There are two warning signs available for use with Kidde IGS systems, a caution sign used for

entrances to the protected area, and one for the exits from the protected area.

Table 2-11. Kidde IGS Discharge Accessories Part Numbers

Part Number Description

01-2173-0200 Caution Sign - Evacuate on Alarm Sound (BS Compliant)

01-2172-0200 Caution Sign - Vent Keep Clear

K4076-2 Caution Sign - Entrance Inert System (BS Compliant)

K4076-1 Caution Sign - Manual Actuation Point (BS Compliant)

85-909300-001 Caution Label - Entrance

85-909300-002 Caution Label - Exit

RESERVE

MAIN

(2) 9/32 in. (7 mm) DIA

MOUNTING HOLES

5 in.

(127 mm)

1-5/8 in.
