Installation
April 2020 4-22 06-237619-001
4-7 INSTALLATION OF HOSES
Ensure that hoses are correctly installed and do not exceed the maximum bend radius.

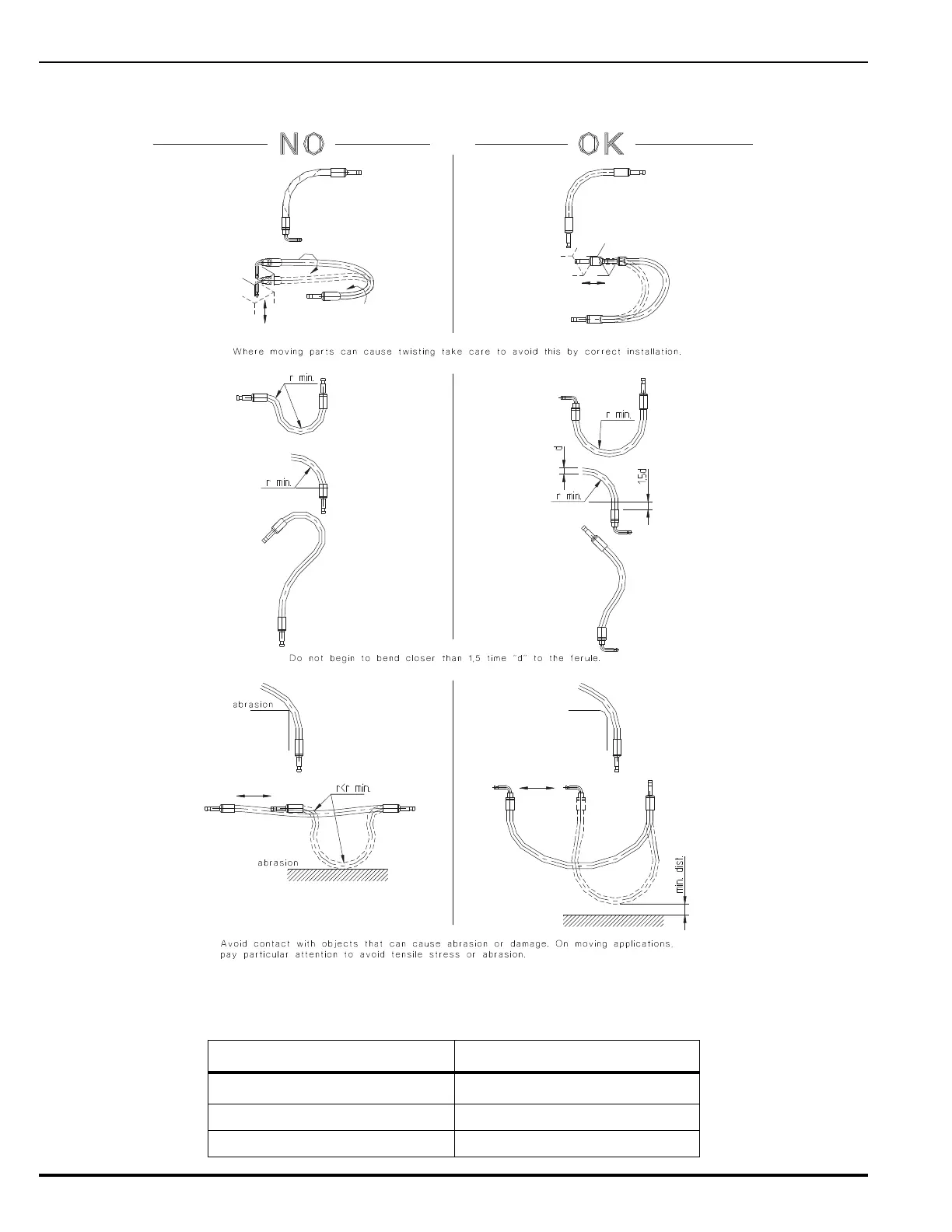

Figure 4-20. Hose Installation
Table 4-10. Minimum Hose Bend Radius
Hose Minimum Bend Radius
Stainless Steel Actuation Hose 2.99” (76mm)
Discharge Hose 9.6” (240mm)
Backplate Manifold Rubber Hose 3.9” (100mm)
