2-11.4 Center Wooden Spacer
Use center wooden spacers between rows on multi-row cylinder banks.

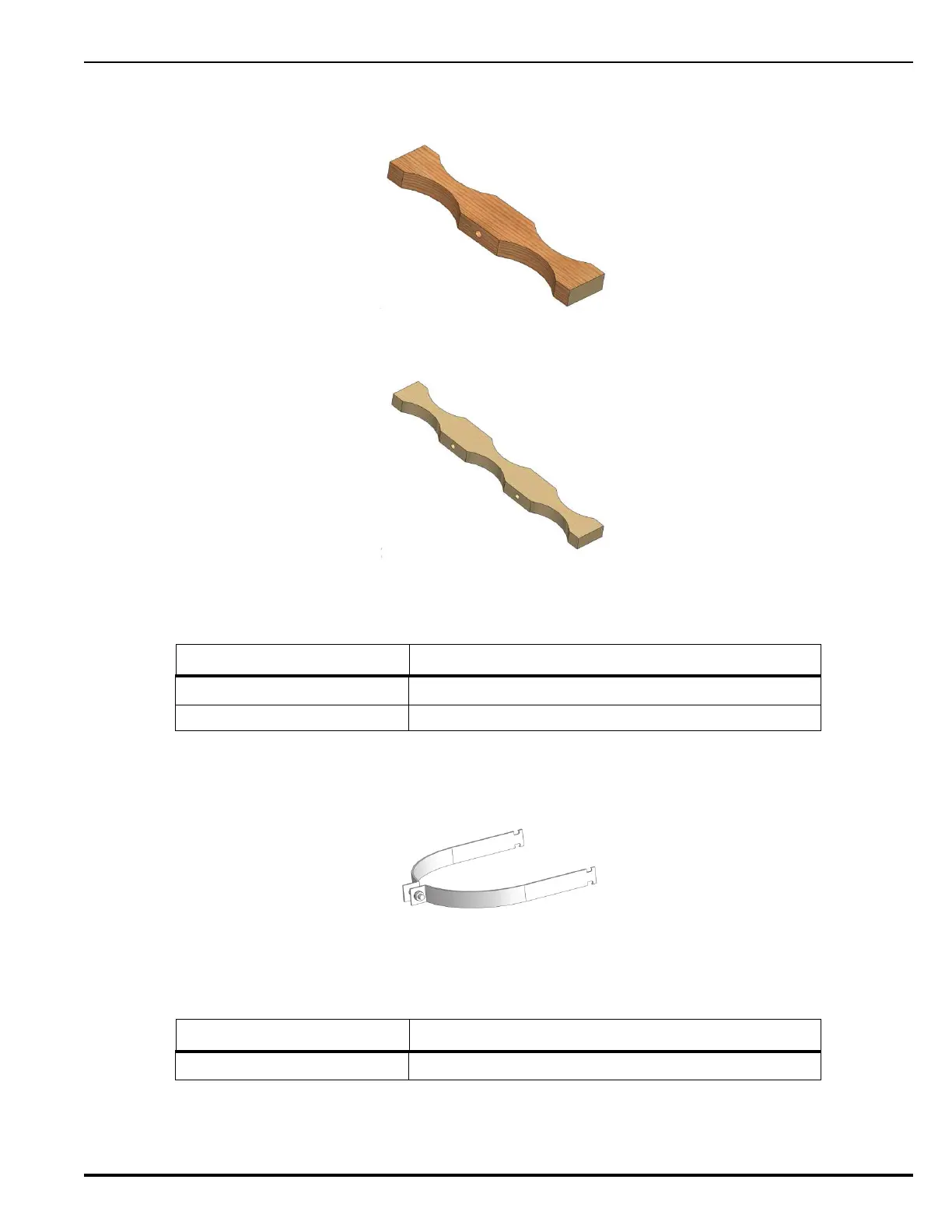

Figure 2-47. 2x2 Cylinder Center Wooden Spacer
Figure 2-48. 2x3 Cylinder Center Wooden Spacer
2-11.5 Single Cylinder Clamping Bracket
Use the single cylinder clamping bracket when using a single row of cylinders.
Figure 2-49. Single Cylinder Clamping Bracket
Table 2-33. Kidde IGS Center Wooden Spacer Part Numbers
Part Number Description
03-8164-0000 Wooden Spacer 2 x 2 for 80 L Cyl (Center)
03-8165-0000 Wooden Spacer 2 x 3 for 80 L Cyl (Center)
Table 2-34. Kidde IGS Single Cylinder Clamping Bracket Part Numbers
Part Number Description
01-8131-0000 Single Clamp 80L Cyl Galvanized Steel
