Component Descriptions
06-237619-001 2-19 April 2020
2-5.1 Back-Plate Manifold
Use the back-plate manifold in systems using selector valves to provide pressure to the needed
selector valve. The back-plate manifold provides a pressure regulator valve so that manifold
pressure can be used to operate selector valve. The backplate manifold includes solenoids to
control which selector valve will receive pressure. The backplate manifold includes one Back-
Plate Manifold Hose (P/N 01-3273-1200) used to connect the back-plate manifold to the agent
manifold.
Note: The solenoid on the back-plate manifold leading to the hazard being protected by the
discharge must be continuously powered during the system discharge.

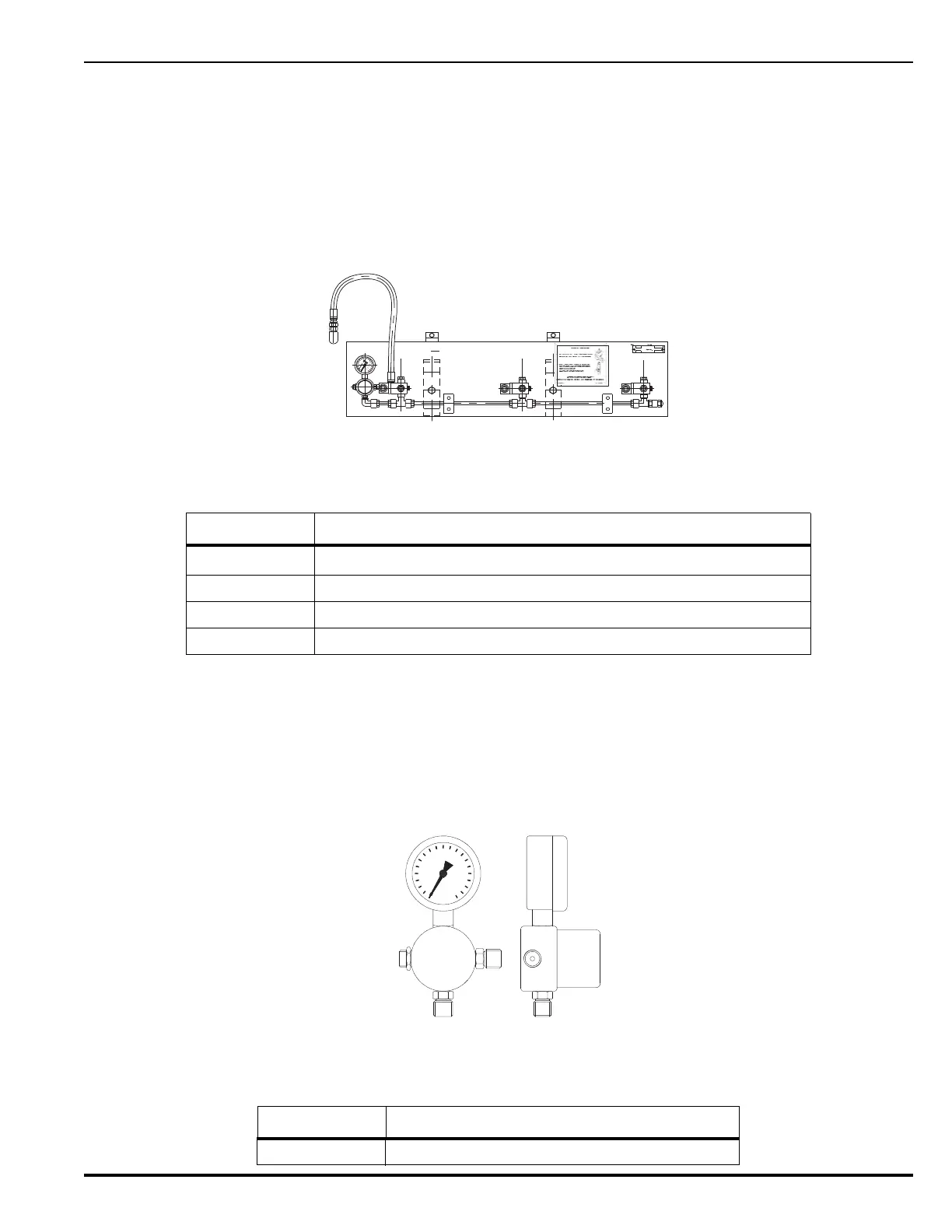

Figure 2-23. 3 Area Back-Plate Manifold
2-5.1.1 Pressure Regulator
The pressure regulator (P/N 01-6017-0000) reduces the incoming pressure from an agent
cylinder down to the 8 Bar needed to operate the selector valves. The regulator is included with
the back-plate manifold, but may be ordered separately if needed.
The pressure regulator is also used with the discharge delay setup. The regulator reduces the
pressure coming from the discharge delay to 8 bar for proper activation of the cylinder valve.
Figure 2-24. Pressure Regulator
Table 2-13. Kidde Fire Protection IGS Back-Plate Manifold Part Numbers
Part Number Description
01-3508-0002 Back-Plate Manifold - 2 Area, Selector/Divertor Valve Control, 8 Bar
01-3508-0003 Back-Plate Manifold - 3 Area, Selector/Divertor Valve Control, 8 Bar
01-3508-0004 Back-Plate Manifold - 4 Area, Selector/Divertor Valve Control, 8 Bar
01-3508-0005 Back-Plate Manifold - 5 Area, Selector/Divertor Valve Control, 8 Bar
Table 2-14. Kidde Fire Protection IGS Pressure Regulator Part Numbers
Part Number Description
01-6017-0000 Pressure Regulator
