Installation
06-237619-001 4-19 April 2020
4-6.8 Installing Slave Cylinder Gauge Assembly
Follow these steps to install the slave cylinder gauge assembly:
1. Make sure the O-ring in the connecting swivel of the slave cylinder gauge assembly is in
place and properly lubricated. If lubrication is missing, use silicone spray (Würth Art no:
0893221 or similar).
2. Installing slave cylinder gauge assemblies as indicated on the bank assembly drawing. Ap-
ply a torque of 33.2 ± 0.75 ft lbf (45 ± 1N-m). A counter hold may be required.
3. Leak test all connections on the slave cylinder gauge assembly by means of ammonium-
free leak detection liquid or spray, ensuring that there is no leakage.
Note: The pre-assembled unit shall not be tampered with, as any adjustment to components
pre-fitted to the connector block will lead to a leak.

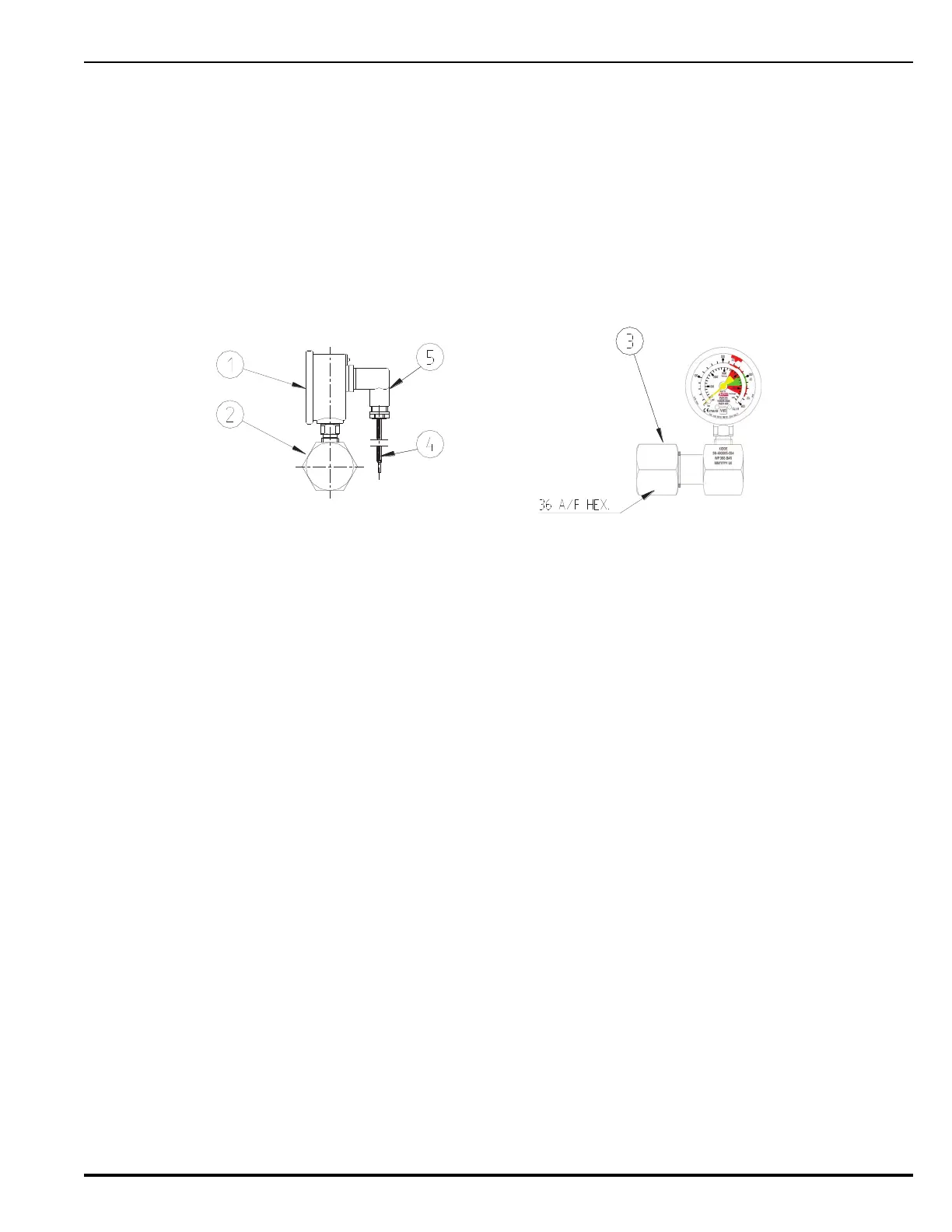

Figure 4-17. Contacts for Pressure Gauge
Key:
(1) Contact pressure gauge (2) Connection block (3) Connecting swivel
(4) two core cable with quick connect cable joiner
(5)
Connector for contact gauge
