Installation
April 2020 4-44 06-237619-001

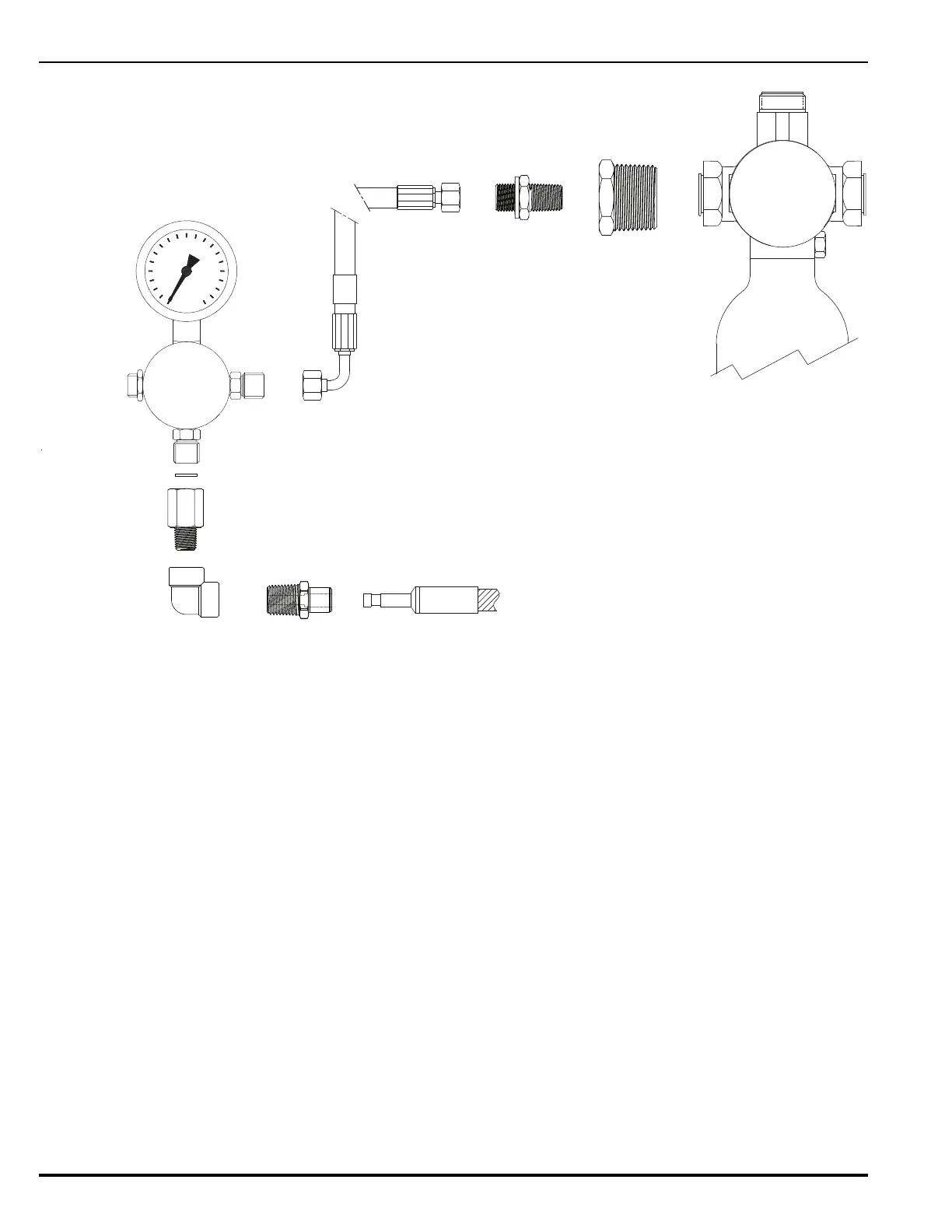

Figure 4-34. Discharge Delay and Pressure Regulator with Adapters and Hoses
Note: Image not to scale.
Discharge Delay
3/4” Male x 1/4” NPT Female
Bushing Adapter
1/4” BSPP Male x NPT Male
Straight Adapter
Back-Plate Manifold Hose
P/N 01-3273-1200
Pressure Regulator
Copper Washer
1/4” BSPP Female x NPT Male
Straight Adapter
1/4” NPT Female
90° Elbow Connector
Actuation Hose
P/N 38-401110-X00
or 38-401130-X00
1/4” NPT Male
x 6mm Tube OD
Adapter
Outlet Inlet
