TERRA 4K Operation Manual（KineOS 6.2）
©2019 Kinefinity Inc. Page 45 / 60

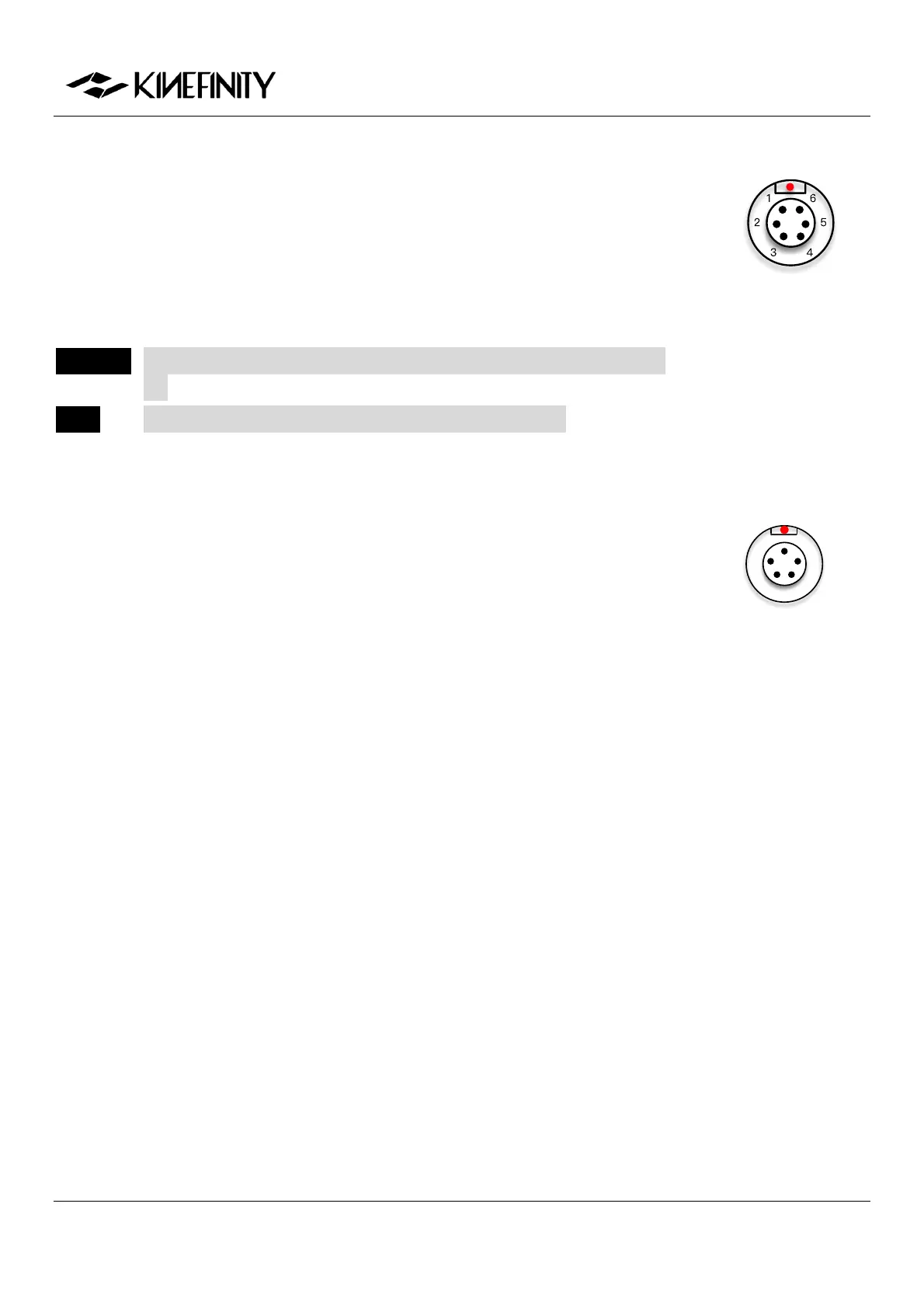

5.2.3 EXT
EXT port is on KineBACK-W, a 1B 6-pin MOCO socket. It outputs 12V, max current
1A, or even outputs power from V-lock battery plate when a battery is attached.
Meanwhile, EXT port is also used to provide power and control to Movcam motor
for follow-focus (UM4).
CAUTION The camera will shut down if the current through Pin #4 is higher than
1A.
NOTE CAN_L and CAN_H are for the control of Movcam motor.
5.2.4 TC
TC port is on KineBACK-W, a 0B 5-pin MOCO socket for timecode in or out. For
different timecode generators, such as Ambient timecode generator Nano
Lockit, or SoundDevice recorder which has TC system, the physical spec and
definition is the same.
1. Detect
2. CAN_L
3. CAN_H
4. 12V output
5. Battery output
6. GND
1. GND
2. LTC IN
3,4. NC
5. LTC OUT
