Kinetico Essential Series - Page 15

Technical Manual
15

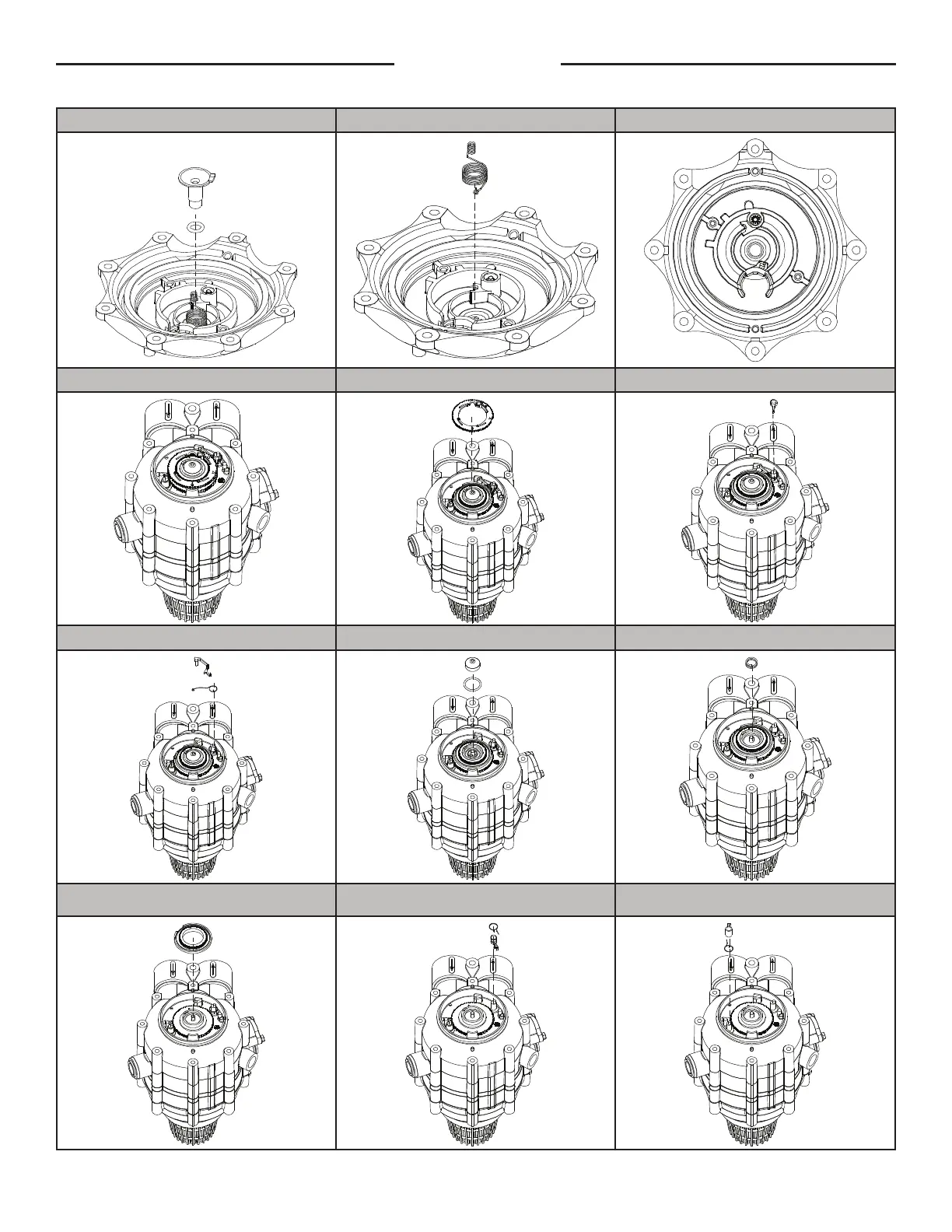

13. Remove actuator and O-ring 14. Remove reset spring 15. Inspect cap subassembly
Push out using a #2 philips screwdriver
16. Disassemble AccuDial metering 17. Remove upper disc 18. Remove meter drive pawl
19. Remove no back pawl and spring 20. Remove balance piston and O-ring 21. Remove balance piston spring
22. Remove lower disc 23. Remove regeneration start pawl with
spring
24. Remove regeneration drive pawl with
spring
