Issue: 08/2012

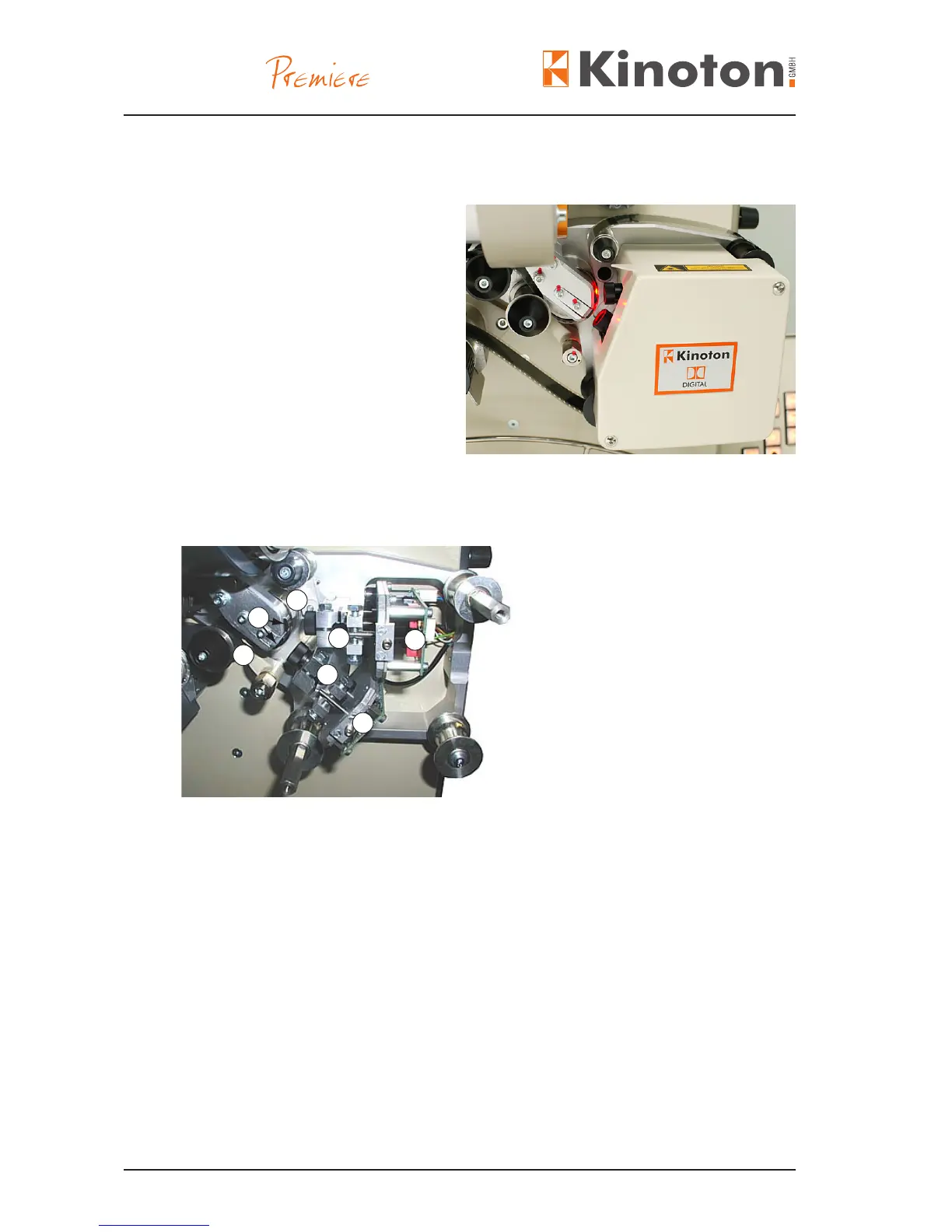

Reverse-scan sound devices scan
the sound track (analog and optional
DOLBY digital) on the lm via red
LEDs. An only analog sound device is
upgradeable with DOLBY digital.
X
Z The reverse scan sound head is
delivered factory checked and
adjusted.
Z Optional cue sensors for reading
metal foil tapes can be mounted in
the reverse scan sound device.
3
5
4
2
4
6
1
LED holder with optional second digital LED
Á Sound shaft (drum)
 Sound pressure roller
à Analog (upper) and optional digital (lower) sound optics
Ä p. c board with solar cell (analog)
Å p. c. board with CCD-unit (digital)
