Issue: 08/2012
2
3
4
5
1

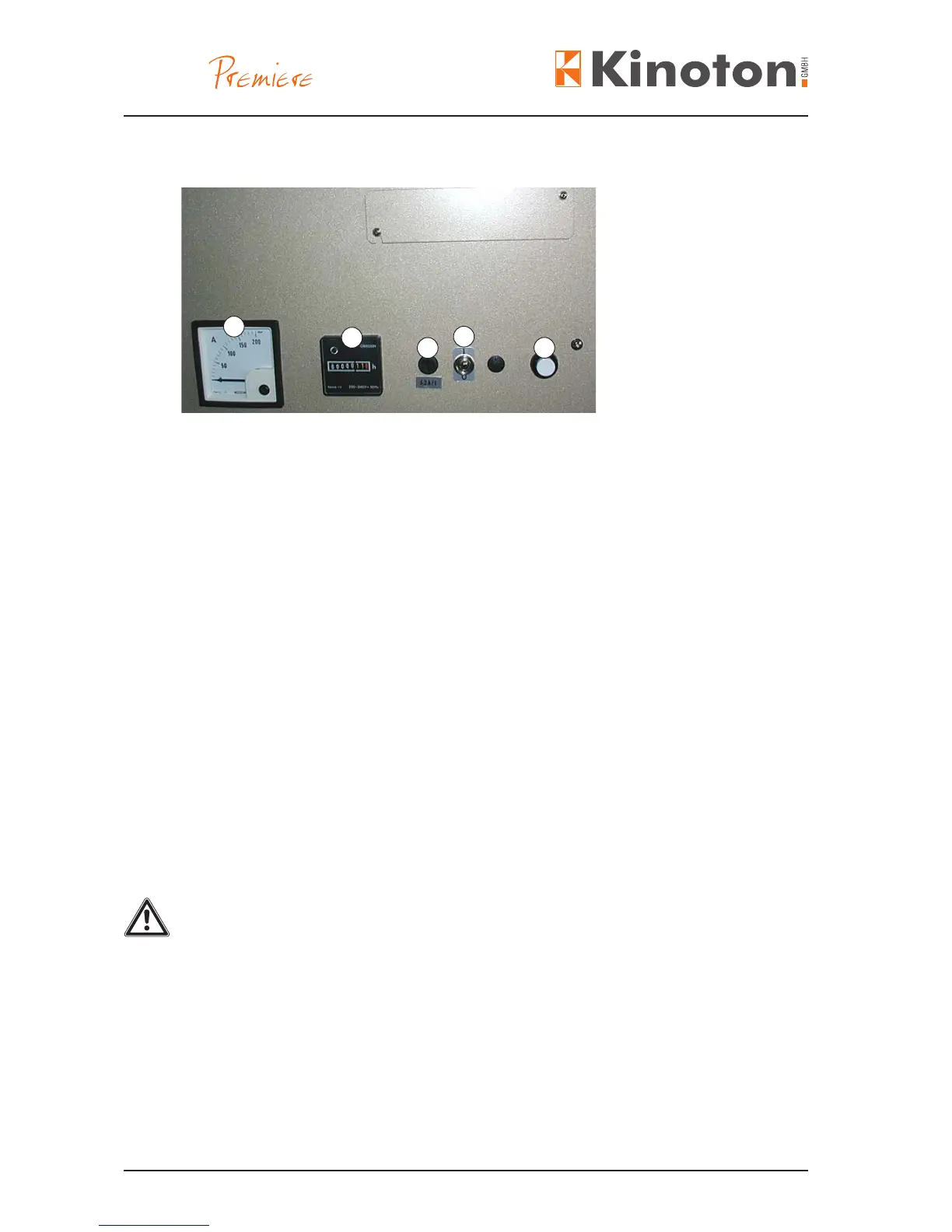

Ammeter
Á Operating hour counter
 Fuse (6.3 A)
à Main switch
Ä Press button: IGNITE
The ammeter shows the set intensity of currents.
» The small lamphouse (1000 to 2000 W) is equipped with a 100 A ammeter.
» The big lamphouse (2000 to 7000 W) is equipped with a 200 A ammeter.
The operating hour counter shows the hours the xenon bulb has been in operation.
If you put out the fuse the lamphouse is separated from mains.
You have to screw out the fuse at all maintenance work and cleaning.
