C. CLEANING AIR CLEANER PRIMARY ELE-
MENT
1. Remove the air cleaner cover and element.
2. Clean the element:
1)When dry dust adheres to the element, blow com
pressed air from the inside, turning the element.
Pressure of compressed air must be under
686 kPa (7 kgf/cm
3
, 99 psi).
2)When carbon or oil adheres to the element, soak
the element in detergent for 15 minutes then wash
it several times in water, rinse with clean water
and dry it naturally. After element in fully dried,
inspect inside of the element with a light and
check if it is damaged or not.
3. Replace air cleaner element:
Once yearly or after every sixth cleaning, whichever
comes first.
NOTE:
• Check to see if the evacuator valve is blocked with
dust.

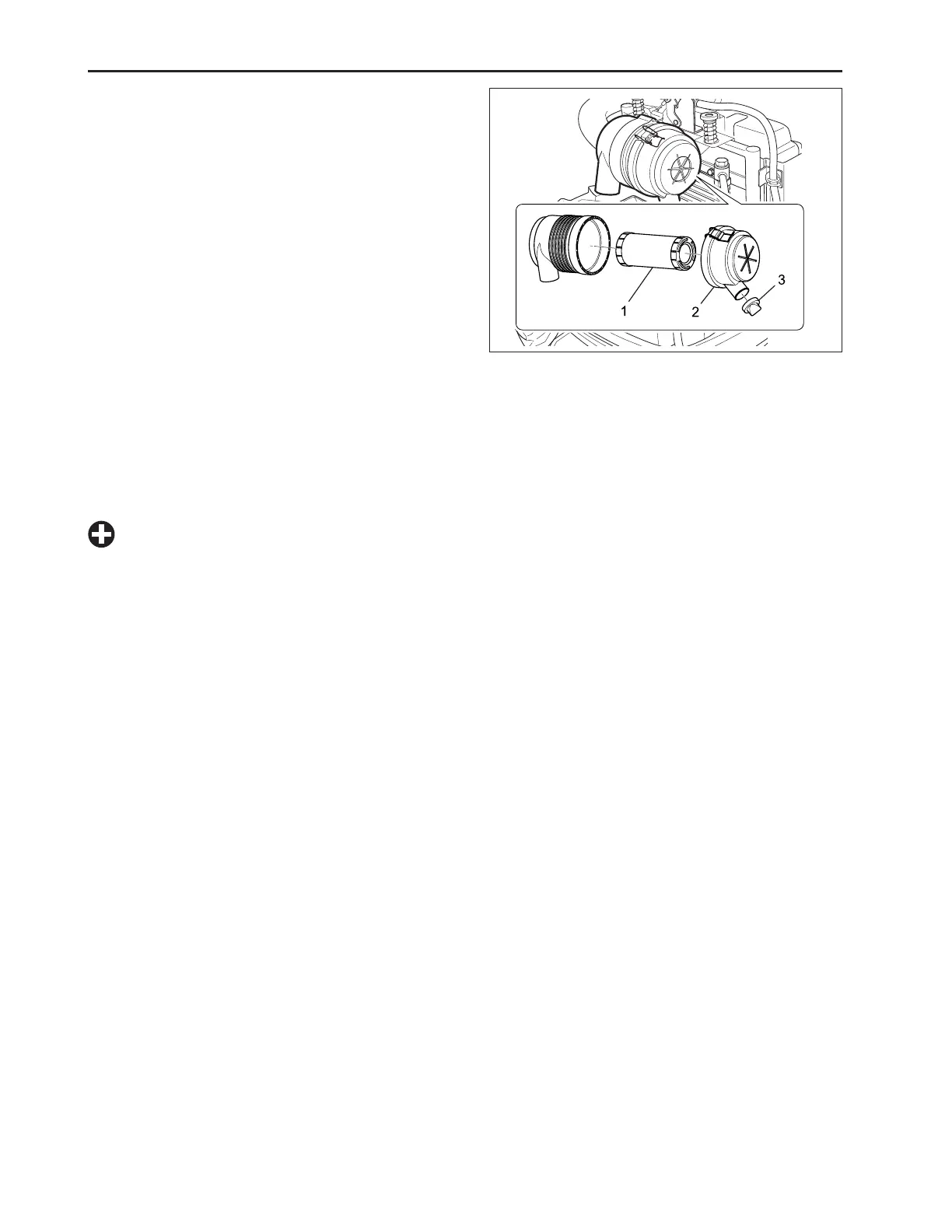

(1) Element
(2) Cover
(3) Evacuator Valve
196W127A
• The air cleaner uses a dry element, never apply oil.
• Do not run the engine with filter element removed.
• Be sure to refit the cover with the arrow
©
(on the
rear of cover) upright. If the cover is improperly
fitted, evacuator valve will not function and dust
will adhere to the element.
• Do not touch the secondary element except in
cases where replacing is required.
(See “Replacing Air Cleaner Secondary Element”
in Every 1 Year maintenance.)
IMPORTANT
