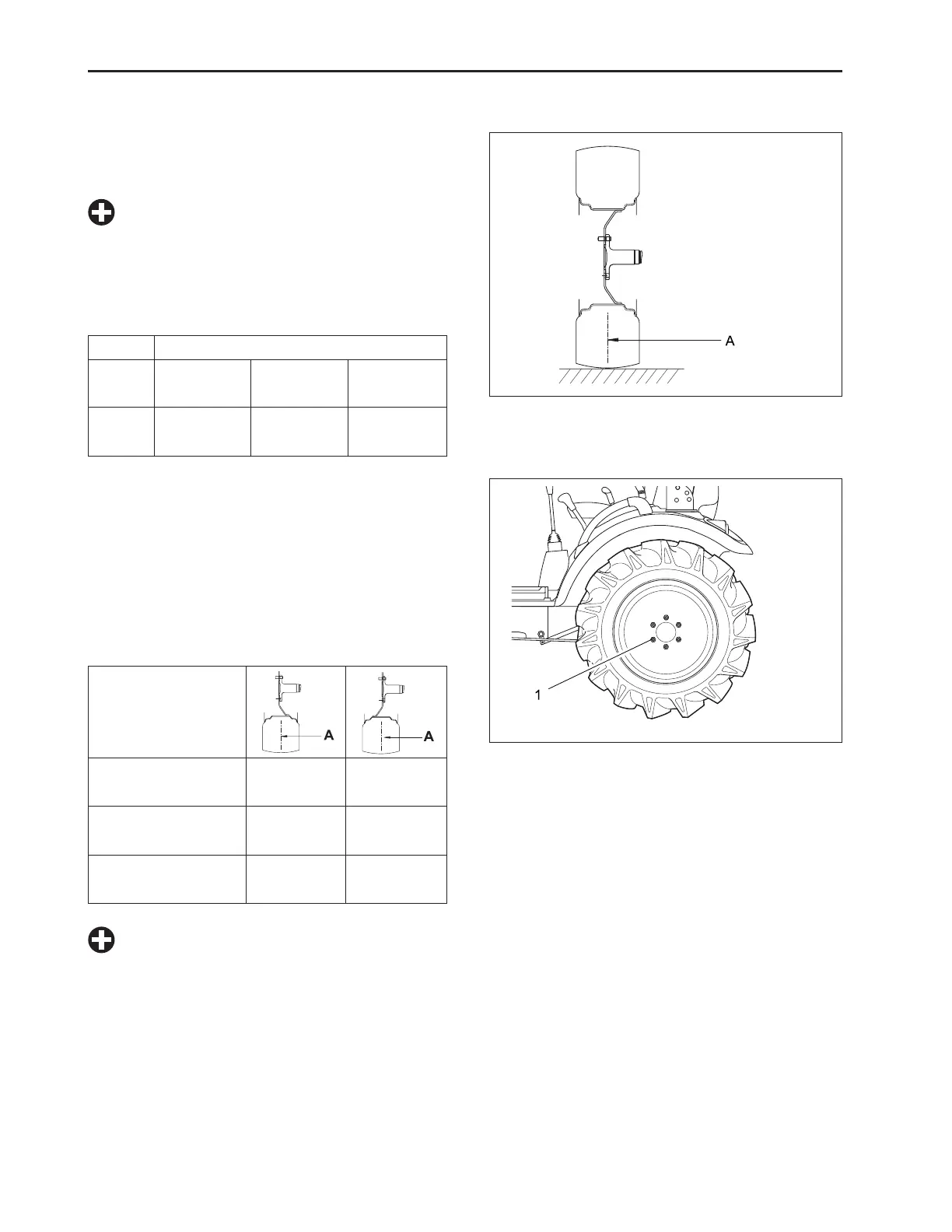

CHAPTER 1 CK20(H)
1-38
S196-WOO Jul. 2003
B. REAR WHEELS
Rear tread width can be adjusted as shown with the
standard equipped tires.
To change the tread width
1. Remove the wheel rim and / or disk mounting bolts.
2. Change the position of the rim and / or disk (right
and left) to the desired position, and then tighten
the bolts.
Models
CK20, CK20H
9.5 - 16 Farm
CK20, CK20H
33 x 12.5 - 16.5 Turf
CK20, CK20H
12 - 16.5 IND
890 mm
(35 in.)
-
-
935 mm
(36.8 in.)
995 mm
(39.2 in.)
1,015 mm
(40 in.)
(1) 215 N·m (22 kgf·m, 160 lbs·ft)
196W162A
A: Tread
196W159A
10.2 TREAD
Models
Tires
Tread
CK20, CK20H
6 - 12
Farm
909 mm
(35.8 in.)
23 X 8.50 - 12
Turf
1,014 mm
(39.9 in.)
23 X 8.50 - 12
Turf
1,014 mm
(39.9 in.)
• Do not turn front discs to obtain wider tread.
IMPORTANT
NOTE:
• IND… for Industrial
A. FRONT WHEELS
Front tread can not be adjusted.
(A) Tread
Always attach tires as shown in the drawings.
• If not attached as illustrated, transmission parts
may be damaged.
• When re-fitting or adjusting a wheel, tighten the
bolts to the following torques then recheck after
driving the tractor 200 m (200 yards) and thereaf-
ter according to service interval.
(See “MAINTENANCE” section)
IMPORTANT
