Protected circuit
(1) Slow Blow Fuse
No. Capacity (A) Protected circuit
1
2
3
4
5
6
20
10
15
15
10
15
Flasher / Horn
Work light
Head lights / Tail light
Timer relay
Stop lights
Customer use
(1) Fuse Box

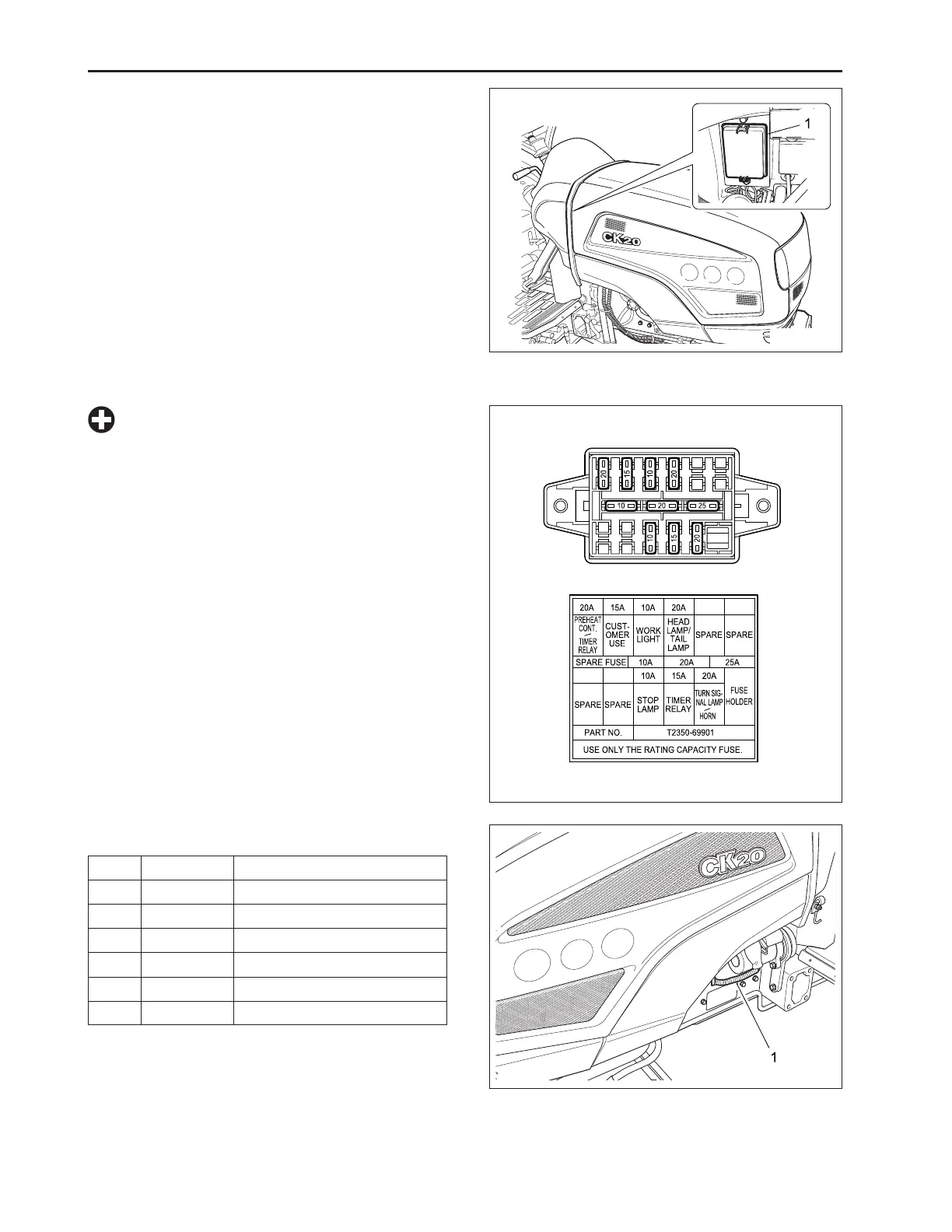

D. REPLACING FUSE
The tractor electrical system is protected from poten-
tial damage by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
If any of the fuses should blow, replace with a new one
of the same capacity.
196W156A
• Before replacing a blown fuse, determine why the
fuse blew and make any necessary repairs. Fail-
ure to follow this procedure may result in serious
damage to the tractor electrical system. Refer to
the troubleshooting section of this manual or your
local KIOTI Dealer for specific information deal-
ing with electrical problems.
