6. INTAKE SYSTEM
Caution
■ Loosen the drain olt and drain out fuel before disassembly.
■ Keep heat, flame and sparks away.

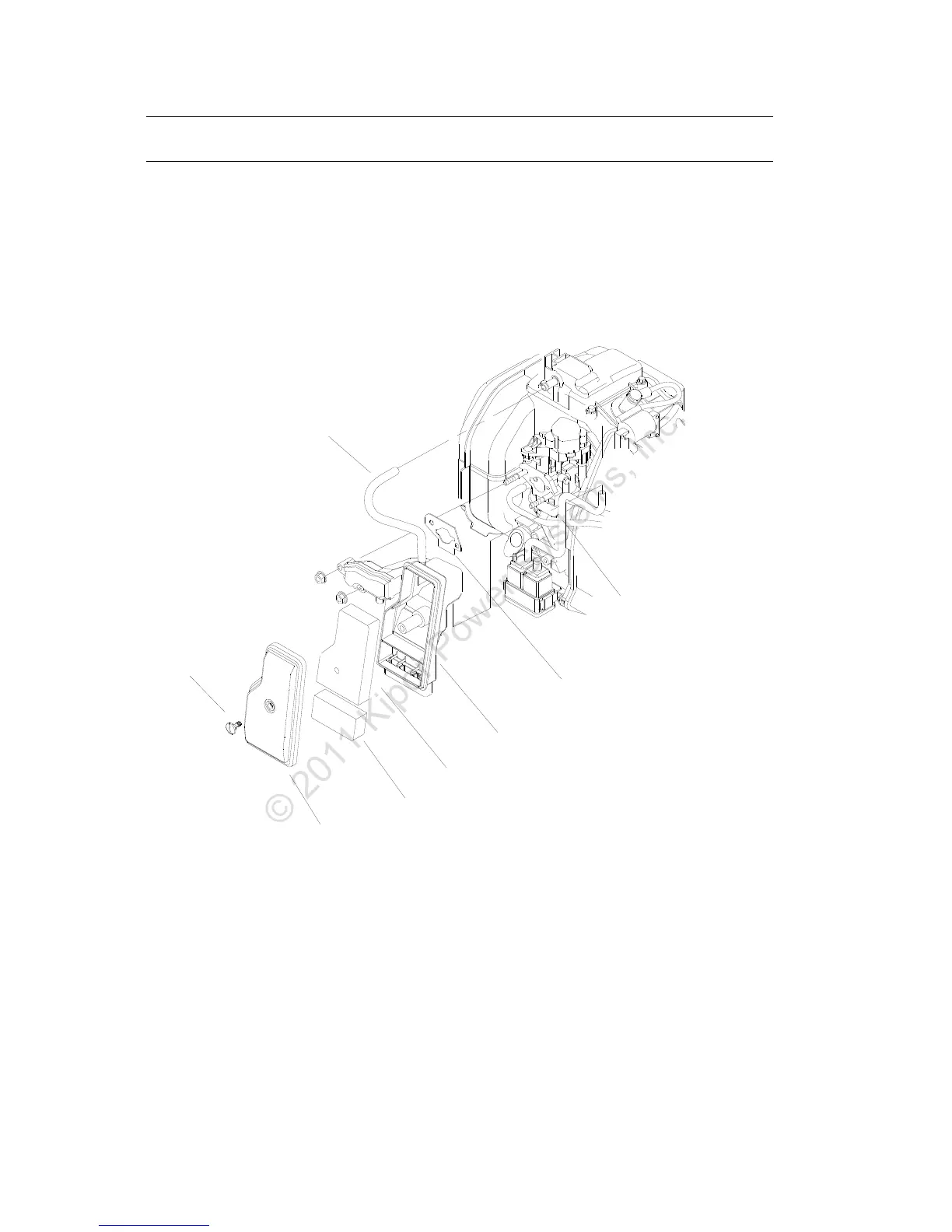

6.1 Disassembly/Installation of air filter
通气管
碳罐负压管
化油器垫片
空滤器壳
精滤芯
粗滤芯
空滤器盖
紧固螺钉
安装：
应当先确认垫片有无弯
折、破损等，同时应注
意内外侧方向。
Rough filter element
Fine filter element
Air filter cover
Air filter shell
Ventilation tube
Fixed screw
Diaphragm tube
Carburetor gasket
Installation: check the
gasket for deflection and
damage. Pay attention to
the inner and outer direction
