Kipor IG2000 - 12 Crankcase Cover;Camshaft Drive Chain; Disassembly

70

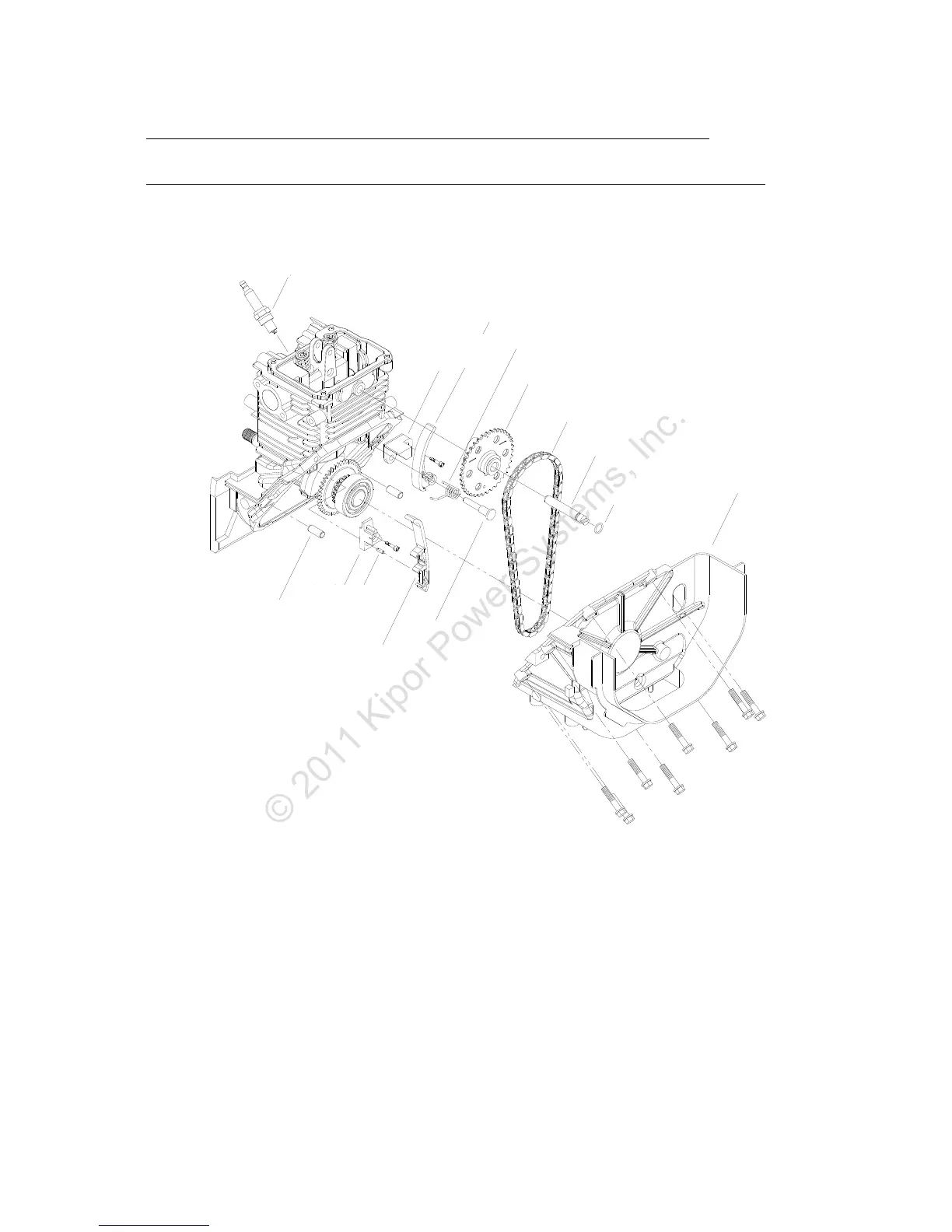

12. Crankcase cover/ Cam timing drive chain
12.1 Disassembly
张紧弹簧销轴
卡块
销
链条托板
曲轴箱盖定位销
曲轴箱盖
O形密封圈
传动轴
滚子链
凸轮正时传动链轮
张紧弹簧
链条压板
挡块
火花塞
Location pin of crankcase cover
Spark plug
Retainer
Pin
Block
Chain press plate
Spring
O-seal ring
Driving shaft
Roller chain
Camshaft timing driving chain
Crankcase cover
Spring pin roll
Chain plate
