27
4.2 Checking the low oil alarm

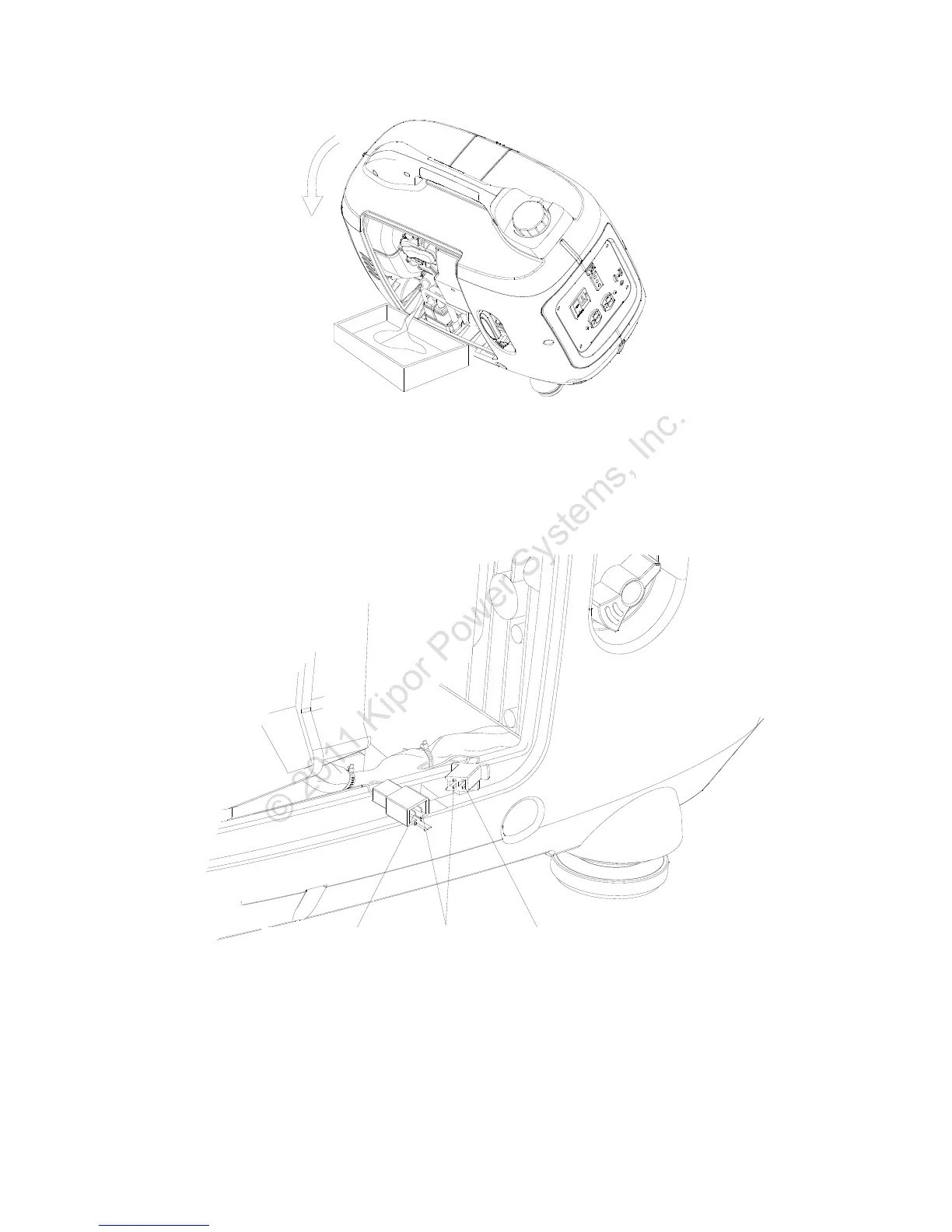

1. Disconnect oil alarm connector when the engine is still running, connect the two plugs, be sure
that oil alarm lights and engine stops.
橙色
(报警器引出端）
黄绿色
橙色（点火器引出端）
两个插孔相互短接
2. Stop engine, disconnect oil alarm connector, check the connector conduction, no conduct is
normal.
Orange (alarm
outlet terminal)
Orange (igniter outlet terminal)
the two plugs are connected
Yellow/
Green
