Kipor IG2000 - Carburetor Removal and Installation

40

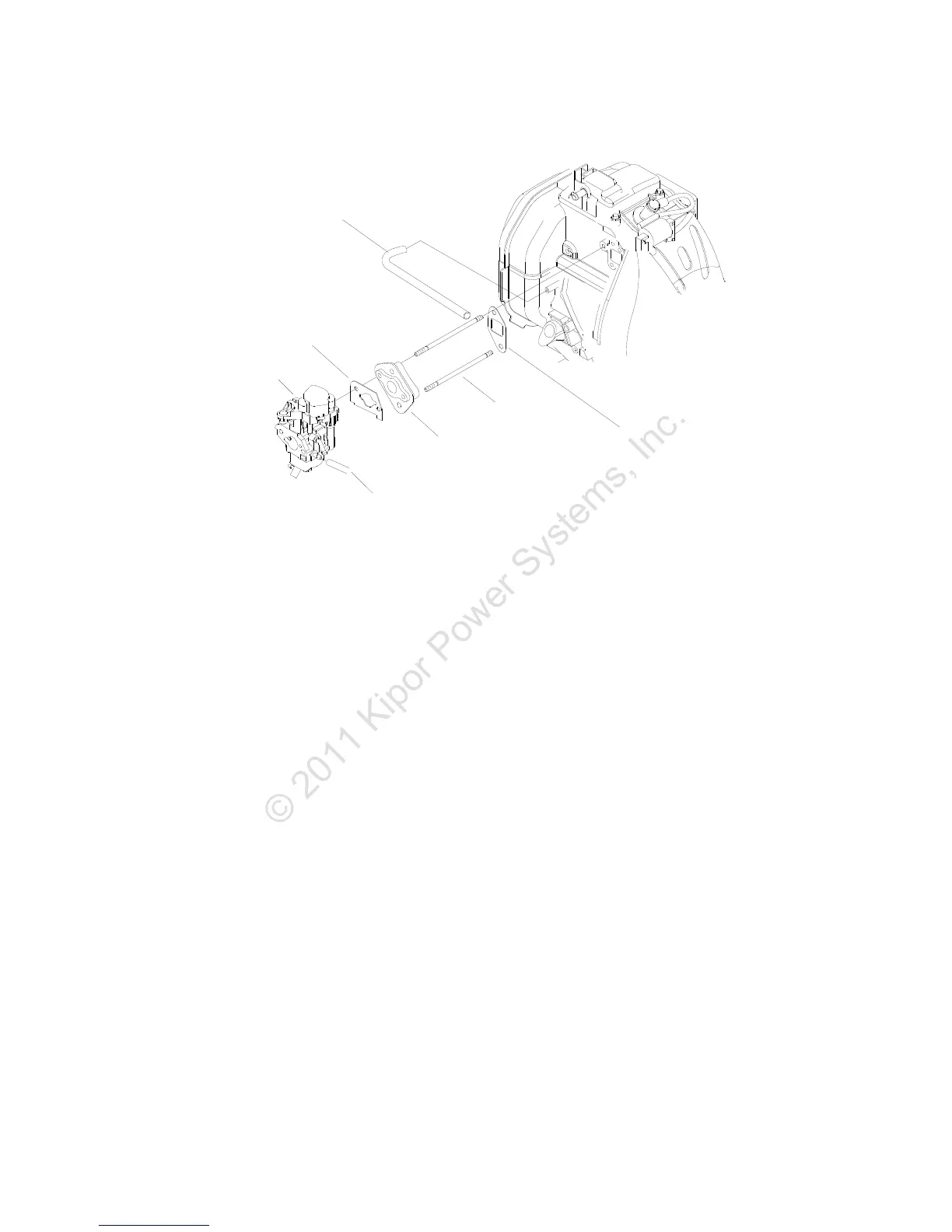

6.2 Disassembly/Installation of Carburetor
进油管
化油器绝缘块
化油器螺柱
负压管
空滤器壳
进气管垫片
安装：
应当先确认垫片有无弯
折、破损等，同时应请
注意内外侧方向。
化油器垫片A
安装：
应当先确认绝缘块有
无破裂再进行安装。
安装：
应当先确认垫片有无
破损再进行安装。
Inlet pipe gasket:
Installation: check the gasket
For distortion or damage,
Carburetor gasket A
Installation: check the
gasket for damage
before installation
Oil inlet tube
Diaphragm tube
Air filter shell
Carburetor stud
Insulation block
Installation: check the
block for damage
before installation
