8. Light Kit/ Housing / Fuel tank/ Fan housing/ Inverter unit

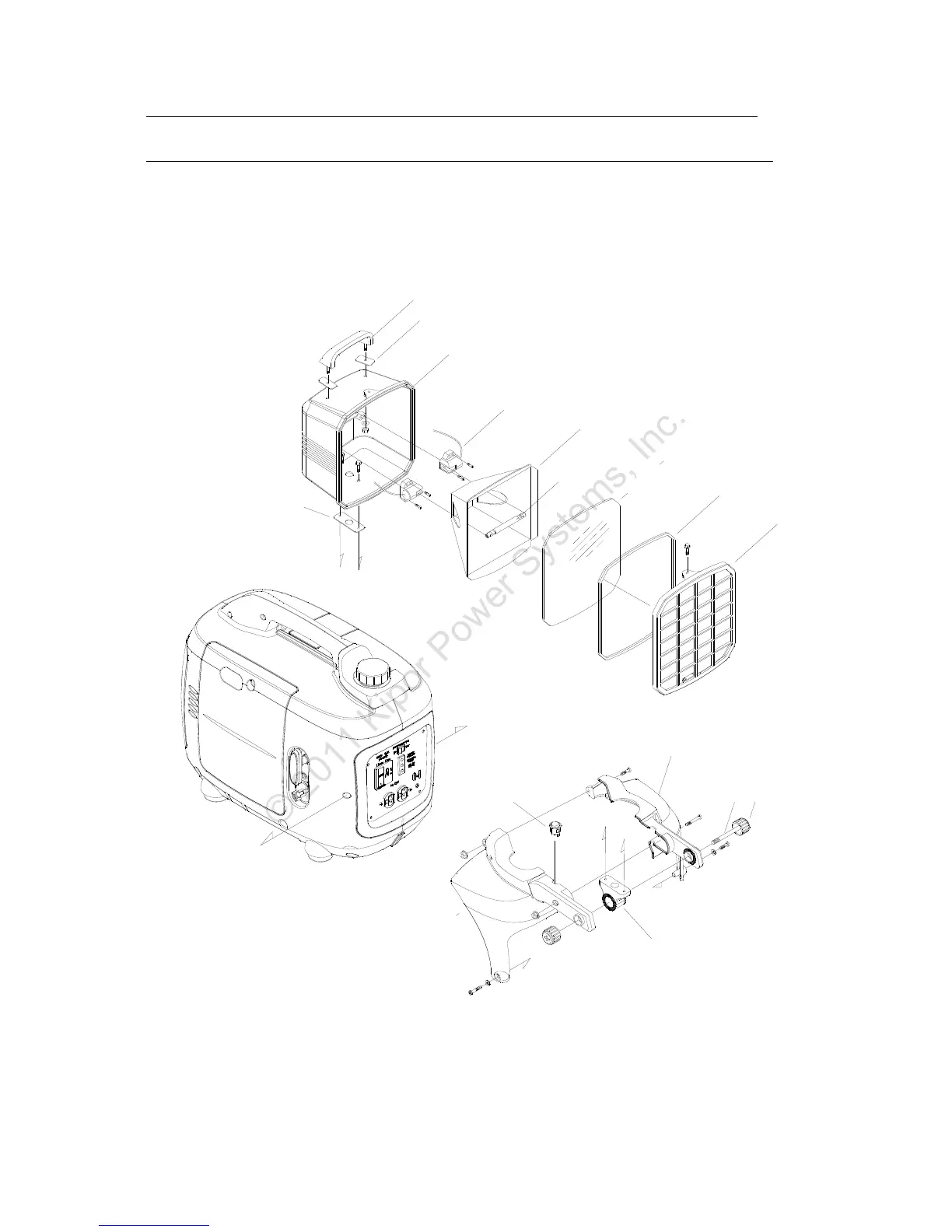

8.1 Disassembly and installation of accessory lamp
Caution: Stop the engine and let the lamp cool completely before disassembly.
A
A
A"
A"
B"
B
B"
B
螺母
灯壳左固定架
灯壳右固定架
灯壳
灯壳密封圈
灯壳转头石绵垫
反射镜
玻璃
灯盖
灯壳转头
灯丝固定座
灯管
灯壳手柄
灯壳手柄石绵垫
螺杆
开关
Handle
Mounting pad
Lamp shell
Fixed seat
Reflector
Lamp bulb
Glass
Sealing ring
Lamp cover
Mounting pad
Right bracket
Switch
Left bracket
Lamp shell swivel
Screw
Nut
