Kipor IG2000 Shop Manual

60

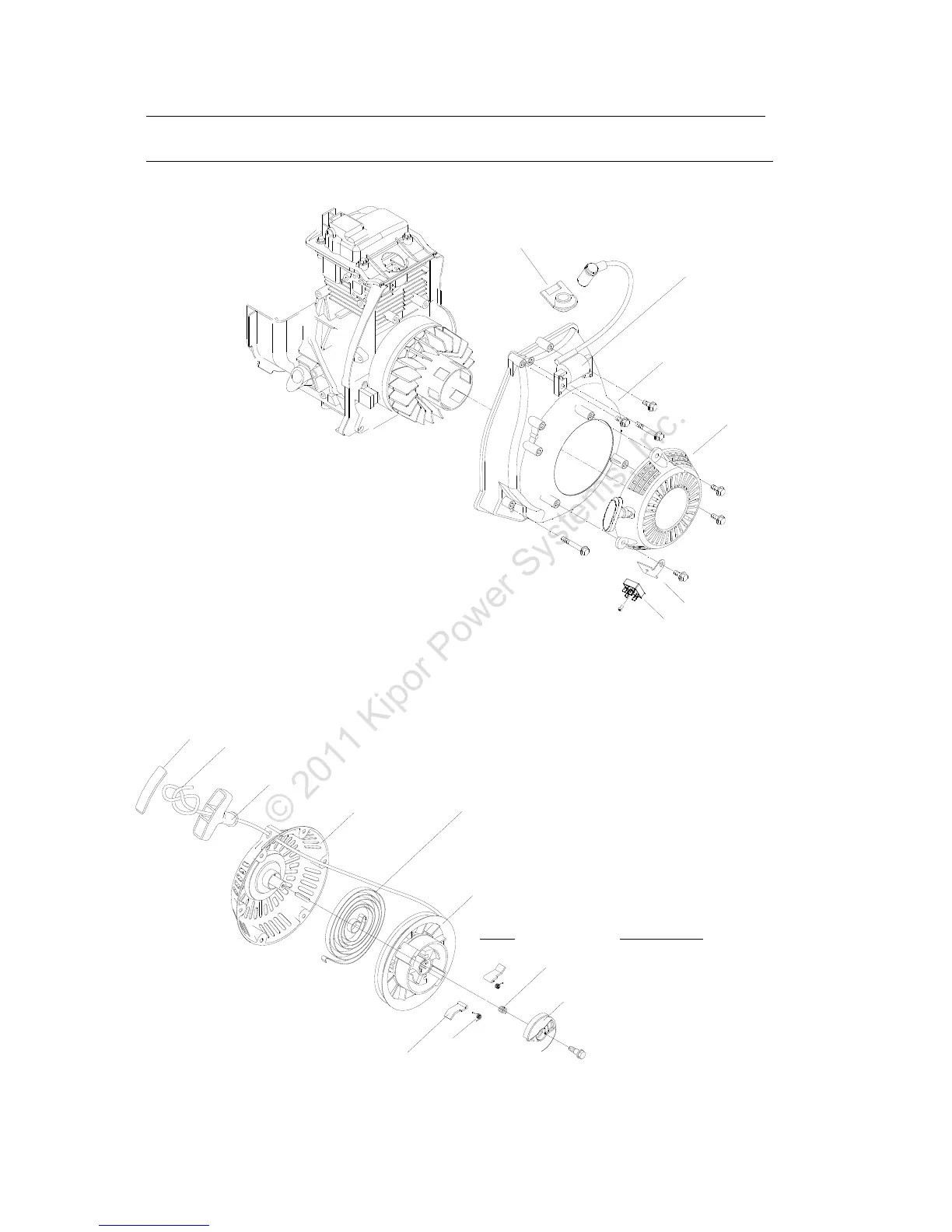

9. Recoil starter/ Air conduct cover/ Ignition coil
9.1 Disassembly/Reassembly
反冲启动器
导风罩
密封套
点火线圈
整流桥
整流桥支架
棘爪导板
棘爪
棘爪弹簧
反冲起动器弹簧
起动器外壳
起动手柄
起动拉绳
组装：
安装前应检查起动拉绳是否
绽裂或磨损，再进行安装。
起动手柄盖
拆卸：
拆卸时应当戴上手套操作，小心不要使弹簧弹出。
组装：
将外侧的钩挂在卷轴槽内，内侧的钩挂在外壳的卡爪上。
组装：
先将起动器弹簧安装到卷轴上，
再把卷轴安装到起动器外壳上。
起动器卷轴
磨擦弹簧
Ignition coil
Recoil starter
Seal sleeve
Air conduct cove
r
Rectifier bracket
Rectifier
Starter spring
Disassembly: put on the gloves when disassembly
Starter reel
Assembly: install the starter to the reel
first, and then install the reel to the starter
Handle cove
r
Friction s
p
rin
g
Conduct
p
late
Pallet s
p
rin
g
Pallet
Handle
Starter shell
Starter rope
Assembly: check the starter
rope for damage before
installation
