Kirisun DP990 Service Manual

DP990/DP995service manual
16

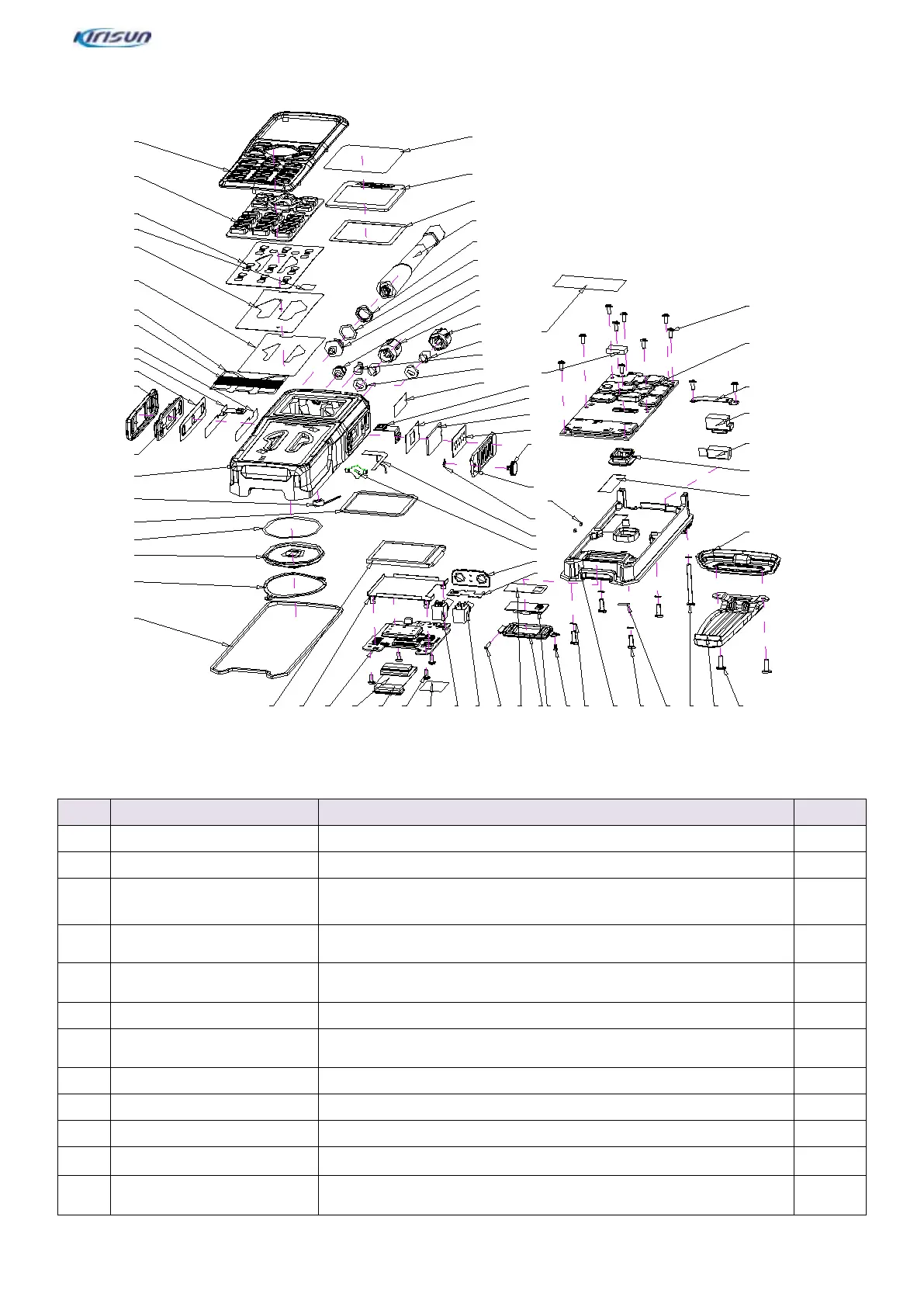

5.7.Explosion Diagram
2
1
3
5
6
7
8
10
11
13
14
15
16
18
20
22 23
19
21 24 26
33 34
28 29 30 31 32
35 36 37 39 40 41
42
43
44
48
26
55
54
56
53
52
51
65
66
67
68
57
58
59
60
64
70
71
72
73
74
75
49
69
50
12
25
9
63
61
17
4
62
76
38
45
46
47
27
DP990
BOM of DP990
SN
Material Code
Description
QTY
1
7MBP-4182-02A-W0
Top panel cover, PC1414, black, etched
1
2
7MBR-4182-01B-W
Numeric key, silicon rubber, black, laser etching, PU oil jet
1
3
7MBS-4182-02A-W
Waterproof metal dome array for numeric key,￠5*3.7,
kidney-shaped, five-point
1
4
157F15000087
Dual-side adhesive, black, Φ39.8*36*0.2
1
5
6SS1-4182-HK1A
Key FPC board SMD nesting
1
6
7MHJ-4182-03A-W
Dual-side adhesive for numeric-key PCB
1
7
7MHB-4182-01A-W0
Dust screen, nonwoven cloth,black
1
8
7MHB-4182-02A-W0
Speaker dust screen, PVC, mesh holed, black, 0.15mm
1
9
7MHJ-4182-02A-W
Dual-side adhesive for side-key PCB
1
10
61FP000010
FPC nesting for side-key board
1
11
7MBS-4182-01B-W
Waterproof metal dome array for side key,￠6 stainless, circular, IP67
1
12
7MBP-4182-04A-W0
Side-key holder, PC1414, etched
1
