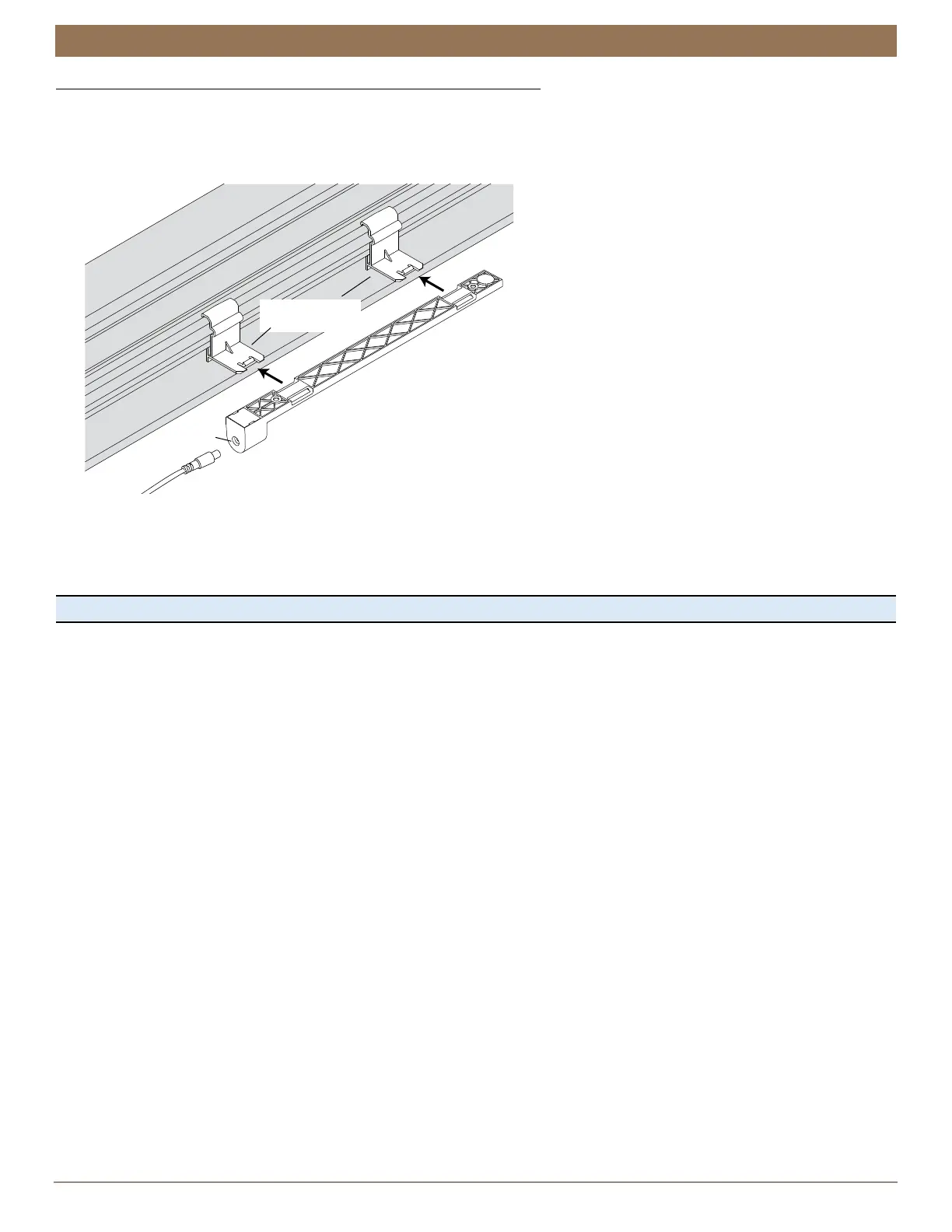

Install the Rechargeable Battery Mount into the Battery Wand Clips
■
From the back of the shade headrail, connect the power cable from the motor side into the socket on the rechargeable battery
mount.
■
Align the slots in the battery mount with the battery wand clips.
■
Push the battery mount onto the battery wand clips until it snaps into place. Check to make sure the battery mount is secure.
CAUTION: Be sure the cable does not become pinched by the battery wand clips during installation. Damage or overheating of
components could result.
NOTE: Do not install the rechargeable battery wand into the battery mount before installing the shading. See “STEP 4:
Connect the Power Source” on page 21 for instructions on inserting the battery wand into the battery mount.
Proceed to “STEP 3: Install the Shade” on page 18.
Rechargeable
Battery Wand Clips
Rechargeable
Battery Wand
Mount
Power
Cable
Socket
