2-1
INSTALLATION INFORMATION
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before start-
ing installation. Read and follow the instructions
provided with any tools listed here.
Tools needed
Tape measure•
Flat-blade screwdriver•
3/32" (#0 [2 mm]) at blade screwdriver•
(screwdriver shaft must be a minimum of
1 1/8" [28 mm] long) 1˝ (25 mm) drill bit (for
wall cabinet installations)
15/16" combination wrench•
Pipe wrench•
Wrench or pliers•
Needle-nose pliers•
Marker or pencil•
Pipe-joint compound resistant to LP gas•
Noncorrosive leak-detection solution•
Parts needed
Check local codes and consult gas supplier.
Check existing gas supply and electrical sup-
ply. See “Electrical Requirements” and “Gas
Supply Requirements” sections.
Parts supplied
Gas pressure regulator•
Burner grates •
Burner caps•
Clamping brackets (2)•
2 1/2" (6.4 cm) clamping screws (2)•
LOCATION REQUIREMENTS
IM PO RTANT: Observe all governing codes and
ordinances.Donotobstructowofcombustion
and ventilation air.
It is the installer’s responsibility to comply •
withinstallationclearancesspeciedonthe
model/serial rating plate. The model/serial
rating plate is located on the underside of
the cooktop base.
Toeliminatetheriskofburnsorrebyreach-•
ing over heated surface units, cabinet stor-
age space located above the surface units
should be avoided. If cabinet storage is to be
provided, the risk can be reduced by install-
ing a range hood that projects horizontally a
minimum of 5" (12.7 cm) beyond the bottom
of the cabinets
The cooktop should be installed in a loca-•
tion away from strong draft areas, such as
windows, doors and strong heating vents or
fans.
Allopeningsinthewalloroorwherecooktop•
is to be installed must be sealed.
Cabinet opening dimensions that are shown •
must be used. Given dimensions are minimum
clearances.
Grounded electrical supply is required. See •
“Electrical Requirements” section. Proper gas
supply connection must be available. See
“Gas Supply Requirements” section.
The cooktop is designed to hang from the •
countertopbyitssideanges.
The gas and electric supply should be located •
as shown in “Installation Clearances” section
so that they are accessible without requiring
removal of the cooktop.

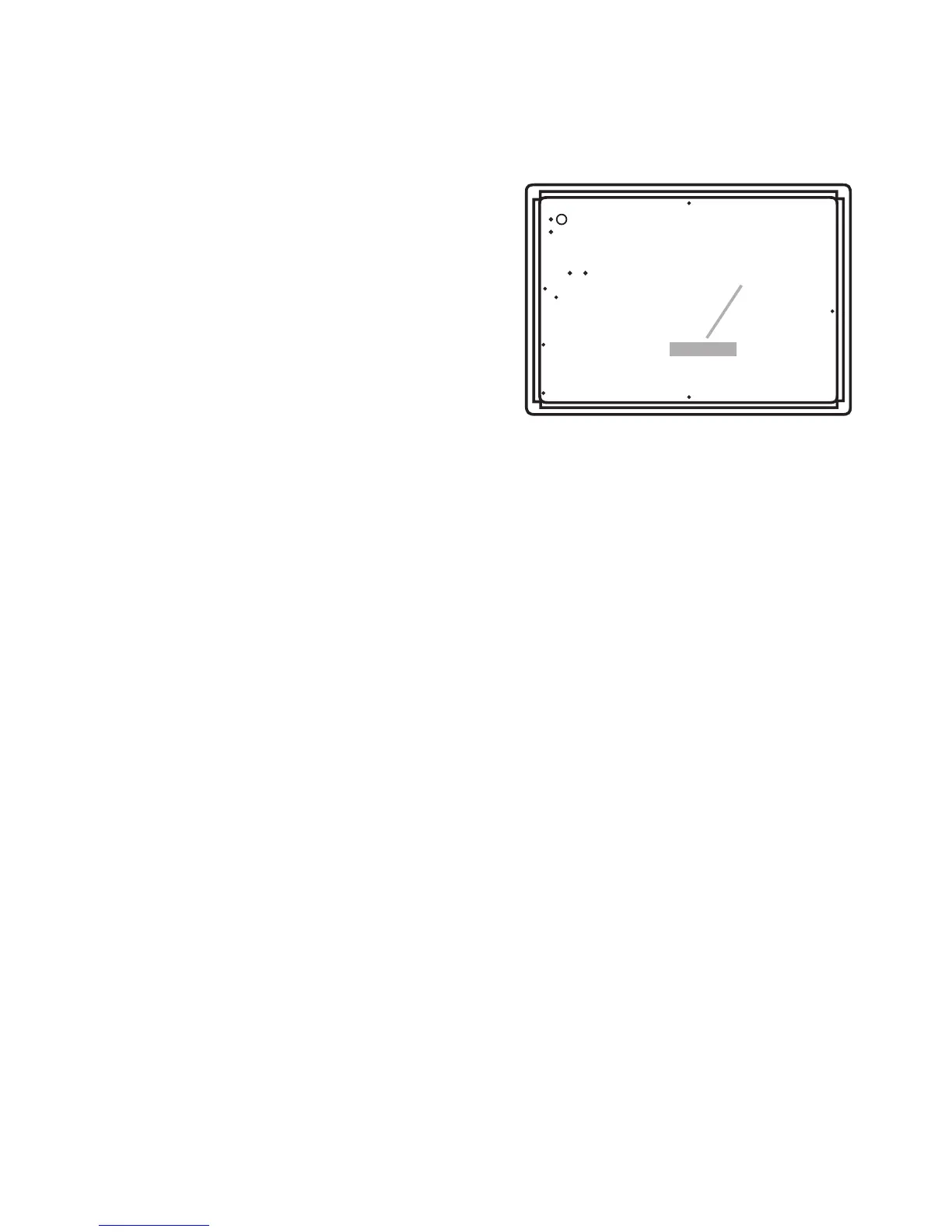

A. Model/serial rating plate
A
