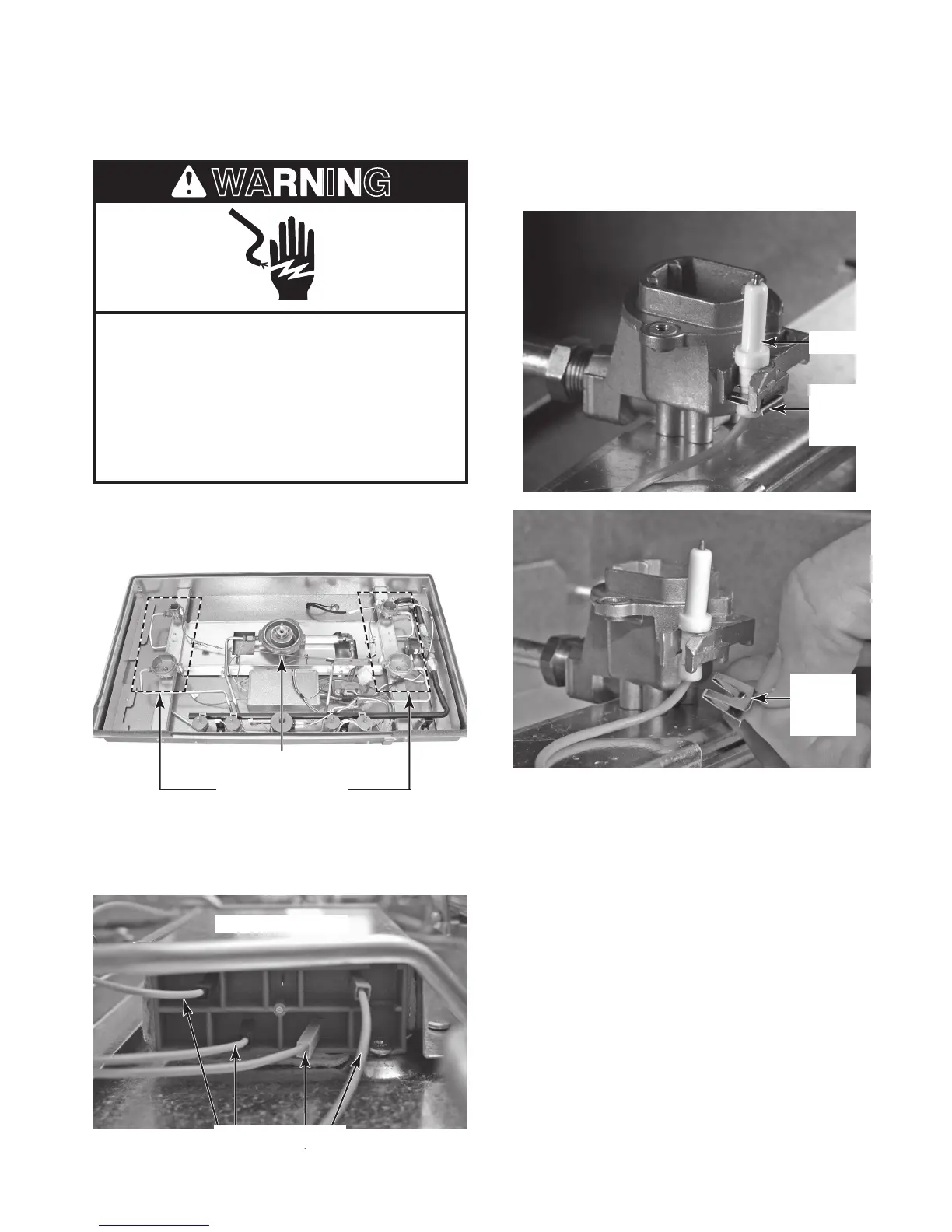

REMOVING A SPARK IGNITOR FROM
STANDARD OR CROWN BURNER
1. Unplug cooktop or disconnect power.
2. Remove the cooktop (see page 4-2 for the
procedure).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Standard Burners
Crown Burner
3. To remove spark ignitor from standard
burner.
a) Disconnect spark ignitor wire from spark
module.
Igniter Wires
Spark Module
b) Remove igniter retainer clip from stan-
dard burner.
Igniter
Igniter
Retainer
Clip
Igniter
Retainer
Clip
c) Remove igniter from standard burner.
Continued on the next page.
To Next Page
