High Altitude Conversions
IMPORTANT: You must convert LP gas with
LP gas high altitude or Natural gas with Natu-
ral gas high altitude. If you need to convert
LP gas to Natural gas high altitude or Natural
gas to LP gas high altitude you must convert
the pressure regulator, for this you must follow
steps 1, 2, and 3 of the respective conversion
that you need.
LP Gas Orice Spud Chart for High Altitude
Conversion
Burner Models
Burner Rating Stamp (A)Size
5,000 BTU062 0.62 mm
6,000 BTU070 0.70 mm
8,000 BTU079 0.79 mm
9,100 BTU085 0.85 mm
11,000 BTU 092 0.92 mm
12,000 BTU
Outer
Inner
093
6
0.93 mm
0.5*0.5 mm
14,000 BTU
Outer
Inner
100
6
1.00 mm
0.5*0.5 mm
16,000 BTU
Outer
Inner
107
6
1.07 mm
0.5*0.5 mm
A. Size stamp
Model
No.
Right
front
Right
rear
Center
(outer)
Center
(inner)
Left
front
Left
rear
KFGS306 085 070 093 6079 062
KFGS366 085 070 100 6085 062
KFGU706 092 070 093 6079 062
KFGU766 085 070 107 6092 062
A

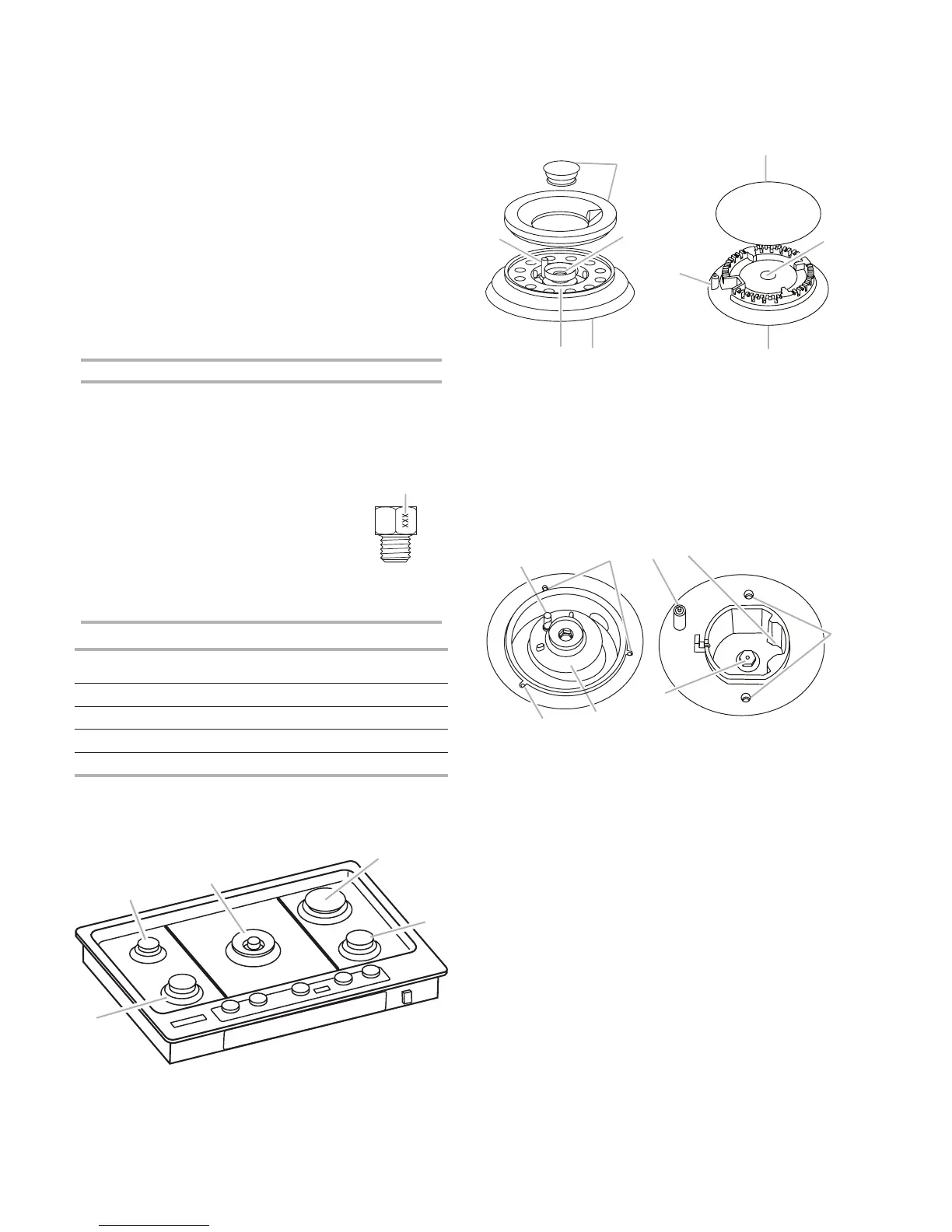

Burner locations
A. Left front
B. Left rear
C. Center
D. Right rear
E. Right front
B
D
C
E
A
6. Remove all burner caps and burner bases.
If necessary, remove the burner ring.
A. Burner cap
B. Igniter electrode
C. Burner base
D. Gas tube opening
E. Burner ring
B
D
C
E
A
A
B
C
D
7. Using a T20 TORX® screwdriver, remove
theoriceholderscrews(C).
A. Igniter electrode
B. Orice holder
C. Orice holder screws
D. Orice spud
A
A
B
D
C
B
C
C
8. On KFGU models only, lift the front part of
the cooktop and unhook the wire harness
to detach it from the glass control panel of
the metal cooktop.
