4-11

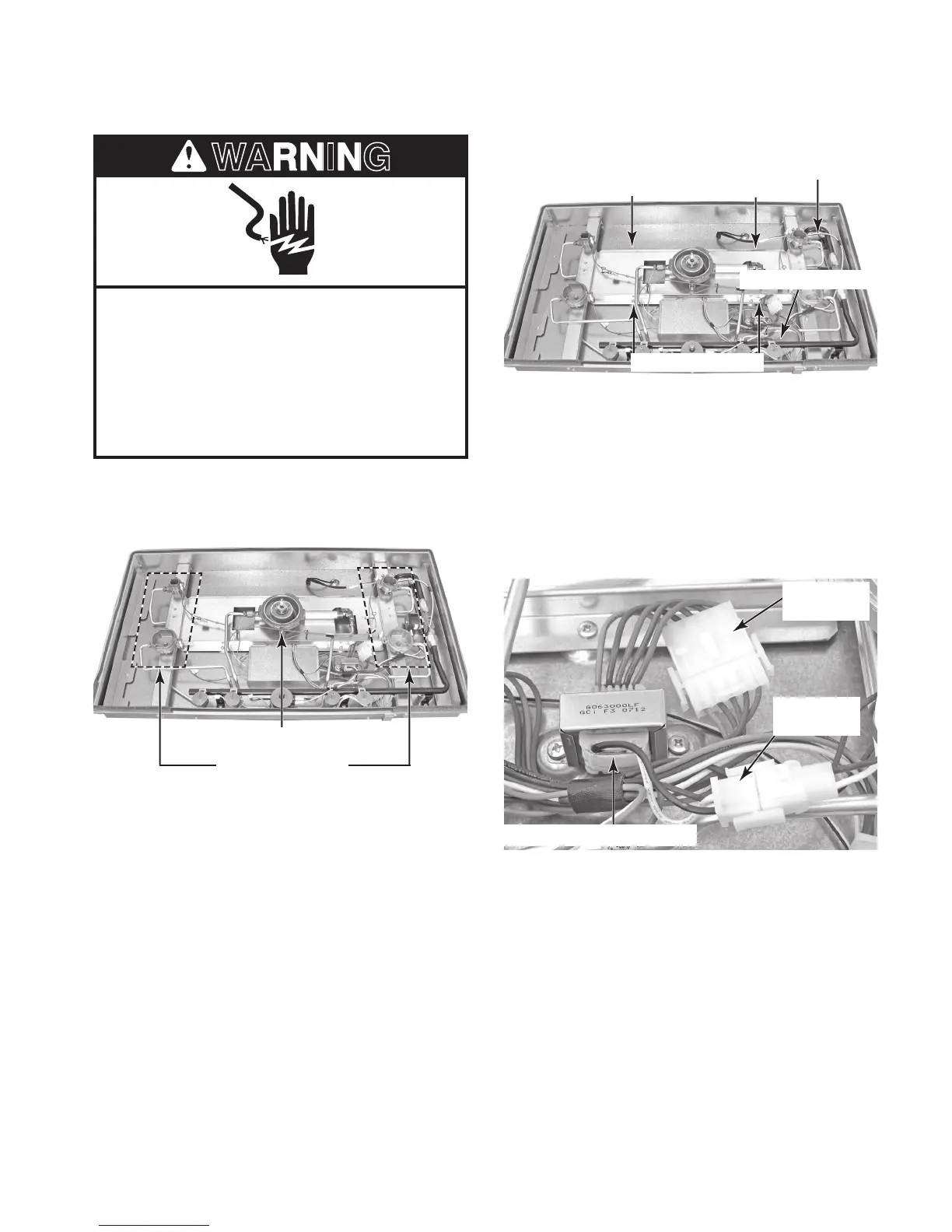

REMOVING STANDARD OR CROWN BURNER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug cooktop or disconnect power.
2. Remove the cooktop (see page 4-2 for the
procedure).
Standard Burners
Crown Burner
3. To remove standard burner from
cooktop.
a) Remove gas regulator from gas inlet line.
b) Remove 4 mounting screws holding burner
assembly to base and 1 hold down clamp
screw holding gas line.
Mounting Screws
Mounting Screws
Hold Down
Clamp Screw
c) Remove 4 mounting screws located on
outside of burner box holding burner
supports to burner box.
d) Remove ground screw holding ground
wire to burner box.
e) Unlatch and disconnect the 2-wire
and 5-wire connectors from the
transformer.
Ground Screw
Continued on the next page.
5-Wire
Connector
2-Wire
Connector
Power Supply Transformer
To Next Page
