KitchenAid KFGS306VSS - Removing the Power Supply Transformer and the Spark Module

4-7

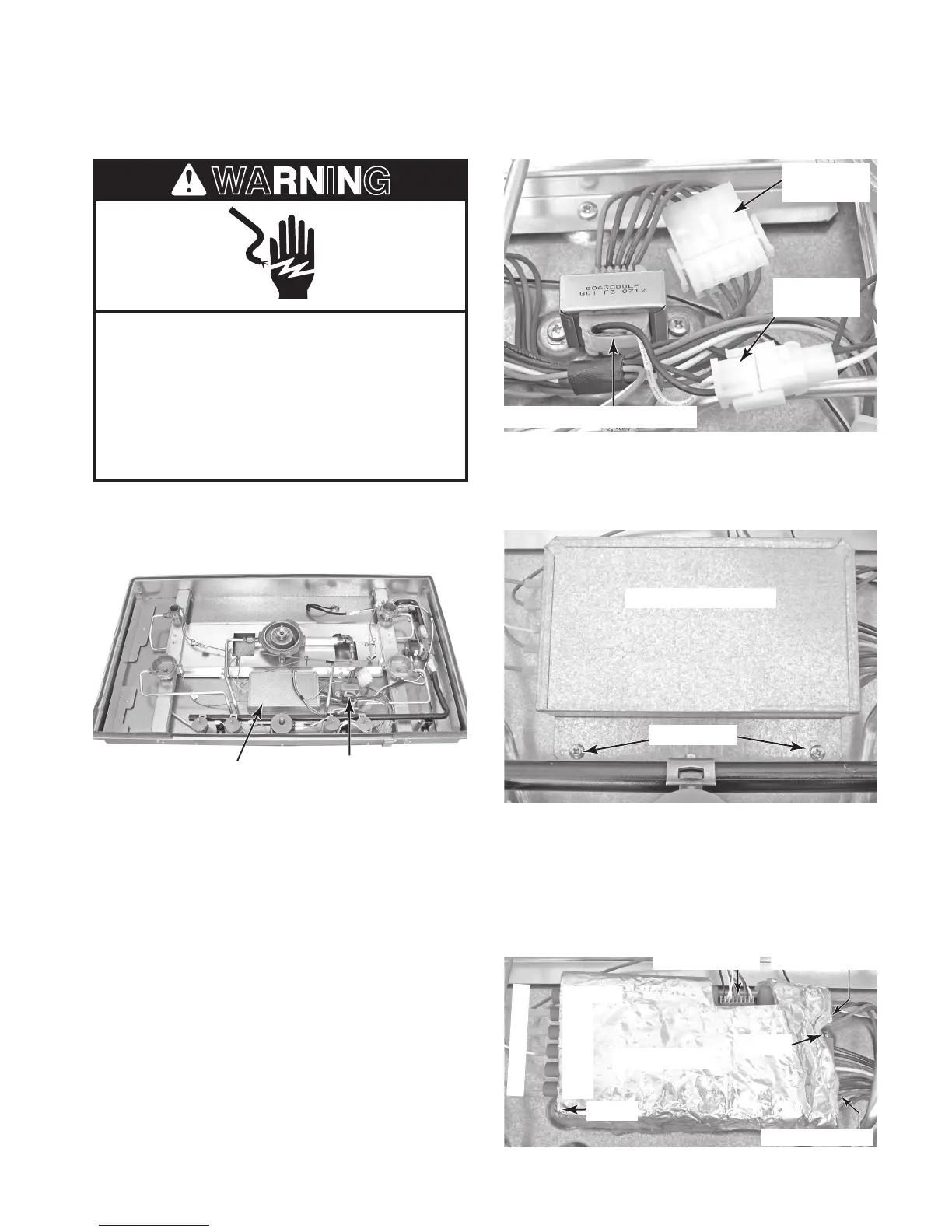

REMOVING THE POWER SUPPLY TRANSFORMER
AND THE SPARK MODULE
WARNING
1. Unplug cooktop or disconnect power.
2. Remove the cooktop (see page 4-2 for the
procedure).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Spark Module
Power Supply Transformer
3. To remove the power supply trans-
former:
a) Unlatch and disconnect the 2-wire and
5-wire connectors from the transformer
(see the top right photo).
b) Remove the two screws from the trans-
former and remove it.
4. To remove the spark module:
a) Remove the two screws from the shield
and remove the shield.
b) Disconnect the burner ignitor wire con-
nectors, and the 8-, 4-, and 10-wire
connectors from the spark module
terminals.
c) Remove the two screws from the spark
module and remove the module.
5-Wire
Connector
2-Wire
Connector
Power Supply Transformer
Spark Module Shield
Screws
RF
Screw
Spark Module
RR
C
LR
LF
Screw
Not Used
8-Wire Connector 4-Wire Connector
10-Wire Connector
Ignitor Connectors
