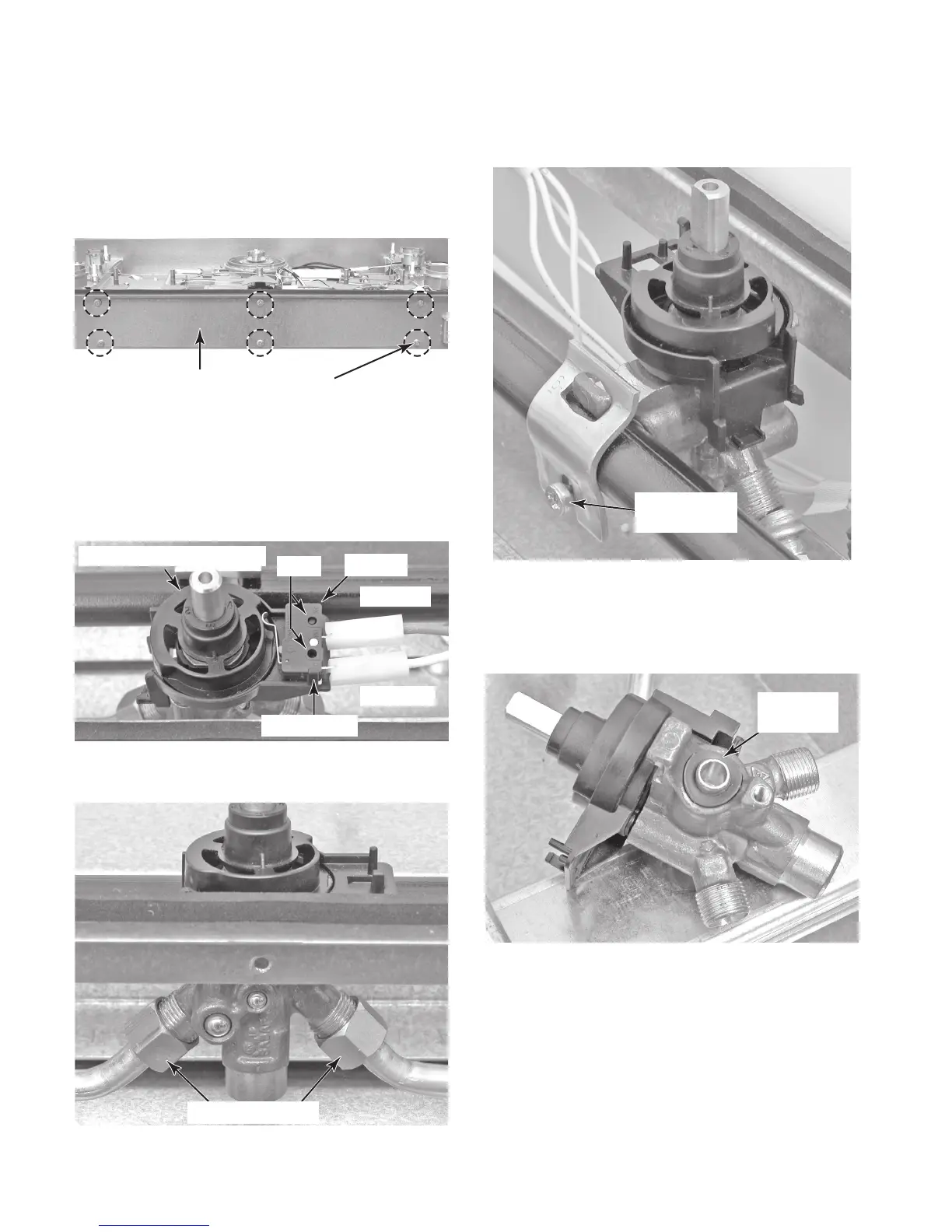

5. To remove the Crown burner gas valve:
a) Remove the spark switch from the Crown
burner gas valve (see step 3c).
b) Remove the six screws from the front
burner box access panel and remove
the panel.
Access Panel & 6 Screws
c) Disconnect the two wire connectors
from the from the switch terminals on
the Crown burner gas valve.
d) Push the locking tab and lift the switch
off the Crown burner gas valve holder
pins.
e) Disconnect the two 1/2˝ gas line ttings
from the gas valve.
f) Remove the screw from the gas manifold
clamp and remove the Crown burner
gas valve.
g) Check the rubber seal on the Crown
burner gas valve stem and make sure
that it is not cracked, or torn. If so, re-
place the seal.
GY Wire
WH Wire
Locking Tab
Pins
Switch
Crown Burner Gas Valve
Gas Line Fittings
Gas Manifold
Clamp Screw
Gas Valve
Seal
