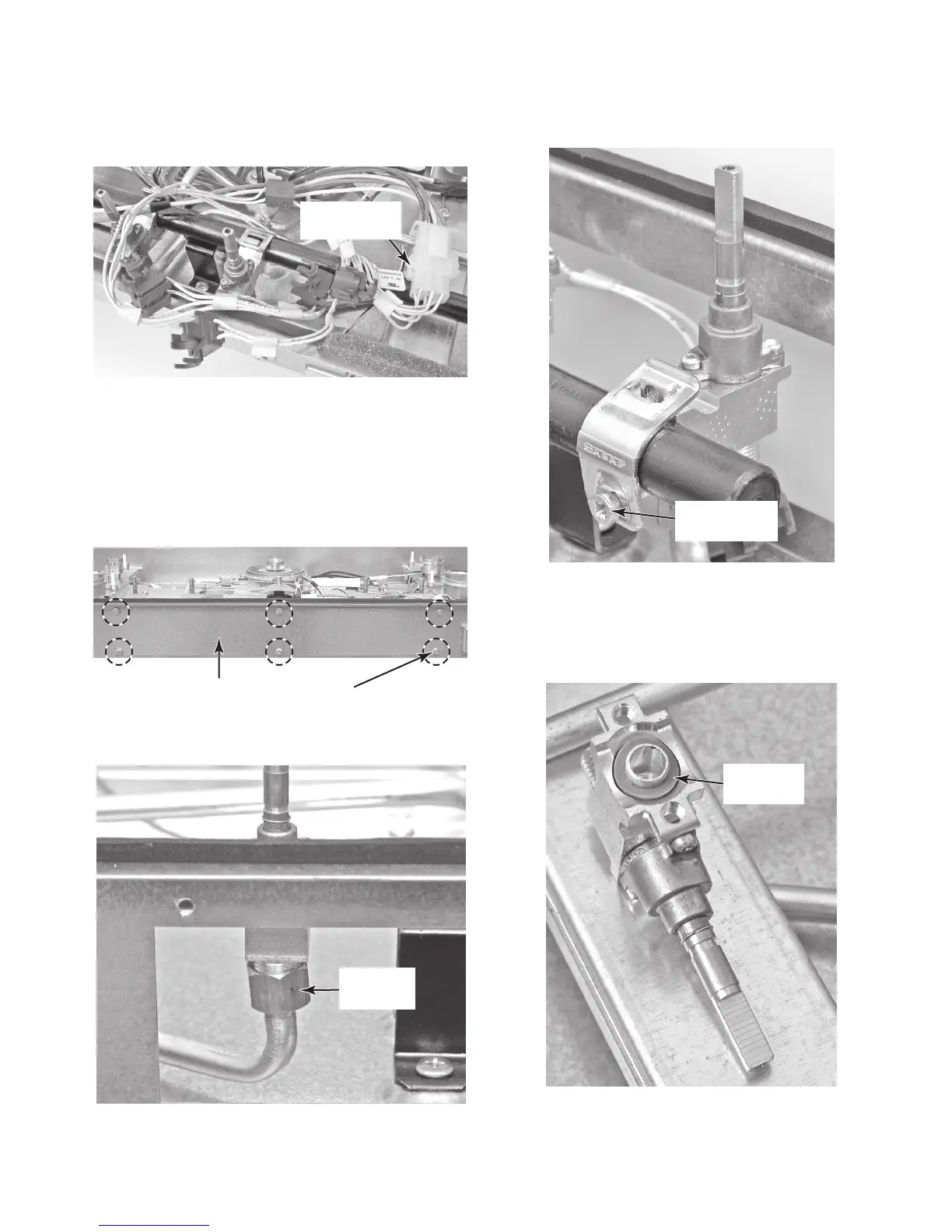

4. To remove a standard gas valve:
a) Remove the spark switch from the valve
you are accessing (see step 3).
b) Remove the six screws from the front
burner box access panel and remove
the panel.
d) Unlatch and disconnect the main wire
connector from the spark switches and
remove the switches.
Spark Switch
Connector
c) Disconnect the 1/2˝ gas outlet line t-
ting from the gas valve.
Access Panel & 6 Screws
d) Remove the screw from the gas mani-
fold clamp and remove the gas valve.
Gas Manifold
Clamp Screw
e) Check the rubber seal on the gas
valve stem and make sure that it is
not cracked, or torn. If so, replace the
seal.
Gas Valve
Seal
Gas Line
Fitting
