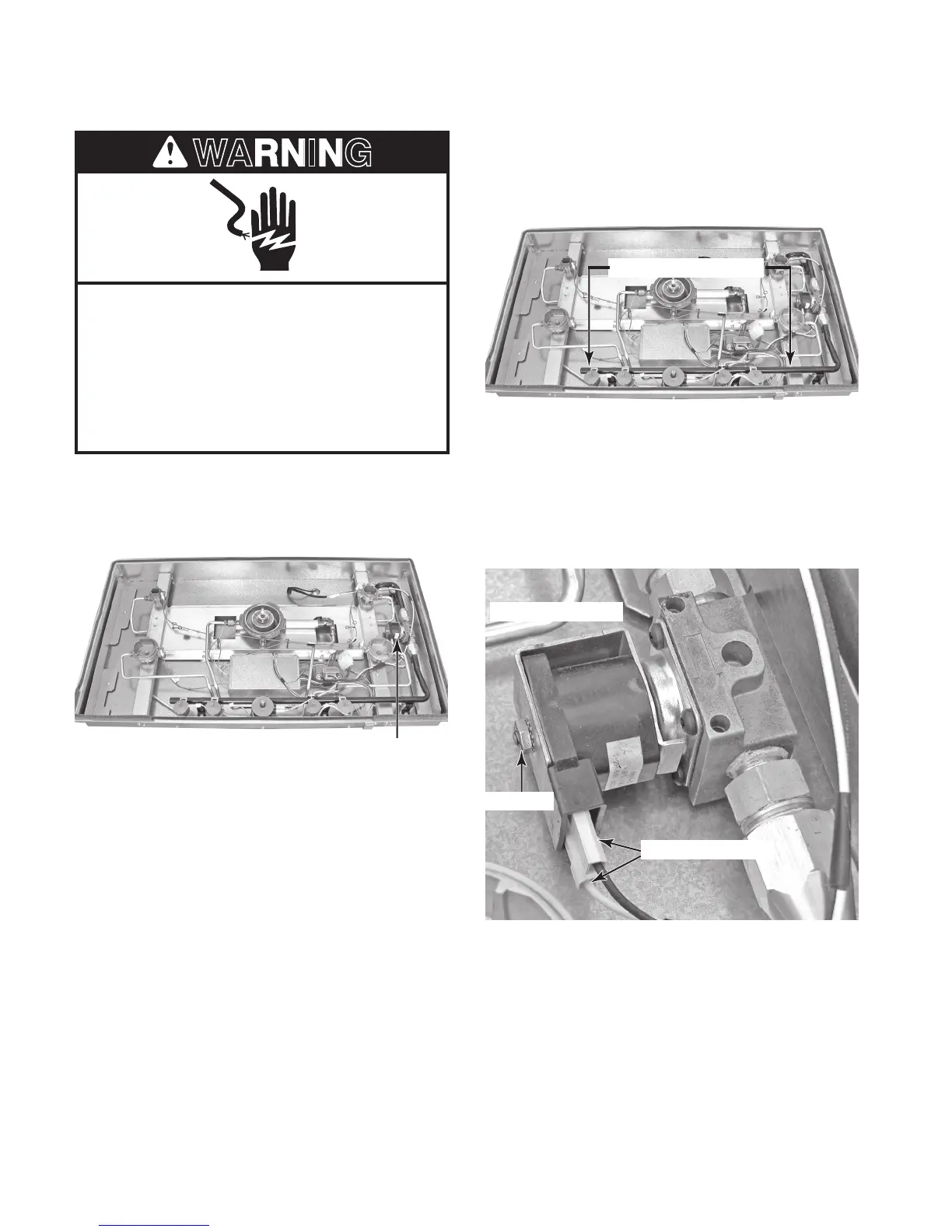

REMOVING THE GAS SHUTOFF VALVE
1. Unplug cooktop or disconnect power.
2. Remove the cooktop (see page 4-2 for the
procedure).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Gas Shutoff Valve
3. Disconnect the two wire connectors from
the gas shutoff valve terminals (see the
top right photo).
4. Remove the manifold pipe. (The gas shutoff
valve is serviced with the manifold pipe)
(see page 4-11 removing standard burner
from cooktop for the procedure).
Wire Connectors
Locknut
Gas Shutoff Valve
Manifold Pipe Screws
5. Remove the burner assembly then 4 screws
securing manifold pipe.
