4-1
COMPONENT LOCATIONS

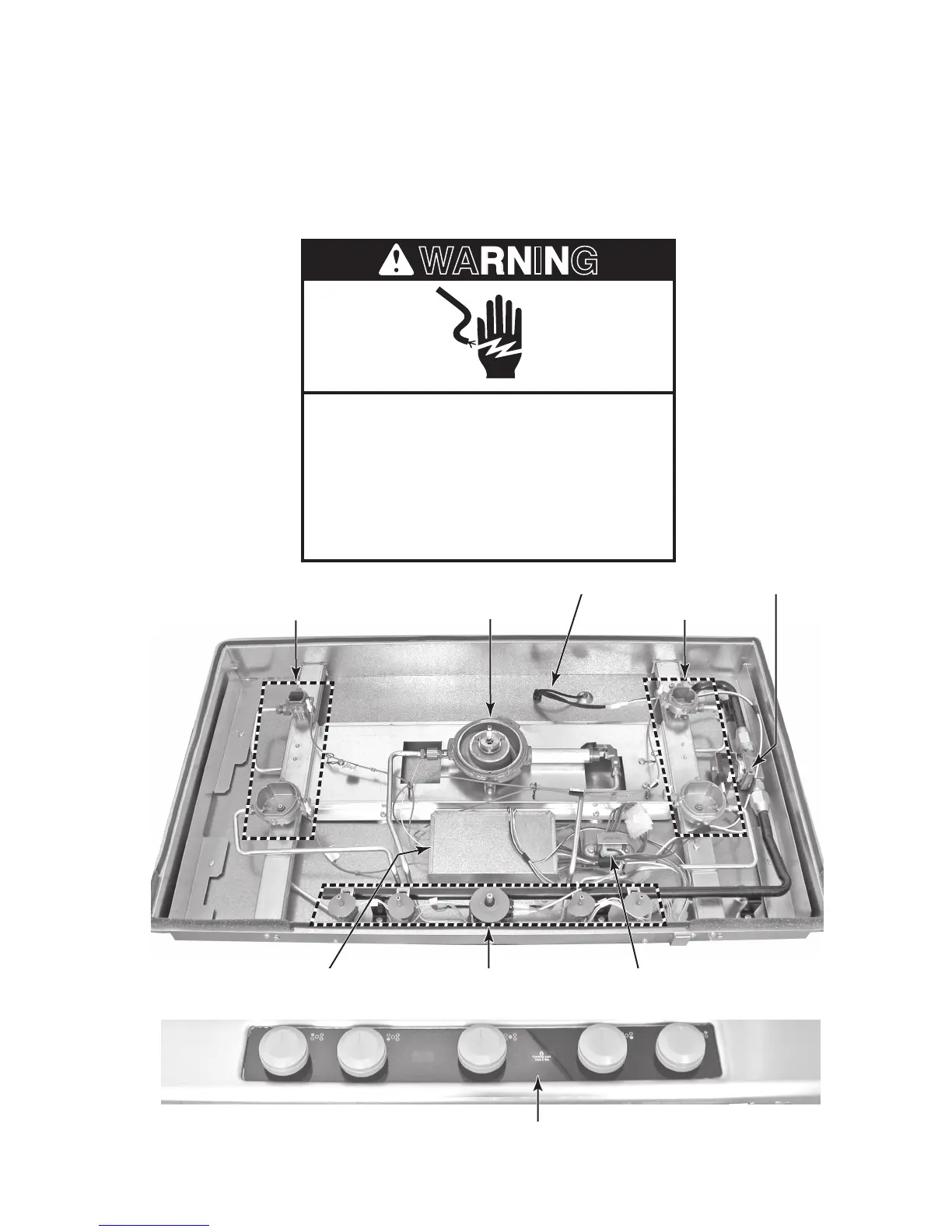

This section instructs you on how to service each component inside the KitchenAid Flush-Mount
Gas Cooktop. The components and their locations are shown below.
COMPONENT ACCESS
Left Standard Burners Right Standard BurnersCrown Burner
Power Supply Cord
Gas Shutoff Valve
(KFGU Model Only)
Gas Valves & Spark
Switches (5)
Spark Module Power Supply Transformer
Electronic Control (Part Of Cooktop)
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
