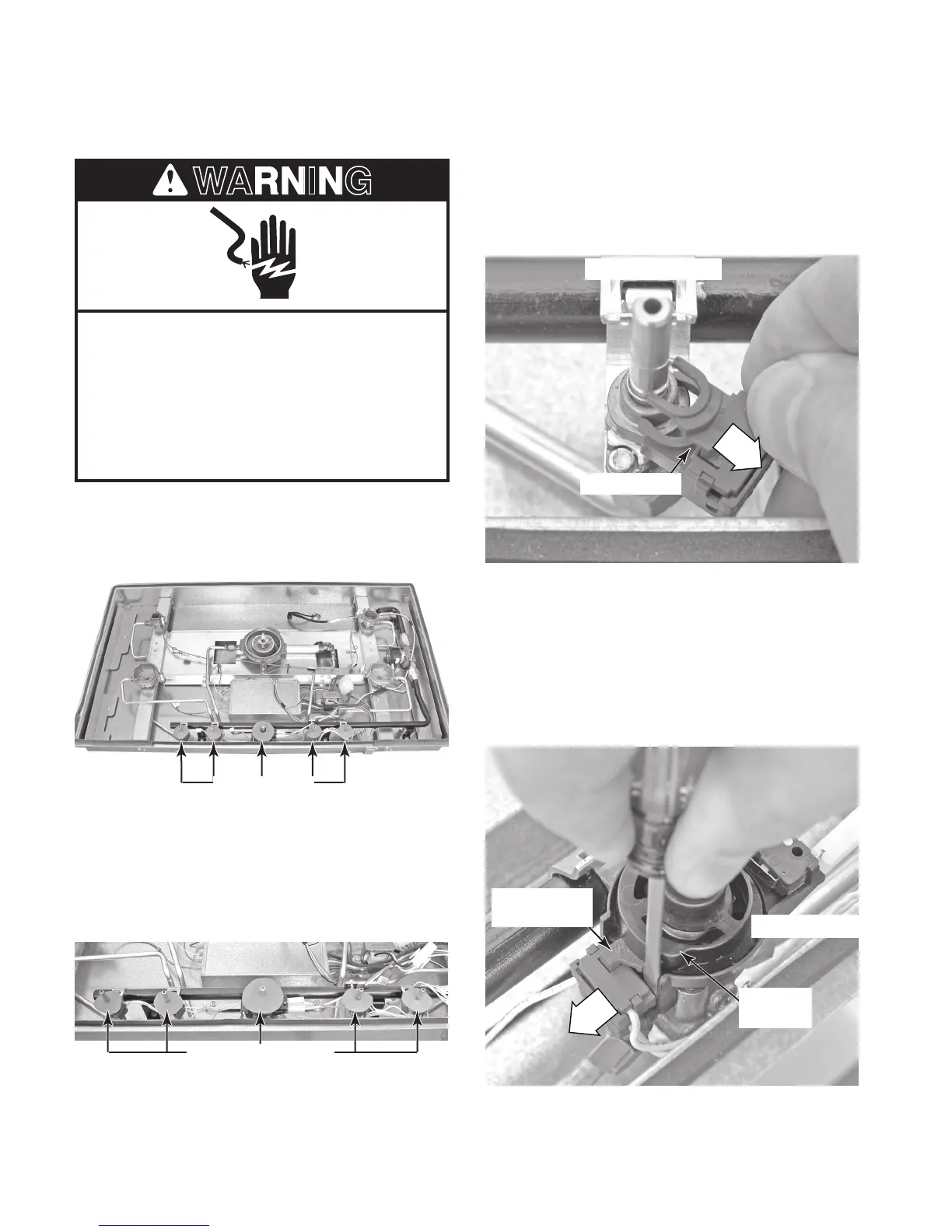

REMOVING THE SPARK SWITCHES, AND THE
STANDARD OR CROWN BURNER GAS VALVES
1. Unplug cooktop or disconnect power.
2. Remove the cooktop (see page 4-2 for the
procedure).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
b) Pull the spark switches off each of the
standard gas valves. Pull the switches
straight out from the valves to unclip
and remove them.
NOTE: The spark switches are serviced as an
assembly and cannot be serviced separately.
3. To remove the spark switches:
a) Remove the rubber covers from each
of the gas valves.
c) To remove the spark switch on the (cen-
ter) Crown burner, use a small-blade
screwdriver, and pry the switch off the
valve. NOTE: When you reinstall the
spark switch on the Crown burner, press
down on the spark switch actuator so
that it ts under the valve actuator.
Gas Valves
Gas Valve Covers
Spark Switch
Standard Burner
Continued on the next page.
Crown Burner
Spark Switch
Actuator
Pry
Off
Valve
Actuator
Pull
Out
