KitchenAid KFGS306VSS - Complete Installation

2-8
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, re, or electrical shock.
WARNING
4. Plug into a grounded 3 prong outlet.

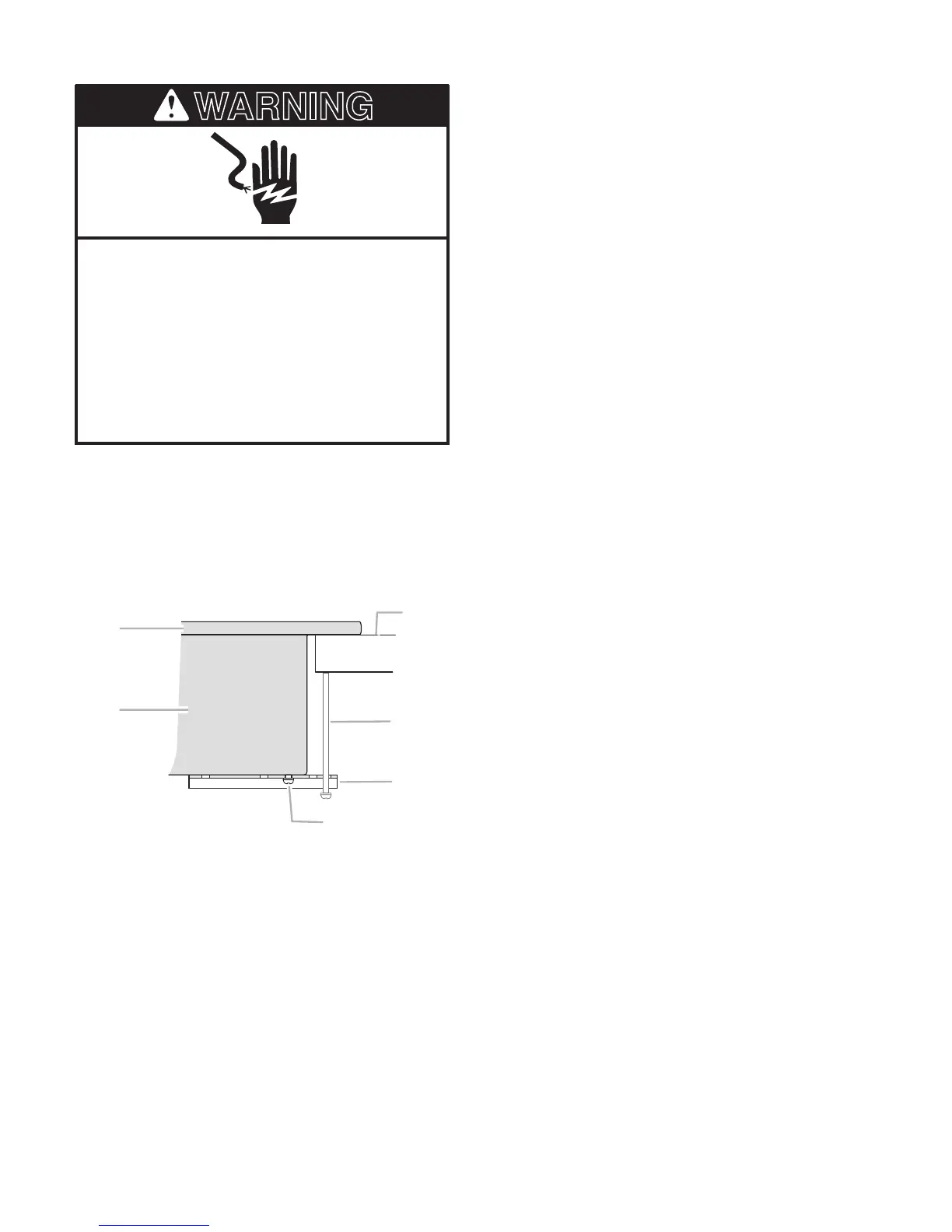

ATTACH COOKTOP TO
COUNTERTOP
NOTE: This section applies only if you are using
clamping brackets.
A. Glass cooktop
B. Cooktop base
C. Attachment screw
D. Clamping bracket (extends far
enough beyond cooktop base
to allow installation of
clamping screws)
E. 2½" (6.4 cm) clamping screw
F. Countertop
A
B
C
D
E
F
COMPLETE INSTALLATION
1. Place the 2 1/2" (6.4 cm) clamping screws
into the brackets.
2. Check that the cooktop is still level.
3. Useaat-bladescrewdrivertotightenthe
screws against the countertop. Do not
overtighten.
Electronic Ignition System
InitiallightingandgasameadjustmentsSur-
face burners use electronic igniters in place of
standing pilots. When the cooktop control knob
is pushed in and turned to the “LITE” position,
the system creates a spark to light the burner.
This sparking continues, as long as the control
knob is pushed in and turned to “LITE.”
Check Operation of Surface Burners
1. Push in and turn the surface burners control
knobs to the “LITE” position.
 Thesurfaceburnerameshouldlightwithin
4seconds.Thersttimeasurfaceburner
is lit it may take longer than 10 seconds to
light because of air in the gas line.
2. Check the ame on HI for a blue color.
It should be clean and soft in character.
No yellow tip, blowing or lifting of ame
shouldoccur.Occasionalorangeashes
arenormalandreectdifferentelements
in the air or gas.
3. Repeat at LO position.
4. After verifying the proper burner opera-
tion, authorized service company for as-
sistance
If burners do not light properly:
Turn surface burner control knob to the OFF •
position.
Check that the power supply cord is plugged •
in and the circuit breaker has not tripped or
the fuse blown.
Check that the gas shutoff valves are set to •
the “open” position.
Check that burner caps are properly posi-•
tioned on burner bases.
Recheck operation of surface burners. If a
burner does not light at this point, turn control
knobs to Off and contact your dealer or autho-
rized service company for assistance
