2-7
Use only pipe-joint compound made for use
with Natural and LP gas.
Do not use TEFLON® tape. You will need to
determinethettings requireddependingon
your installation.

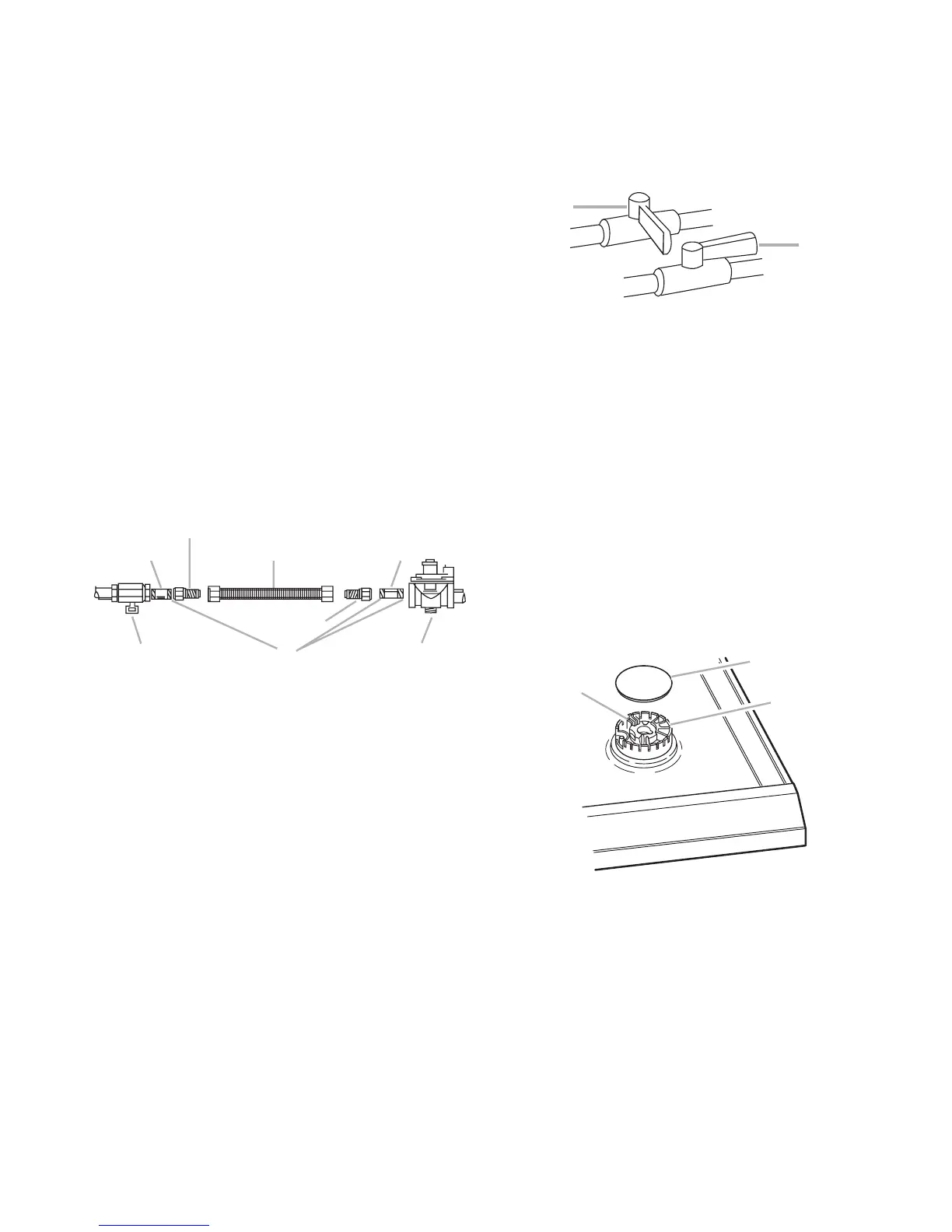

Typical exible connection
1. Apply pipe-joint compound made for use
with LP gas to the smaller thread ends of
theexibleconnectoradapters(seeGin
following illustration).
2. Attach 1 adapter and nipple to the gas
pressure regulator and the other adapter
and nipple to the gas shutoff valve. Tighten
both adapters and nipples.
3. Use a 15/16" combination wrench and
pliers to attach the exible connectorto
the adapters. Check that connector is not
kinked.
A.

" nipple
B.

" adapter
C. Flexible connector
D. ½" nipple
E. Gas pressure regulator
F. ½" adapter
G. Use pipe-joint compound.
H.Manual gas shuto valve
A
B
C
D
E
G
F
H
Complete Connection
1. Open the manual shutoff valve in the gas
supply line. The valve is open when the
handle is parallel to the gas pipe.
A. Closed valve
B. Open valve
A
B
2. Test all connections by brushing on an
approved noncorrosive leak-detection
solution. Bubbles will show a leak. Correct
any leak found.
3. Remove surface burner caps and grates
from parts package. Align notches in burner
caps with pins in burner base. Burner caps
should be level when properly positioned.
If burner caps are not properly positioned,
surface burners will not light. Place burner
grates over burners and caps.
A. Igniter electrode
B. Burner cap
C. Burner base
A
B
C
