4-10

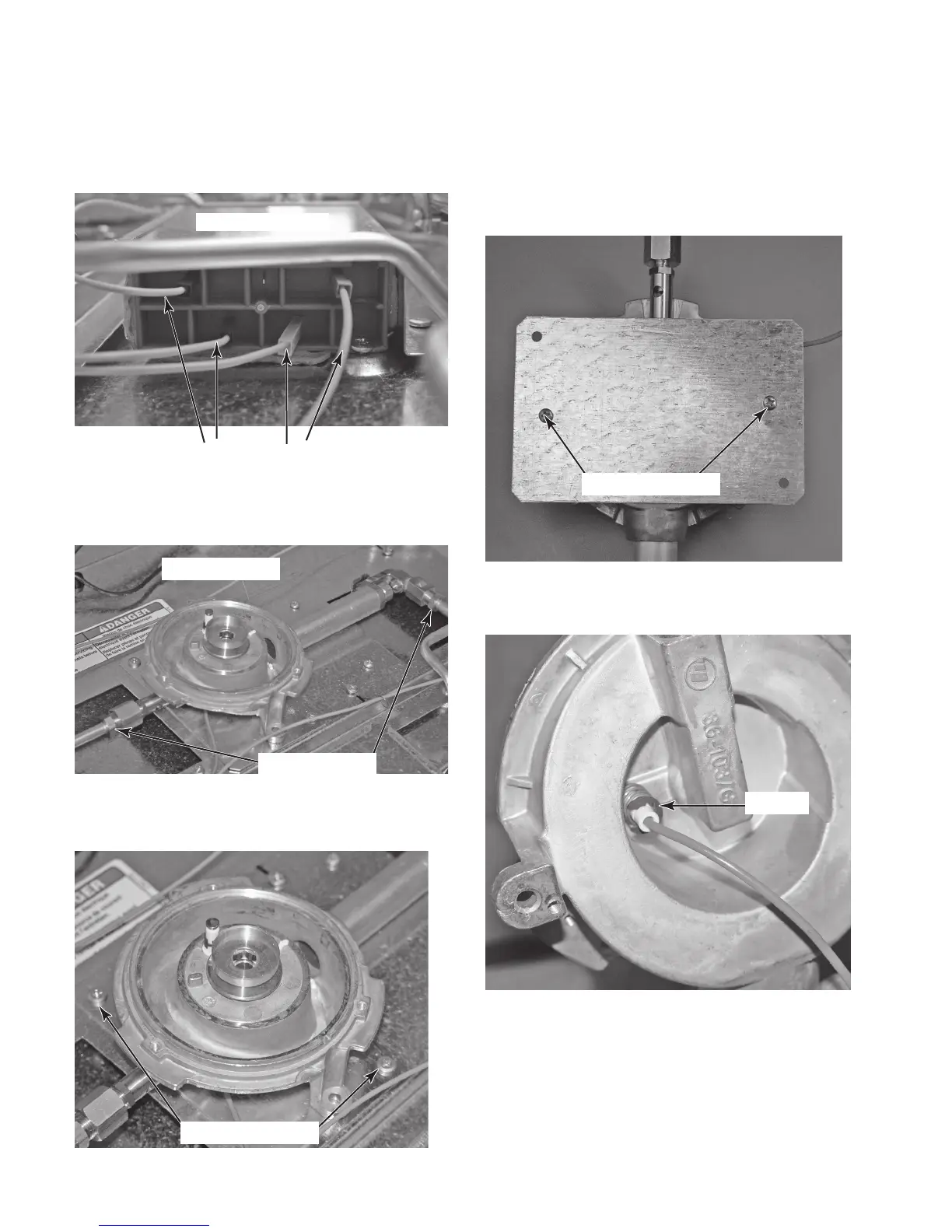

Igniter Wires
Spark Module
b) Disconnect two gas ttings from crown
burner.
Gas Fittings
Crown Burner
c) Remove two screws from crown burner
mounting plate.
Mounting Screws
d) Lift crown burner up and rotate to ex-
pose two screws on back of mounting
plate.
e) Remove two screws from back of
mounting plate attached to crown
burner and remove mounting plate.
Mounting Screws
f) Remove c-clip from crown burner igniter
to release igniter from crown burner.
4. To remove spark igniter from crown
burner.
a) Disconnect spark ignitor wire from spark
module.
C-Clip
g) Pull igniter and igniter wire out of top
of crown burner to remove.
