2-15

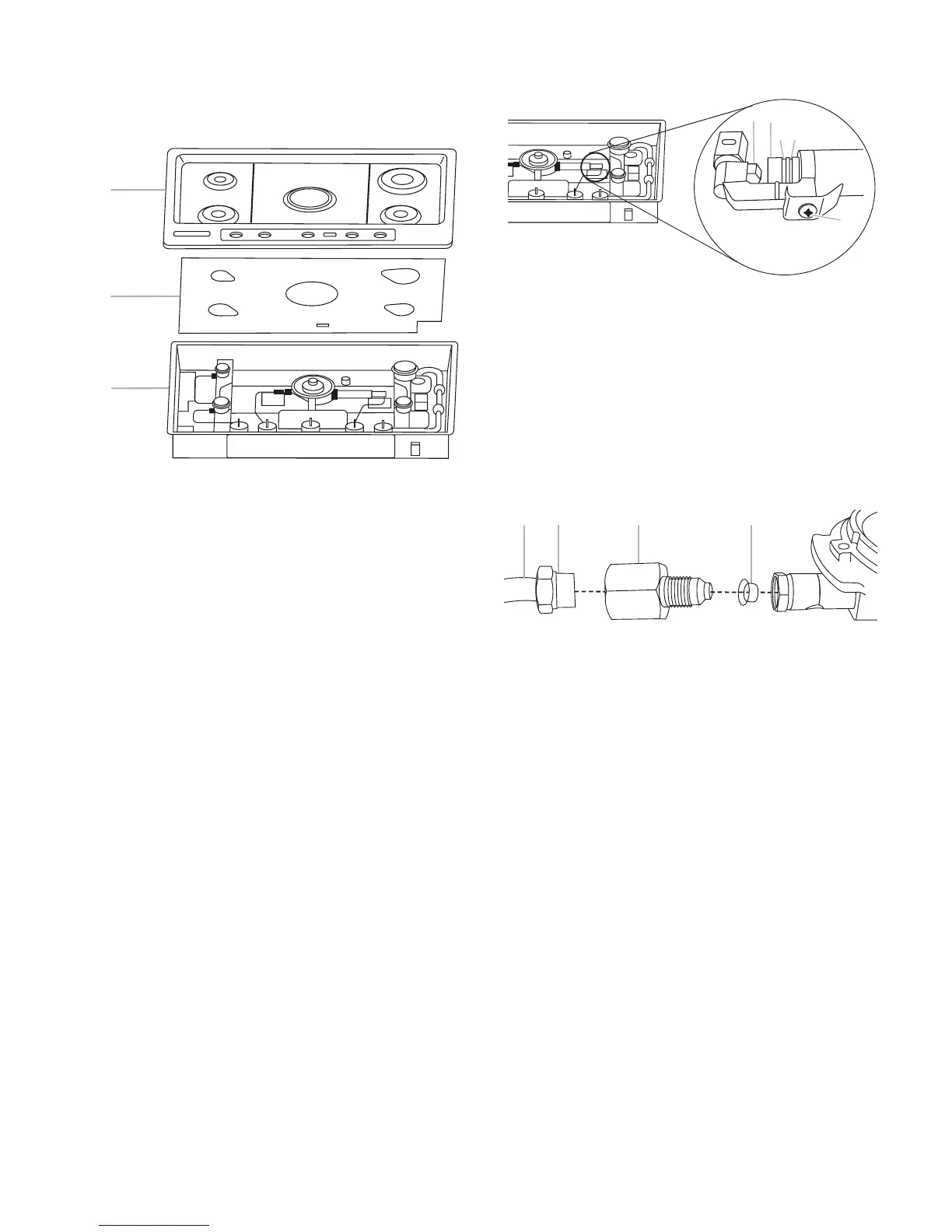

On all models, remove the metal cooktop and
the sheet of insulation from the cooktop base.
A. Metal cooktop
B. Sheet of insulation
C. Cooktop base
B
C
A
9. To Convert Right or Left Burners:
Insert 7.0 mm nut driver down onto the gas •
oricespudandremovebyturningitcoun-
terclockwise and lifting out.
Setgasoricespudaside.•
ReplacewithcorrectLPgasoricespud.See•
theLPGasOriceSpudCharts.
10. To Convert Center Burners:
Use 10.0 mm wrench to loosen and remove •
theorice.
ReplacewithcorrectLPgasoricespud.See•
theLPGasOriceSpudCharts.
Use Phillips screwdriver to loosen the venturi •
screw. Slide the brass venturi into the injec-
tor, stop at the second groove (C). Securely
tighten the venturi screw.
A. Orice
B. Venturi
C. Second Groove
(16.0 mm LP gas
setting)
D. First groove (12.0 mm
natural gas setting)
E. Venturi screw
C
D
A
B
E
Use 15.0 mm wrench to loosen the nut secur-•
ingthetubetotheoricepack.Removethe
tubefromtheoricepack.
A. Tu be
B. Attachment nut (15.0 mm)
C. Adapter nut (17.0 mm)
D. Orice spud
C
D
A
B
Use 17.0 mm wrench to loosen and remove •
theoricepack.
ReplacewithcorrectLPgasoricespud.•
SeetheLPGasOriceSpudCharts.
Replace adapter nut and secure with 17.0 •
mm wrench. Reattach tube and secure at-
tachment nut with 15.0 mm wrench.
11. PlaceNaturalgasoricespudsinplastic
parts bag for future use and keep with
literature package.
12. Replace sheet of insulation.
13. On KFGU models only, reattach wire har-
ness to the control panel on the cooktop
glass.
14. Replace the metal cooktop and tighten all
the screws to secure cooktop to base.
15. Replace burner bases and tighten all the
oriceholderscrews.Replaceburnercaps.
If necessary, replace burner ring.
