KitchenAid KFGS306VSS - Page 56

6-6

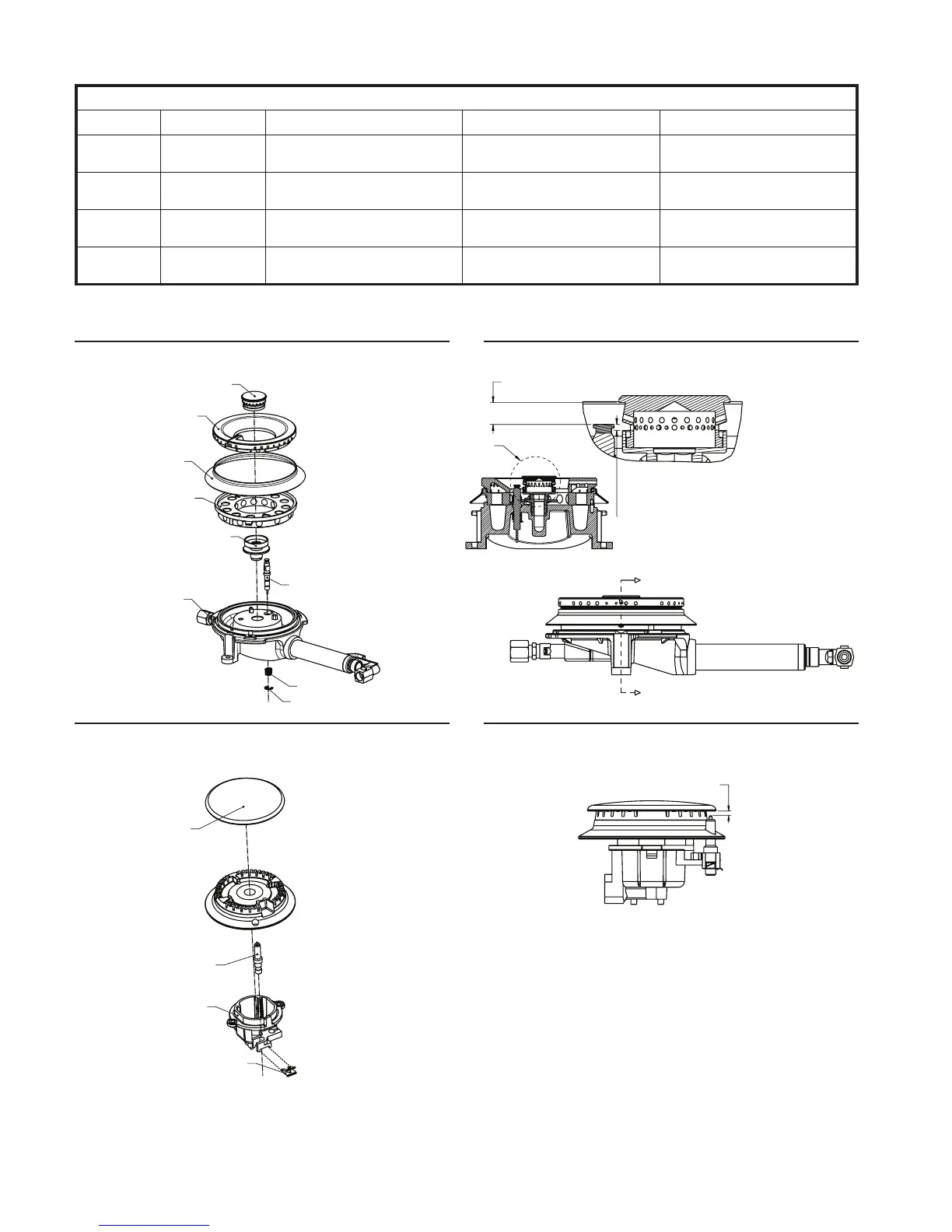

CAP
OUTER
SPREADER
BEAUTY
RING
CROSS
RING
INNER CROWN
SUPPORT
BURNER
BODY
ELECTRODE
SPRING
FASTEN SPRING
ELECTRODE ASSEMBLY FOR CENTER BURNER
CAP
ELECTRODE
INJECTOR
HOLDER
ELECTRODE
CLIP
ELECTRODE ASSEMBLY FOR
RF, RR, LF, LR BURNERS
SEE DETAIL B
A
A
DETAIL B
SECTION A-A
6.31
+0.70
-1.20 mm
(0.248"
+0.028
-0.047
)
1.70
+0.70
-1.20 mm
(0.067"
+0.028
-0.047
)
2.50±0.5mm (0.098"±0.019)
ELECTRODE GAP FOR RF, RR, LF, LR BURNERS
TRANSFORMER TABLE
SNOITIDNOCSTINUPYTTSETECNATSISER
Rp
Primary Coil
Resistance
60 ± 6 Ω 22 °C
Rs 1-2
Secondary Coil
Resistance
4.7 ± 0.5 Ω 22 °C
Rs 2-3
Secondary Coil
Resistance
4.7 ± 0.5 Ω 22 °C
Rs 4-5
Secondary Coil
Resistance
306 ±30 Ω 22 °C
ELECTRODE GAP FOR CENTER BURNER
