12
Operation
Lowering
Lifting
Wheel cover side
Read the "Safety precautions" Operation on pages 7 to 9 carefully before use and follow the instructions.

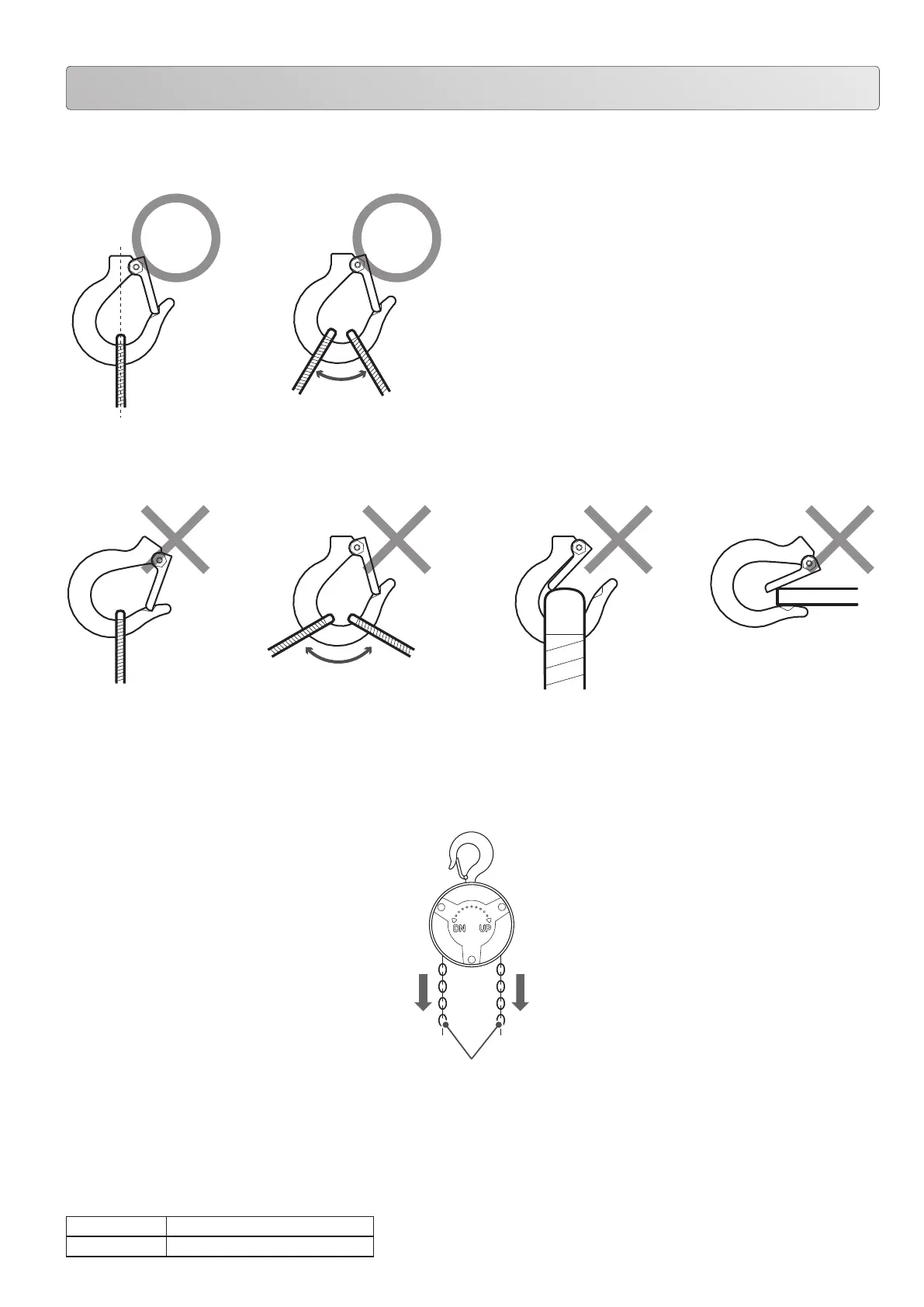

Correct way to lift a load
Operation method
Avoid the dangerous hooking method shown in the following diagrams.
Hang on the axis of
the hook.
The holding object or
the sling is not hooked
in the correct position.
More than 60 degrees.
The angle is too wide.
The hook latch does
not close.
The load is applied at
the tip of the hook.
When the hand chain on the right,
as viewed from the wheel cover
side, is pulled down (in an UP
direction), the load is lifted.
When the hand chain on the left,
as viewed from the wheel cover
side, is pulled down (in a DN
direction), the load is lowered.
This product is designed for a rated load to be hoisted by pulling the hand chain with a force shown in the "Pull to lift
load" table below or less. If an excessive load is applied, the overload limiter will operate. In this situation, immediately
stop the operation and lighten the load.
Pull to lift load:
CX003 147 N (15kgf)
CX005 187 N (19kgf)
60 degrees or less.
To Next Page
