KITO CX005 User Manual

16
8
5
6
3
16
17
18
20
9
12
1
11
15
22
35
36
27
28
29
23
23
31
32
18
33
34
24
25
26
30
13 21 19
14
2
10
4
37
38
7
3
4

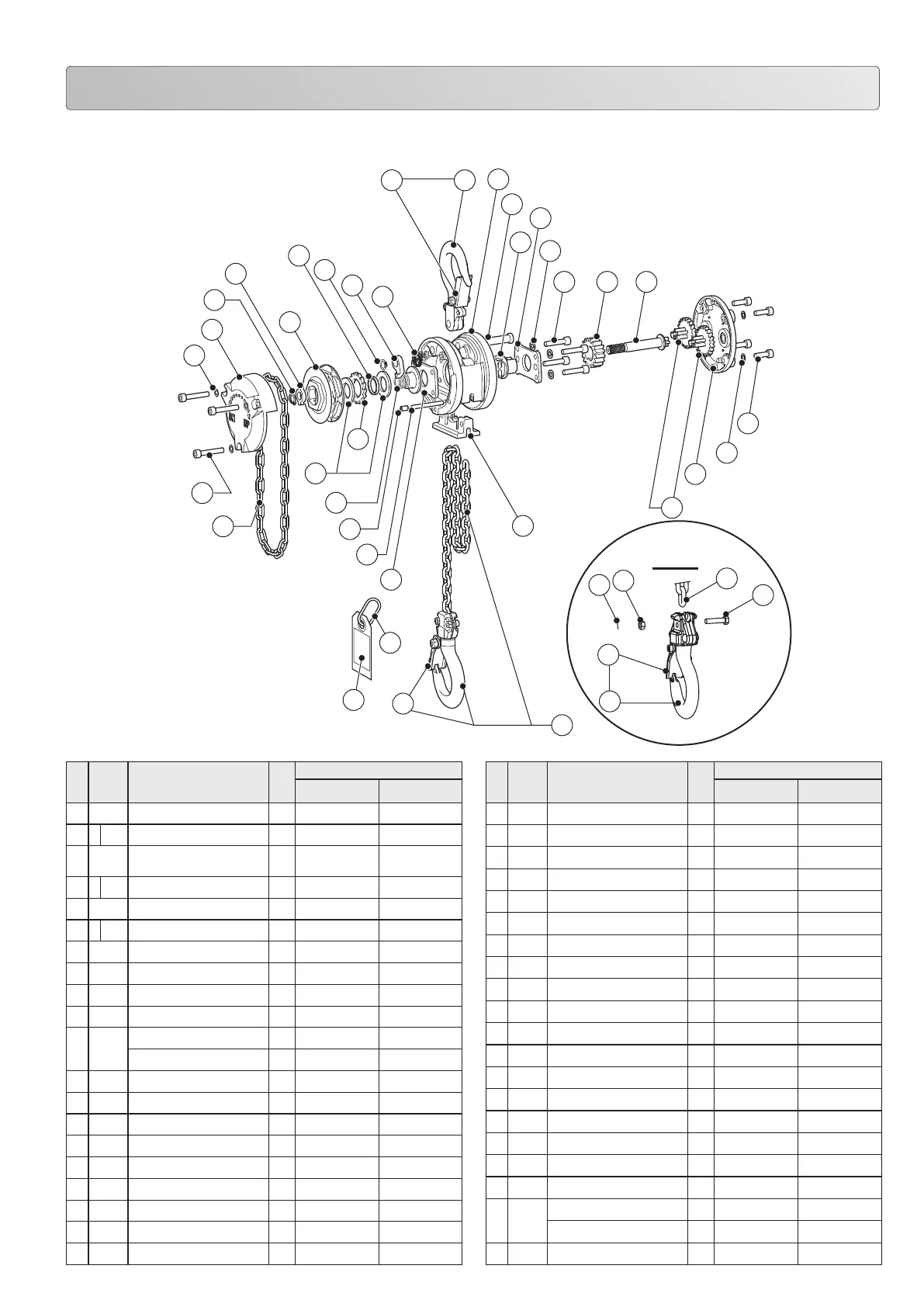

Parts List
Fig.
No.
Part No. Part Name
Parts
per
Hoist
Part code
CX003 CX005
1 1001 Top hook Set 1
L1XA003-1001 L1XA005-1001
2 071 Hook latch Assembly 1
L1XA003-1071 L1XA005-1071
3 1021
Bottom hook set
with 2.5m Load chain
1
C1XA003-1011
-
4 071 Hook latch Assembly 1
L1XA003-1071
-
3 1021 Bottom hook set 1 -
L1XA005-1021
4 071 Hook latch Assembly 1 -
L1XA005-1071
5 841 Load chain 1 -
KAUN043-0000
6 041 Chain pin 1 -
L1LA005-9041
7 042 Split pin 1 -
J1PW02-016008
8 049 Slotted nut 1 -
L1LA005-9049
9 5103
Gear Case Assembly (Europe) 1
C1XG003-5103 C1XG005-5103
Gear Case Assembly (Other) 1
C1XD003-5103 C1XD005-5103
10 101 Frame A 1
C1XA003-9101 C1XA005-9101
11 102 Frame B 1
C1XA003-9102 C1XA005-9102
12 6104 Body assembly 1
C1XA003-6104 C1XA005-6104
13 106 Socket head cap screw 4
J1BE1-0502525 J1BE1-0503522
14 107 Spring lock washer 4
J1WS011-20050 J1WS011-20050
15 116 Load sheave 1
C1XA003-9116 C1XA005-9116
16 162 Chain guide 1
C1XA003-9162 C1XA005-9162
17 108 Socket head cap screw 4
J1BE2-0501515 J1BE2-0501515
18 109 Conical lock washer 7
C1XA003-9109 C1XA003-9109
Fig.
No.
Part No. Part Name
Parts
per
Hoist
Part code
CX003 CX005
19 111 Pinion 1
C1XA003-9111 C1XA005-9111
20 112 Gear #2 2
C1XA003-9112 C1XA005-9112
21 114 Load gear 1
C1XA003-9114 C1XA005-9114
22 5115 Hand wheel assembly 1
C1XA003-5115 C1XA005-5115
23 117 Snap ring 2
J1SS000-00009 J1SS000-00009
24 151 Friction plate 2
C1XA003-9151 C1XA005-9151
25 152 Ratchet disc 1
C1XA003-9152 C1XA005-9152
26 153 Friction disc 1
C1XA003-9153 C1XA005-9153
27 154 Bushing 1
C1XA003-9154 C1XA005-9154
28 155 Pawl 1
C1XA003-9155 C1XA003-9155
29 5179 Pawl spring assembly 1
C1XA003-5179 C1XA005-5179
30 163 Top pin 1
C1XA003-9163 C1XA005-9163
31 171 Wheel cover 1
C1XA003-9171 C1XA005-9171
32 176 Socket head cap screw 3
J1BE2-0503022 J1BE2-0503522
33 177 End pin 1
C1XA003-9177 C1XA005-9177
34 178 Hexagon socket set screw 1
J1TB011-05008 J1TB011-06008
35 203 Cam guide 1
C1XA003-9203 C1XA003-9203
36 842 Hand chain 1
K7SX025-0000 K7NZ035J0000
37 933
Warning tag (Europe) 1
ER1BS9686 ER1BS9686
Warning tag(Other) 1
E7AR003S9886 E7AR003S9886
38 045 Chain stopper link 1
L5BA008-9045 L5BA016-9045
CX005
