- Check that the information on the box and the product match the details of your order.
- Check to see whether the product has been deformed or damaged by an accident in transit.
- Fill in the blank provided in the right table with the Lot NO. (written
on the nameplate on the product), the date of purchase, and the
name of the store where you purchased the product.
* When requesting repair or ordering a chain hoist part, please
inform us of these pieces of information together.
- Fill in the spaces provided in the right table with
the distance "a" between embossed marks, the
hook width "b" and the thickness "c" for both the
top and bottom hook. (These figures are referred in
maintenance.)

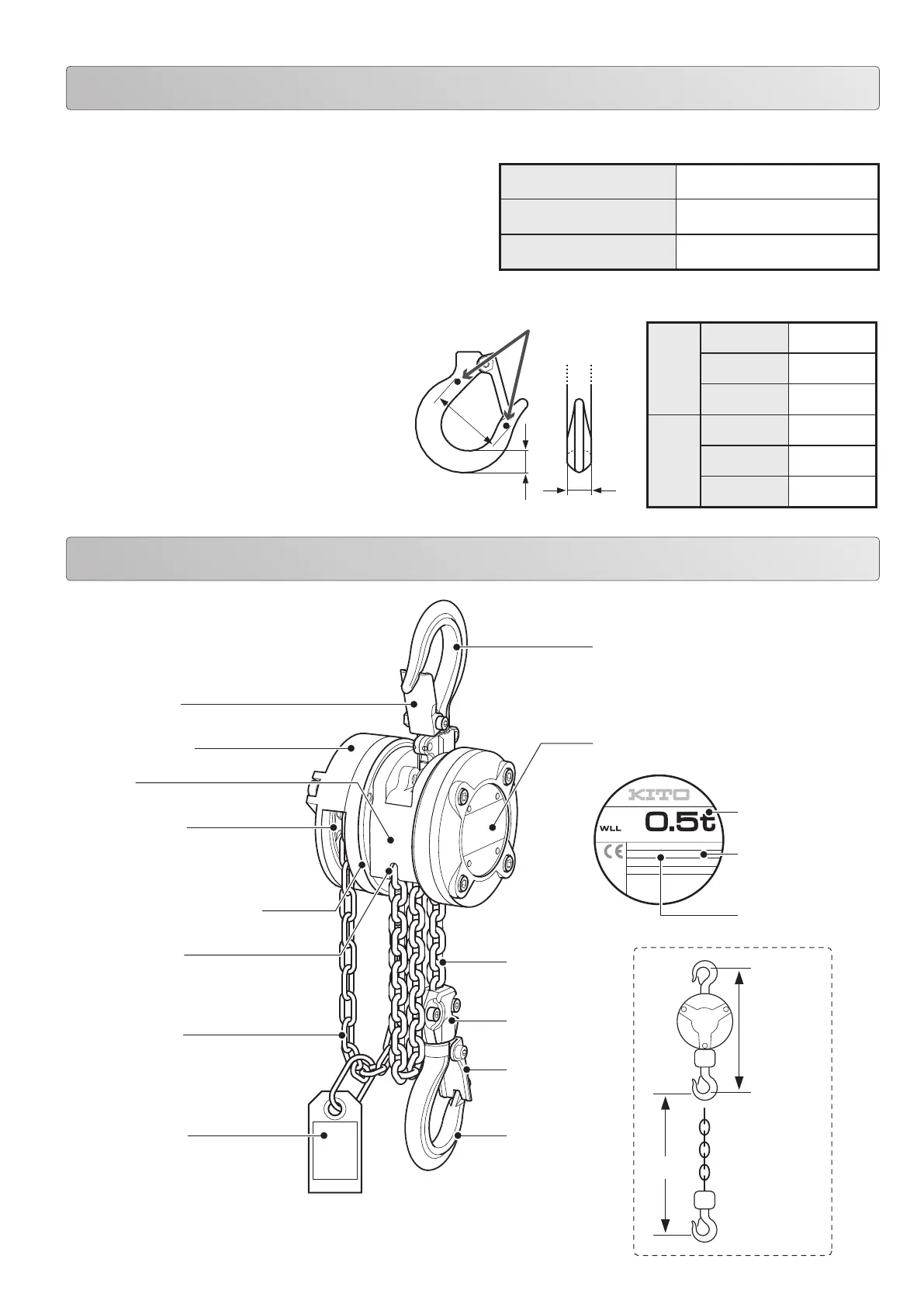

Dimensions when new
Unpacking
Main parts
CODE:
LOAD CHAIN:
LOT No: CX1A
SERIAL No:
MFG.YEAR:
Yamanashi 409-3853 Japan
MADE IN JAPAN
Equipped with OVERLOAD LIMITER
Rated load
(ex. of CX005)
LOT No.
Model
Hand wheel
Over load limiter (OLL)
built-in
Load chain
Load chain end at no-load side
Brake (built into the body)
Hook latch
Wheel cover
Body
Hand chain
Load chain
Latch
Bottom yoke
Nameplate
(rating / warning)
Top hook
Bottom hook
Warning tag
Minimum
Headroom
Lift
c
a
Embossed mark
Top
hook
Dimension a
mm
Dimension b
mm
Dimension c
mm
Bottom
hook
Dimension a
mm
Dimension b
mm
Dimension c
mm
Lot NO. CX1A-
Date of purchase
Store
