KITO EQ series User Manual

27
■

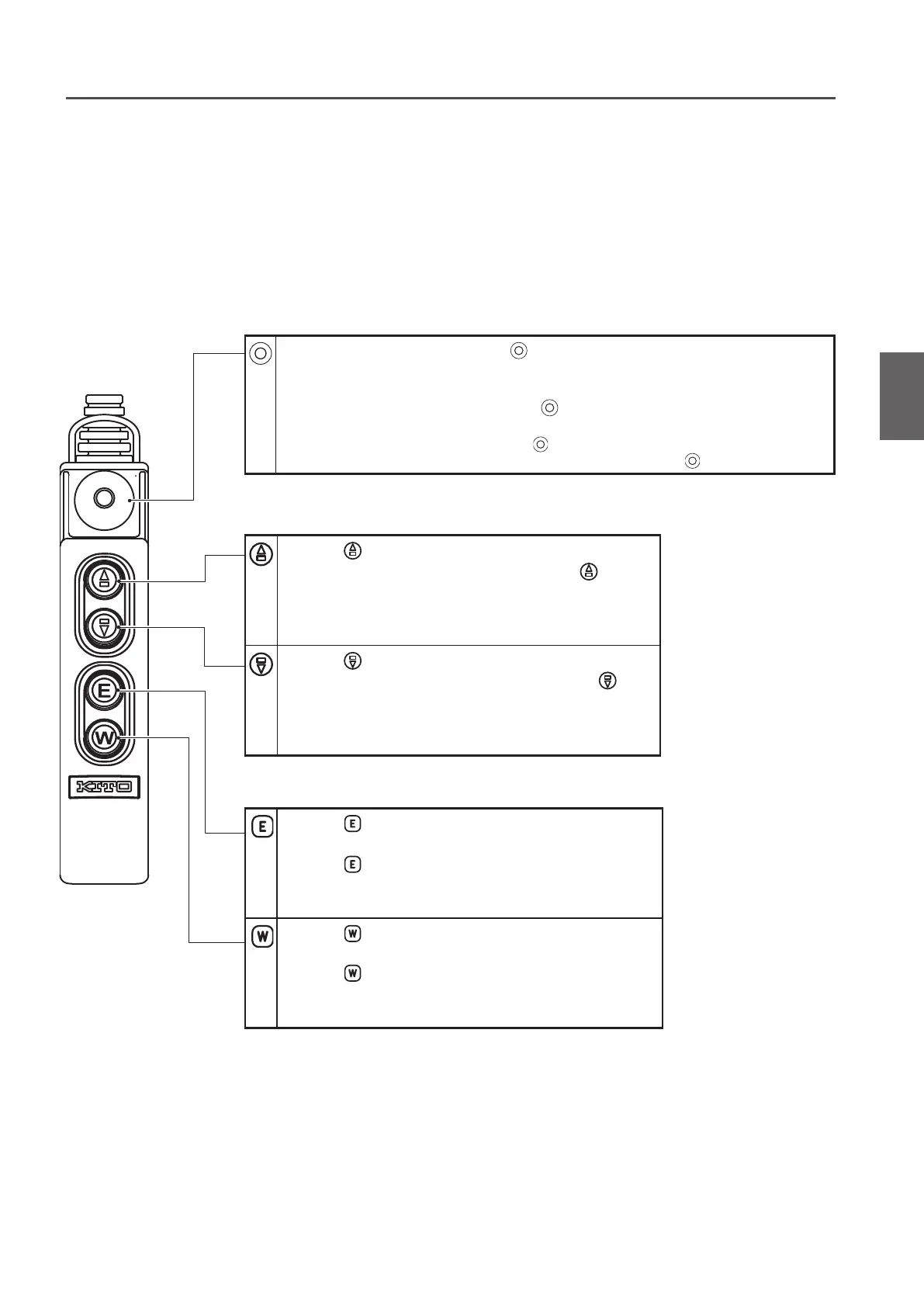

5-Push Button Switch Set
5-Push Button Switch Set is equipped with a lock type emergency stop button (VFD reset button) and lift/lower
push buttons. Two-step push button switch is mounted as Lift/lower push button switches in accordance with the
specification of dual speed VFD specification. Refer to the operation method of the corresponding specification.
Moving direction of the trolley is expressed as East/West for traveling motion in the operational instruction of the
Push Button Switch Set.
●
Lift/Lower Button
●
Travel Button
●
Emergency Stop Button (VFD Reset Button)
●
Operation Button
1) Press the Emergency Stop Button deeply when carrying out an emergency stop or
VFD reset.
•
The button is locked at the pressed end.
2) Pull or turn the Emergency Stop Button clockwise to cancel the lock.
•
Press-locked button returns to the original position.
* Do not pull or turn the Emergency Stop Button hard or excessively.
* When the electric chain hoist is not used, press the Emergency Stop Button deeply to the end.
1) Press button to move the trolley to the east at low
speed.
2) Press button further to the end to move the trolley to
the east at high speed.
•
The trolley stops when the button is released.
1) Press button to move the trolley to the west at low
speed.
2) Press button further to the end to move the trolley to
the west at high speed.
•
The trolley stops when the button is released.
1) Press button to lift the load.
2) When lifting the load at high speed, press the button
further to the end.
•
The electric chain hoist stops when the button is released.
1) Press button to lower the load.
2) When lowering the load at high speed, press the
button further to the end.
•
The electric chain hoist stops when the button is released.
How to Use How to Operate the Push Button Switches
1
(to be continued)
