KITO EQ series User Manual

38

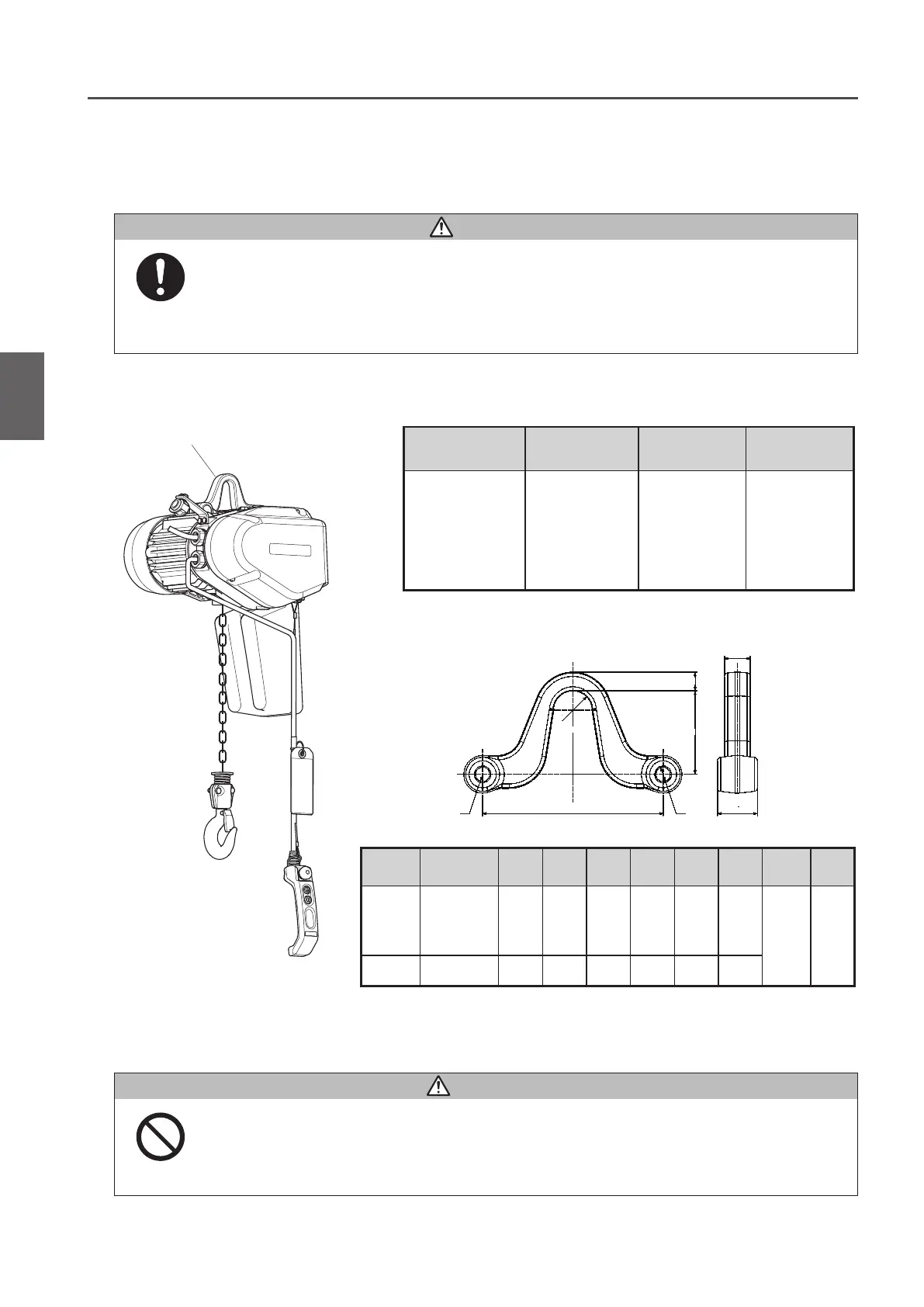

Chapter 1 Handling the Product
■
Combination with the Trolley
* You do not have to read the contents below if you use the hoist as Hook Suspension Model. Go to "Checking Power
and Power Cable" (P48).
• Adjust the rail width during assembling and install.
• Be careful for the Power Cable and Push Button Switch Set Cord are not pulled off or entangled within the
area of traveling area.
Failure to comply with these instructions may result in death or serious injury.
Mandatory
1
AssemblingCombination with the Trolley
DANGER
Assembling (continued)
Hoist itself, or combination with KITO EQ trolley or a trolley for some light cranes.
Suspension Eye
Part name Usage
Part code
125kg to 500kg
Part code
1t
Suspension Eye
Hoist itself, or
combination
with KITO EQ
trolley or a trolley
for some light
cranes.
EQ1CI9001 EQ1DI9001
■
Dimensions of Suspension Eye
Code
Part
code
a b c d e f g h
001IS,
003IS,
004IS,
005IS
EQ1CI9001
139.6
67.5 15 18 16 33
Ø12.2 16
010IS EQ1DI9001
153.6
71 16.5 16 22 34
■
Combining with the Motorized Trolley
CAUTION
• You cannot combine other KITO product (old model) with the Model EQ Electric Chain Hoist.
Prohibited
g
ah
c
d
e
b
i
f
