Assembling Assembling Parts to Electric Chain Hoist
1
■

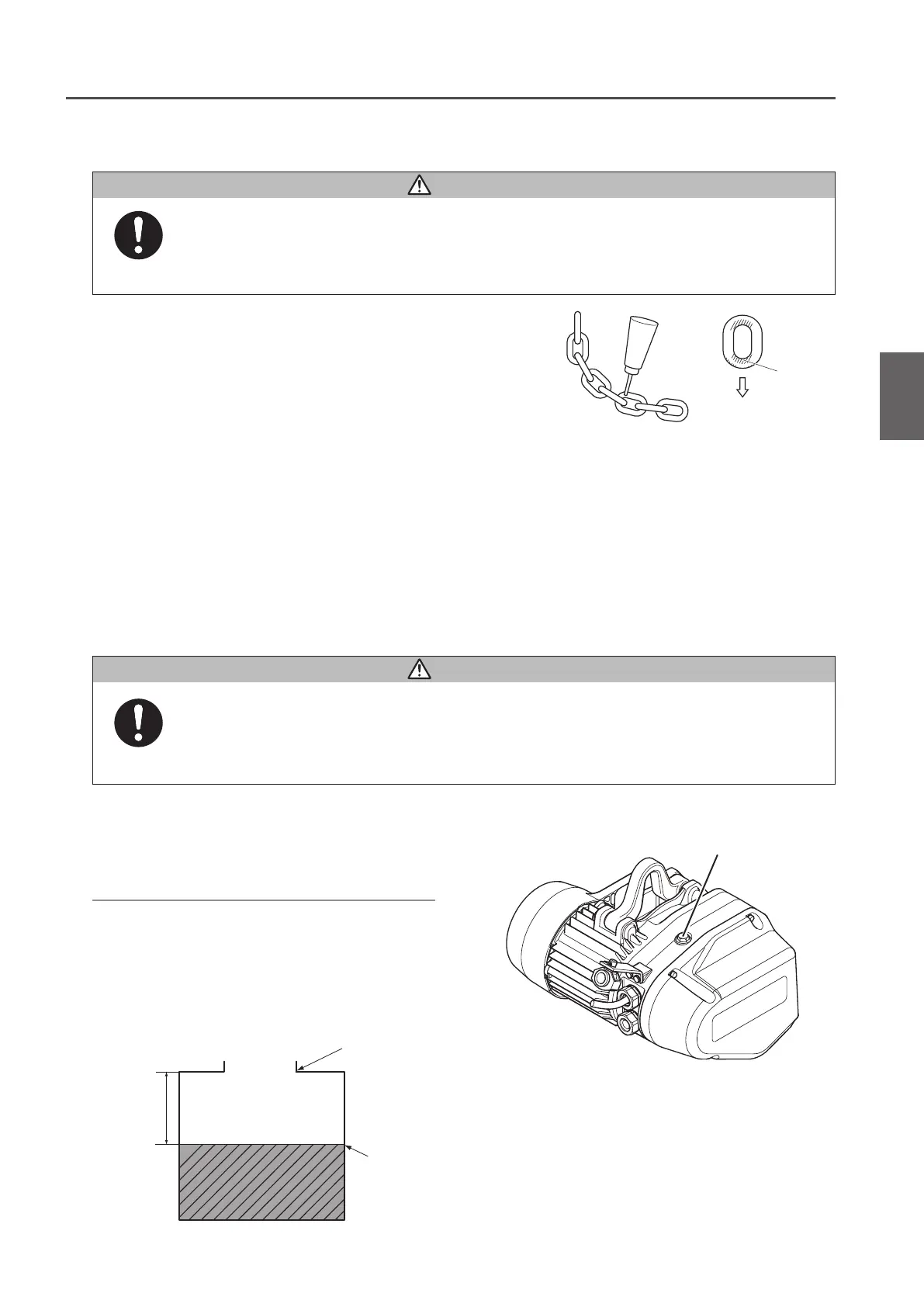

Gear Oil
Inside of the Gear Case is filled with gear oil at the shipping. The level of the oil filled with specified amount comes
to the height of the inspection hole. Check the oil level visually.
●
Cheking the Gear Oil Amount
1) Remove the Oil Plug on the upper Main
Body
2) Insert the check bar from the Oil check
hole to check the oil level.
(The normal distance between the hole
and the oil level is between 107 to 111
mm for the body size D, and 101 to 105
mm for the body size C.)
• Be sure to apply lubricant on the Load Chain. Do not carry out oiling work in the place near the fire or arc.
Otherwise it will result in fire.
Mandatory
• Use genuine gear oil.
Use of the gear oil other than the genuine oil (including mixed use) will result in death or serious injury due to the drop of
the lifted load.
Mandatory
Load
Applied
position
● Remove dust and waterdrops attached on the Load Chain and
then apply lubricant. Application of lubricant influences on the life
of the Load Chain considerably. Apply the lubricant sufficiently.
Use the following genuine lubricant.
• Epinoc Grease AP (N)0 (Nippon Oil Corporation)
• Consistency No.0 (Industrial general lithium grease)
● Release all loads from the Load Chain and apply the lubricant all
over the Load Chain.
After application of the lubricant lift/lower the electric chain hoist
without load to spread the lubricant on the Load Chain.
DANGER
DANGER
(to be continued)
Distance
to the oil
surface
Oil check hole
Oil surface
Oil plug
