KITO EQ series User Manual

53

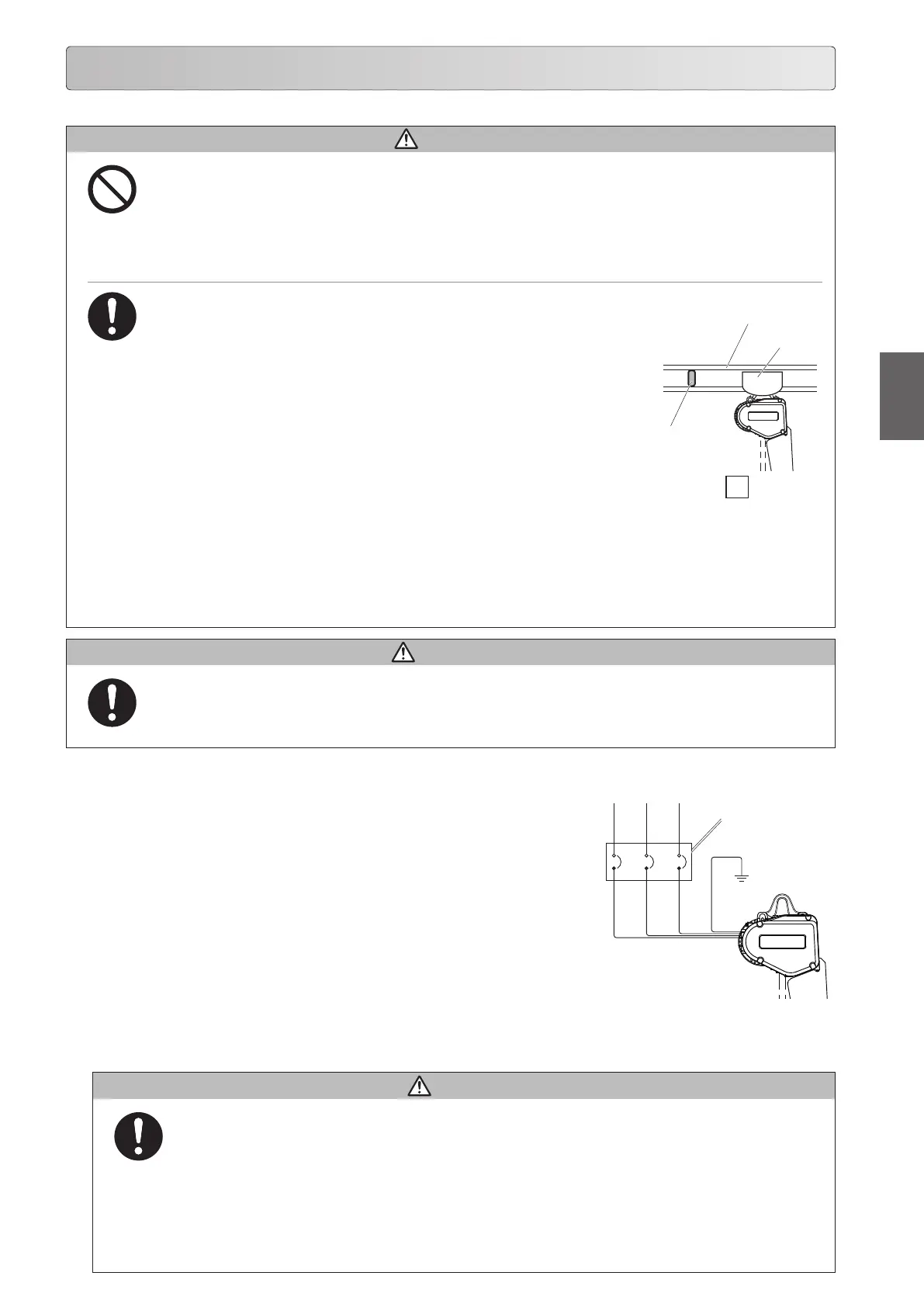

Installation Connecting Power and Power Cables / Installing the Suspended Type (hoist only)
1
Installation
■
Installing the Suspended Type (hoist only)
■
Checking Installation Method and Place
CAUTION
• Connect the Power Cable to the power of rated voltage.
Failure to comply with this instruction causes bodily injury or loss of property.
Mandatory
• Do not install the electric chain hoist at a place exposed to rain or water always or the place different from the
Operational Environment (P17).
• Do not install the electric chain hoist in the motion space of other trolley or any other moving equipment (facility).
• Do not use the electric chain hoist contacting with other object, or being fixed.
Failure to comply with these instructions may result in death or serious injury.
• Installation (removal) of the electric chain hoist must be carried out by special
installer or by personnel with expertise.
Consult with the sales shop or KITO for installation, or consign the installation work to
special installer or personnel with expertise.
• When installing or removing the electric chain hoist, follow the instructions in Owner's Manual.
• Carry out the work for grounding (earthing) and installation of earth leakage
breaker.
These work must be carried out by an electric work specialist.
• When the installation is completed, carry out “Check after Installation". (See P54)
• Connect the power after all installation works have been completed and just
before the oparation check.
• Mount the stopper at the both ends of the travel rail for trolley. <Fig. A>
• Make sure that the strength of the structure is sufficient to install the electric chain hoist.
• Carry out the installation work after securing the stable hoothold.
• Before building the electric chain host into part of your own travel device without using the standard trolley,
contact us for information on precautions.
Failure to comply with these instructions may result in death or serious injury.
Mandatory
Prohibited
A
• When using an electric chain hoist suspended (as a single unit), make sure that the Suspension Eye is
installed and hooked securely.
• Install the electric chain hoist so that the Suspension Eye itself can swing freely. (Make sure not to restrain
the Suspension Eye when in use.)
• Do not install and use the electric chain hoist upside down.
• The diameter of the Suspension Shaft hooked by Suspension Eye should be thinner than 31mm or less.
Refer to the Suspension dimension (P38).
Failure to comply with these instructions may result in death or serious injury.
Mandatory
■
Connecting Power and Power Cable
When connecting the Power Cable to the power, connect the cable in
accordance with the following instructions.
● Connect the electric chain hoist to the power through a breaker.
● Connect the electric chain hoist in the correct phase.
● Earth wire is a green colored covered cable with yellow line. Carry out Class
D earthing work.
● Use correct breaker and Power Cable referring to Checking Power and
Power Cable (P48, 49) for the breaker capacity, Power Cable length and its
size.
DANGER
DANGER
Stopper
Travel rail
Trolley
L1
R-
phase
Red
White
Black
Red
White
Black
Green/Yellow
L2
S-
phas
L3
T-
phase
Breaker
