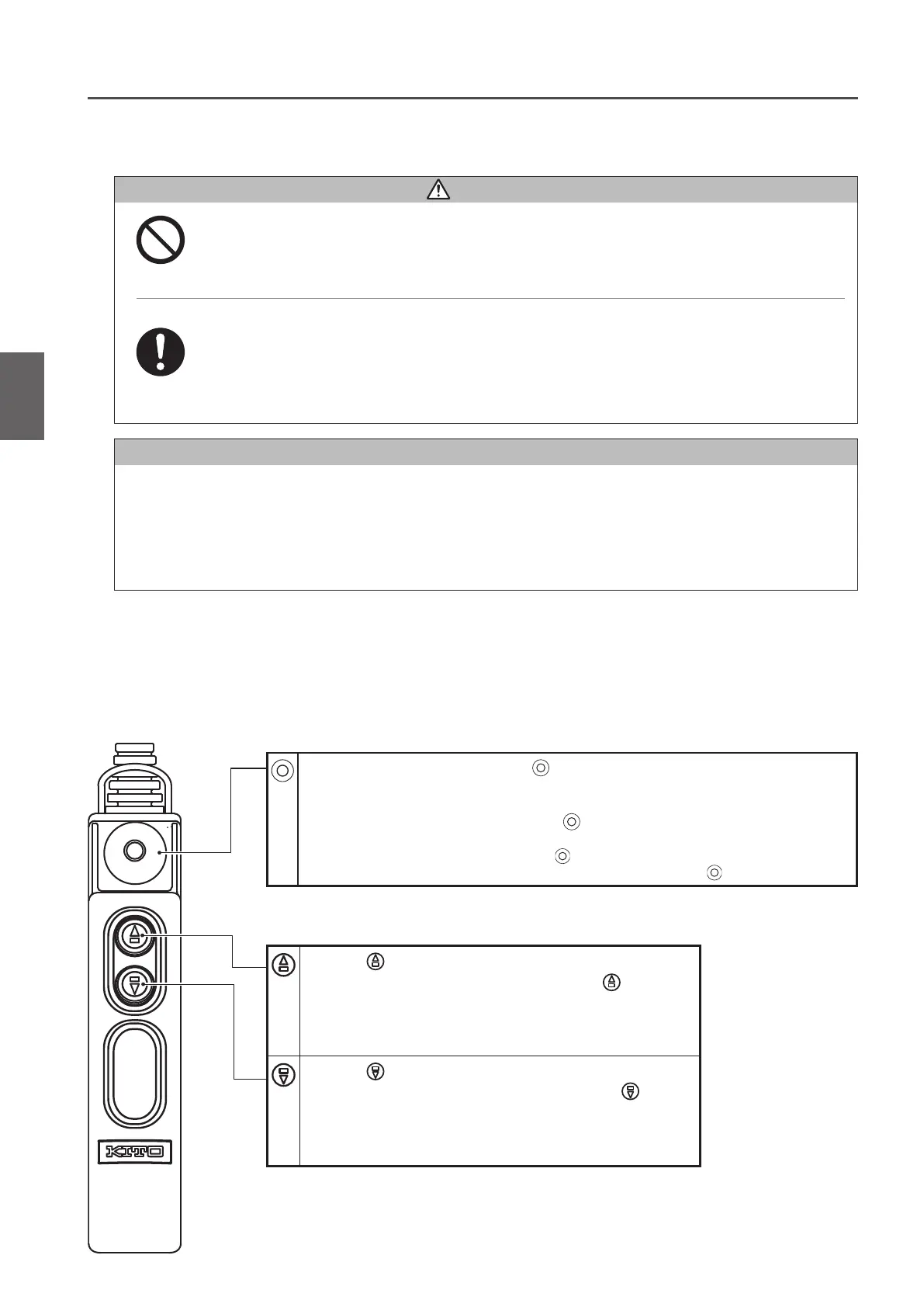

How to Operate the Push Button Switches
Lift/Lower Button
Emergency Stop Button (VFD Reset Button)
Operation Button
1) Press the Emergency Stop Button deeply when carrying out an emergency stop or
VFD reset.
The button is locked at the pressed end.
2) Pull or turn the Emergency Stop Button clockwise to cancel the lock.
Press-locked button returns to the original position.
* Do not pull or turn the Emergency Stop Button hard or excessively.
* When the electric chain hoist is not used, press the Emergency Stop Button deeply to the end.
1) Press button to lift the load.
2) When lifting the load at high speed, press the button
further to the end.
The electric chain hoist stops when the button is released.
1) Press button to lower the load.
2) When lowering the load at high speed, press the button
further to the end.
The electric chain hoist stops when the button is released.
Do not hang the Push Button Switch Cord on other object, or pull the cord strongly.
Do not use the Push Button Switch if its button does not operate smoothly.
Do not bundle or tie the cord for the adjustment of its length.
Failure to comply with this instruction causes bodily injury or loss of property.
CAUTION
When taking hand off the Push Button Switch after operation, do not throw it. Be careful not to hit other
worker with the Push Button Switch.
When starting operation of the hoist after stopping the hoist by pushing the Emergency Stop Button, be
sure to confirm there are no hazards around the workplace before releasing the lock of the Emergency Stop
Button and starting operation.
Failure to comply with this instruction causes bodily injury or loss of property.
Mandatory
Prohibited
3-Push Button Switch Set
3-Push Button Switch Set is equipped with a lock type emergency stop button (VFD reset button) and lift/lower
push buttons. Two-step push button switch is mounted as Lift/lower push button switches in accordance with the
specification of dual speed VFD specification. Refer to the operation method of the corresponding specification.
How to use (continued)
Chapter 1 Handling the Product
NOTE
If the Electric chain hoist is tripped due to overheat of the VFD, the VFD cannot be reset soon after the trip. Reset the VFD after a
while.
Decompression protection circuit operates when the power is shut down due to power outage, etc.
In this case, Electric Chain Hoist does not operate even when the Push Button Switch is pressed after the power supply is
recovered.
To release the halt condition, press the emergency button and reset it.
