Assembling (continued)
Chapter 1 Handling the Product
1
AssemblingAssembling Parts to Electric Chain Hoist
●
Assembling the Chain Container
1) Pass a Socket Bolt through all holes of
the Chain Container, the Body and the
Chain Container, in this order to mount
the Chain Container.
2) Screw the U nut into the Scoket bolt and
tighten it securely.
•
The Socket Bolt must protrude from the end
face of the nut by three threads or more.

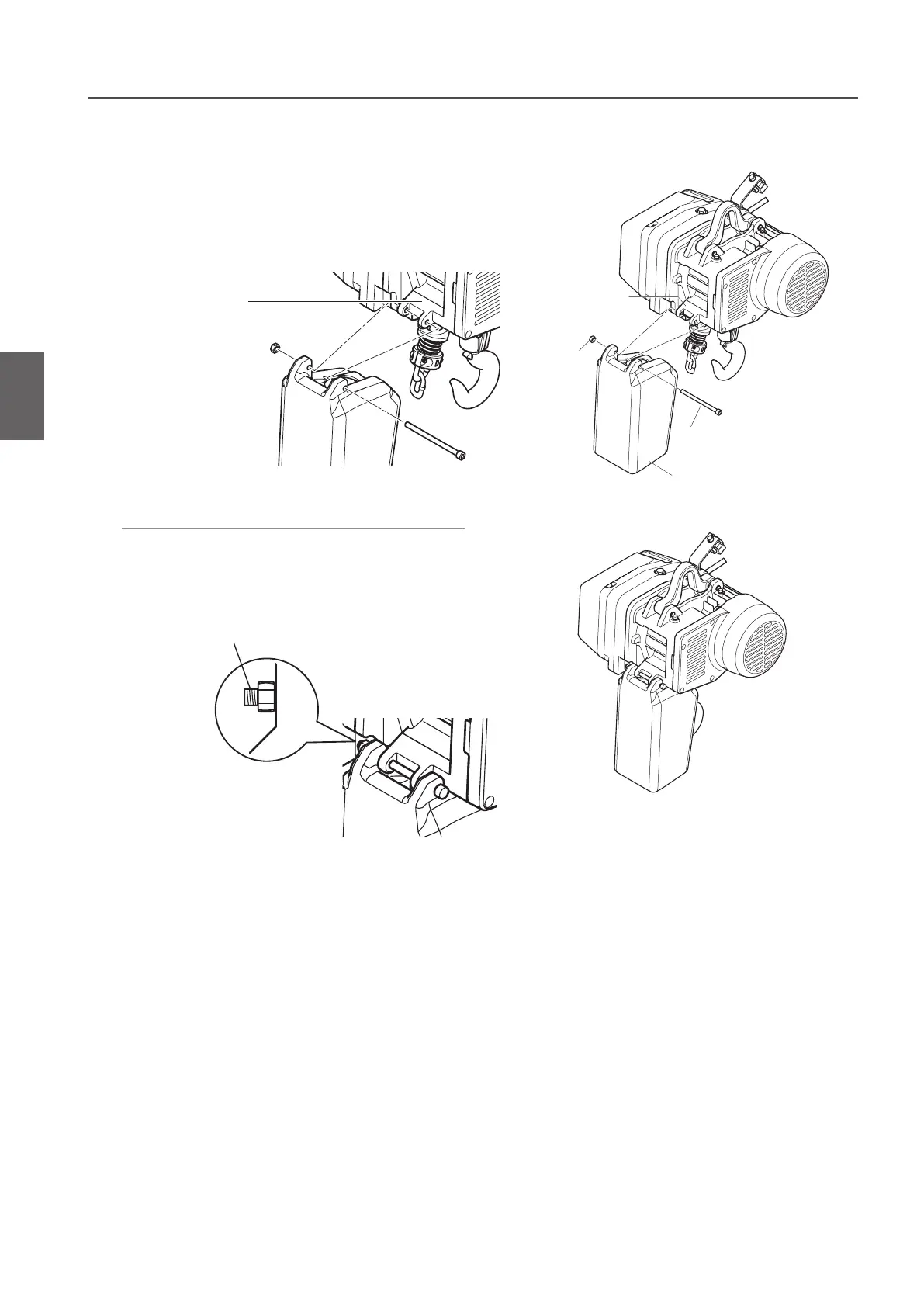

Assembly gure
Name of each part
Body
Three threads or more
Chain Container
Socket Bolt
Body
U nut
To Next Page
