26

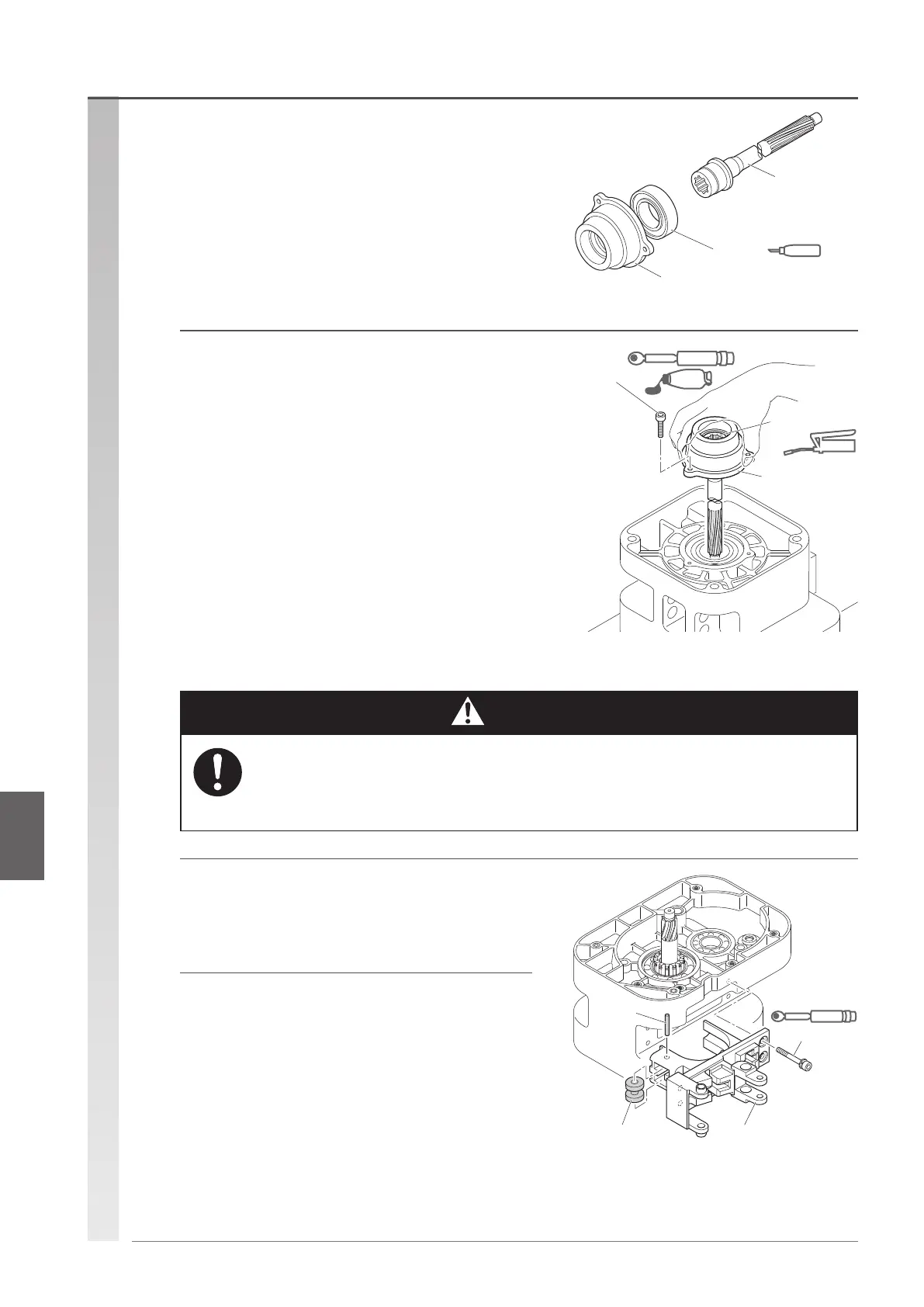

(8) Insert the bearing bearer (integrated with
the pinion) to the body.
•
Make sure there is no gap between the junction faces of
the bearing holder and body.
•
Be careful not to scratch the oil seal with the gear part of
the pinion.
•
Apply screw lock on the 3 socket bolts and tighten them.
•
Apply molybdenum disulde grease Molytherm No.2
lightly and evenly onto the spline part of the pinion.
Molytherm No.2 : 2g
Tightening torque M5 : 8.4 N·m
M6 : 10.8 N·m
(7) Insert the pinion (with the bearing) to the
bearing holder.
•
If it is difcult to insert the pinion, hammer it gently with a
plastic hammer.
Pinion
Bearing
Bearing holder
Oil
Socket
bolt
Bearing
holder
Spline part
Grease
Torque
Lock
• Apply the specified grease on the spline part of the pinion.
Failure to follow this instruction may cause a falling load due to wear or damage of parts
and result in death or severe injury.
(10) Install Chain Guide A to the body with the 4
socket bolts.
•
Tighten the socket bolts at the following torque.
•
Chain Guide B is fastened together for Basic main bodies
B and C.
Tightening torque M6 : 10.8 N·m
M8 : 37.2 N·m
Chain Guide A
Socket bolt
Guide roller
Roller
pin
Torque
(9) Install the guide roller to Chain Guide A with
the roller pin.
•
Guide roller is provided for Basic main bodies D, E, and F.
Reassembly procedure (continued)
Mandatory
Danger
Reassembly procedureAssembling the body
