Manual Trolley Type (ER2SG/ER2SP)
●
ER2SG : The electric chain hoist equipped with the geared trolley (TSG) enabling fine
adjustable lateral motion of the load by pulling the hand chain.
●
ER2SP : The electric chain hoist equipped with the plain trolley (TSP) enabling lateral motion by moving the
load manually. For light work.

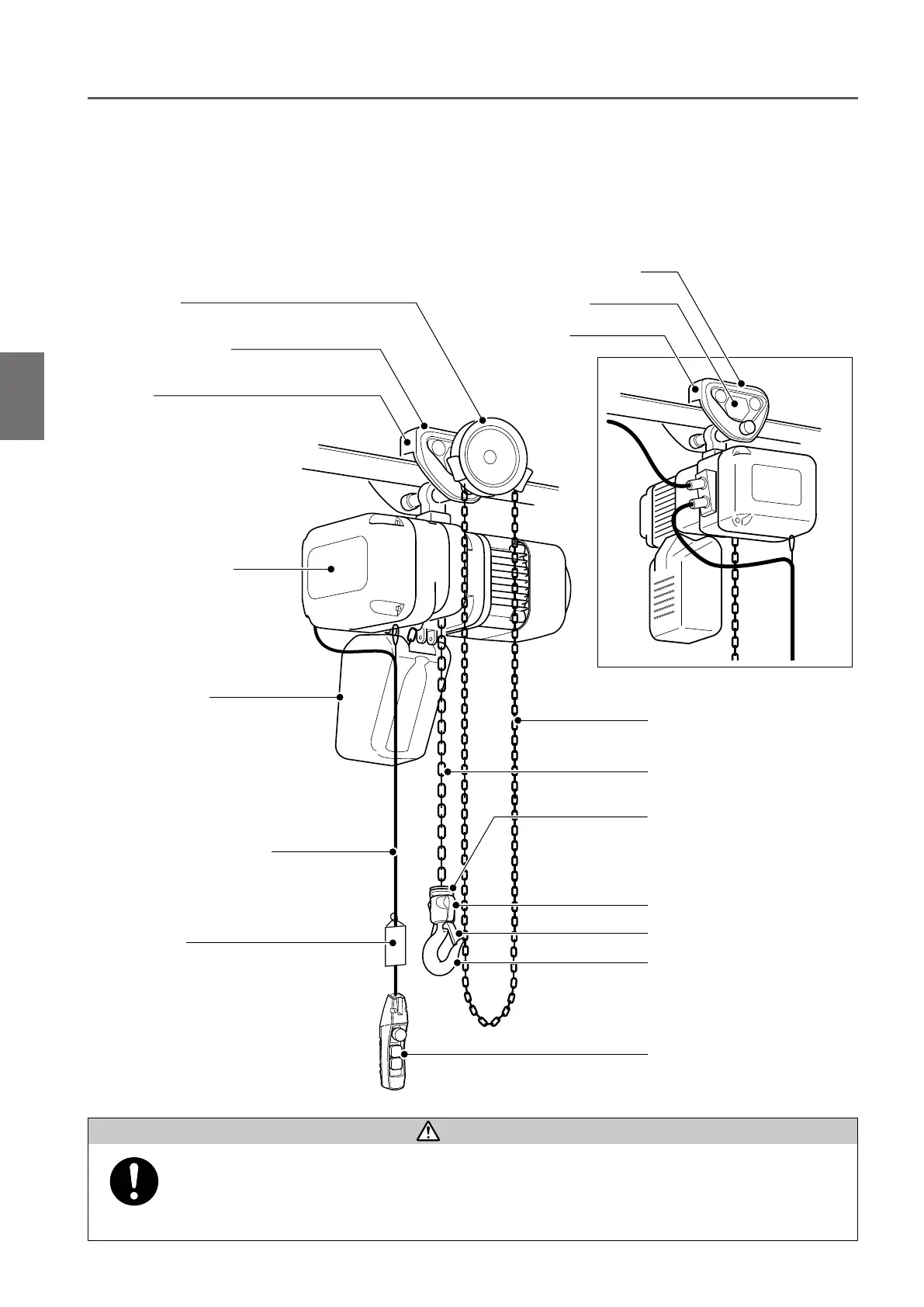

Type and Names of Each Part (continued)
Chapter 1 Handling the Product
Chain Container
Electric chain hoist
nameplate
Push Button Switch Cord
Warning Tag
Load Chain
Cushion Rubber
(Chain Spring and End Plate for the
model of rated load 2 t or more)
Hand Chain
Bottom Yoke
Hook Latch
Bottom Hook
Push Button Switch
Geard Trolley (TSG)
Bumper
Hand Wheel
Nameplate
Plain Trolley (TSP)
Bumper
1
Type and Names of Each PartManual Trolley Type (ER2SG/ER2SP)
Mandatory
• Warning labels are affixed to each part other than above. Be sure to follow the instructions in the label.
Failure to comply with the contents of the label can result in serious bodily injury or death.
