KITO ER2 - Mounting the Stopper

59
Capacity ~2t 2.5t~5t
Beam width 100 125 150 175 125 150 175
Material
dimensions
L-50x50x6 L-50x50x6 L-65x65x8 L-75x75x9 L-50x50x6 L-65x65x8 L-75x75x9
H 80 80 80 80 100 100 100
E 50 50 65 75 50 65 75
F 40 50 65 75 50 65 75
G 50 50 50 50 60 60 60
C 30 30 35 40 30 35 40
K 65 t2+50 t2+50 t2+50 t2+60 t2+60 t2+60
d
14 14 14 14 18 18 18
Bolt size M12x50x50 M12x55x55 M12x55x55 M12x60x60 M16x65x65 M16x65x65 M16x65x65
■

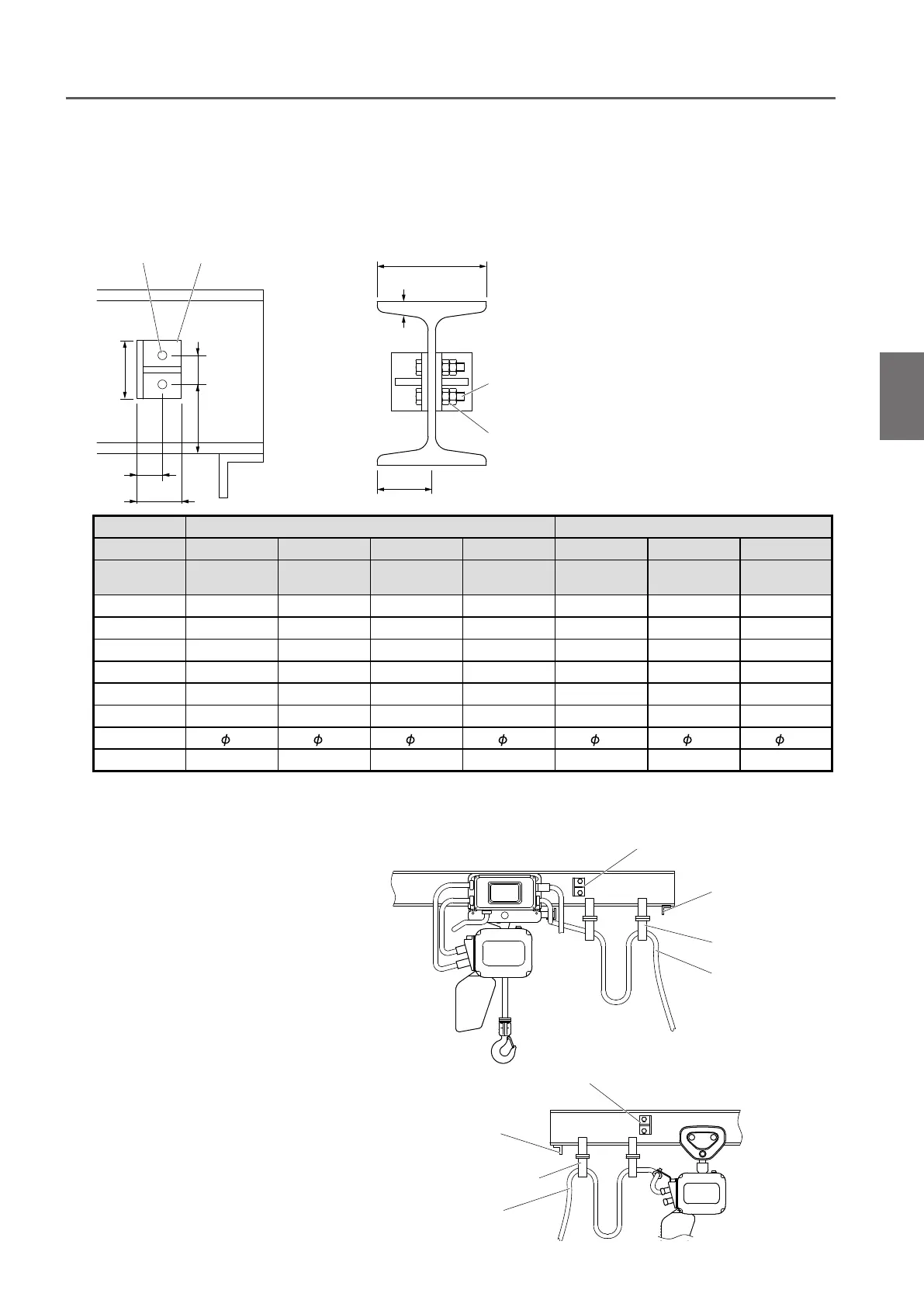

Mounting the Stopper
Be sure to mount the stoppers at the both ends of the rail to prevent drop.
Decide the mounting position in accordance to the size of the wheel.
When the customer wants to make the stopper by oneself, refer to the following figures.
F
H
Beam width
t2
Bolt
G
K
C
E
Stopper
Nuts
(double nuts)
d
●
When using T-shape Suspender
Install the additional stopper for T-shape
Suspender at the end of one rail.
Power Cable
T-shape Suspender
Stopper for
T-shape Suspender
Stopper for Trolley
(Unit: mm)
NOTE) Dimension K is for the case to use combining the hoist with the motorized trolley. When using the hoist
combined with a manual trolley, mount the stopper in accordance with the bumper position.
Power Cable
T-shape Suspender
Stopper for
T-shape Suspender
Stopper for Trolley
(to be continued)
